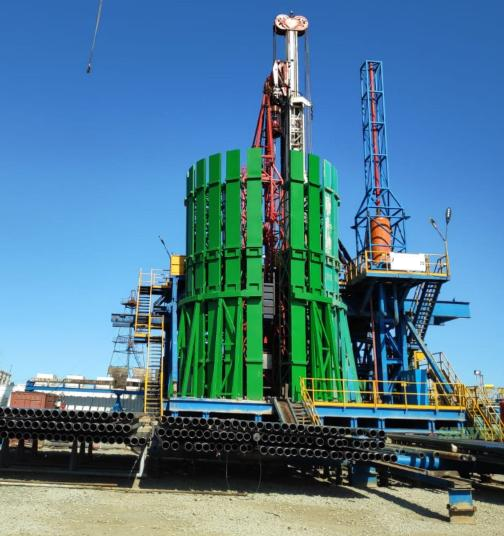

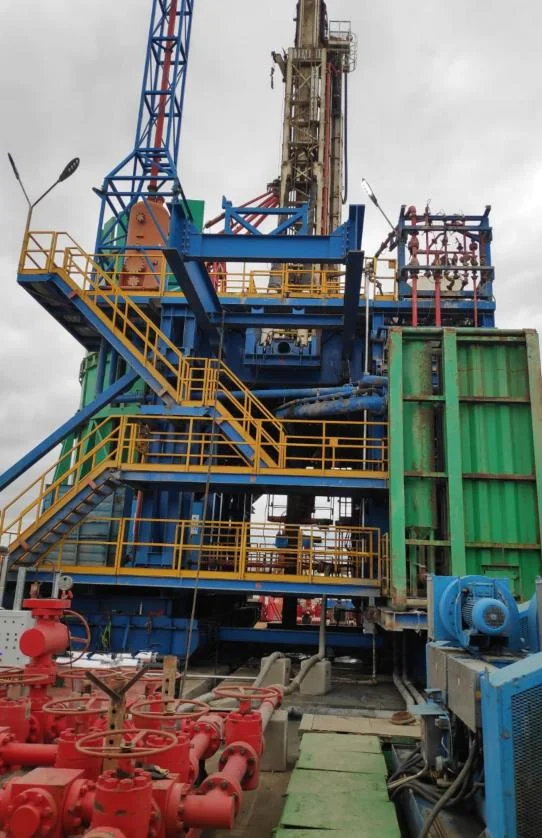

Drillmec HH-300FA 1500 HP Ram Rig (2011)
DrillmecModel:HH-300FA
Houston, TX
Oilfield Drilling Equipment
Qty:1
Condition: Used
At a glance
- Product
- Drillmec HH-300FA 1500 HP Ram Rig (2011)
- Manufacturer
- Drillmec
- Model
- HH-300FA
- Category
- Oilfield Drilling Equipment
- Condition
- USED
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Houston, TX
- Fulfillment
- Pickup and shipping available
- Listed on
Key specifications
- Active Mud Capacity
- 1344bbl
- BOP Annular
- 13â " 5,000 psi
- BOP Double Ram
- 13â " 5,000 psi
- BOP Stack Size
- 13 5/8" 5,000 psi
- BOP System Annular
- 13â " 5,000 psi
- BOP System Double Ram
- 13â " 5,000 psi
- BOP System Single Ram
- N/A
- Drawworks (Ram Rig) Drilling Line
- 1 3/8" (34.9 mm)
- Drawworks (Ram Rig) HP Rating
- 1,500 HP (1,118 kW)
- Drawworks (Ram Rig) Max Line Pull
- 76,435 lbs (34.67 mt)
- Drawworks (Ram Rig) Type
- HH 300 Ram Rig
- Drawworks Drilling Line
- 1 3/8" (34.9 mm)
- Drawworks Horsepower
- 1500HP
- Drawworks HP
- 1,500 HP (1,118 kW)
- Drawworks Max Line Pull
- 76,435 lbs (34.67 mt)
- Drawworks Type
- HH 300 Ram Rig
- Drill Line Diameter
- 1 3/8" (34.9 mm)in
- Drilling Depth Rating
- 14765ft
- General Design Depth
- 14,765 ft w/ 5" DP
- General Hook Load
- 600,000 lbs @ 10 lines
- General Rated HP
- 1,500
- General Recertified
- 2022
- General Type
- Hydraulic Ram Rig HH-300FA
- General Year Built
- 2011
- Generator Capacity
- 1750kVA
- Hook Load Capacity
- 600000ST
- Mast & Substructure Base Height
- 25 ft (7.6 m)
- Mast & Substructure Casing Load
- 600,000 lbs (272 mt)
- Mast & Substructure Hook Load
- 600,000 lbs (272 mt)
- Mast & Substructure Mast Height
- 16.6 m (54.5 ft)
- Mast & Substructure Type
- HH-300 Hydraulic Single-Lift
- Mast Height
- 16.6 m
- Mast Hook Load
- 600,000 lbs (272 mt)
- Mast Type
- HH-300 Hydraulic Single-Lift
- Maximum Pull Strength
- 76435lb
- Mud Pump Power per Unit
- 1600HP
- Mud Pumps Qty
- 2
- Mud Pumps Rating
- 1,600 HP each
- Mud Pumps Standpipe Pressure
- 5,000 psi (345 bar)

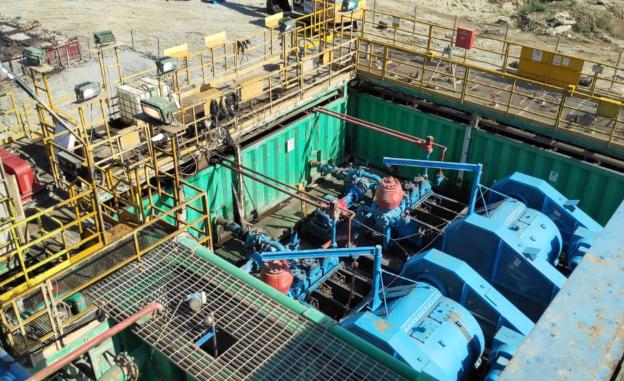

- Mud Pumps Type
- Drillmec 12-T-160 Triplex
- Mud System Active Mud System
- 1,344 bbl (215 m³)
- Mud System Active System
- 1,344 bbl (215 m³)
- Mud System Mud Pumps
- 2Ã Drillmec 12-T-160 Triplex
- Mud System Pump Rating
- 1,600 HP each
- Mud System Reserve System
- 0 bbl
- Mud System Shale Shakers
- 2Ã MI Swaco Mongoose
- Mud System Standpipe Pressure
- 5,000 psi (345 bar)
- Mud System Trip Tank
- 50 bbl (8 m³)
- Power Generation Drive
- Drillmec PCR SCR System
- Power Generation Drive System
- Drillmec PCR SCR Unit
- Power Generation Engine
- MTU 12V4000 G23
- Power Generation Engine Type
- MTU 12V4000 G23
- Power Generation Generator
- LS LSA51.2 1,750 kVA each
- Power Generation Generators
- 3Ã LS LSA51.2, 1,750 kVA
- Power Generation Qty / Rating
- 3Ã 1,500 HP @ 1,800 RPM
- Power Generation Voltage
- 600/460 V, 50 Hz
- Pressure Limits Max
- 5000PSIG
- Rotary Table Opening
- 27½"
- Rotary Table Size
- 27 1/2"in
- Rotary Table Type
- Drillmec
- Substructure Height
- 25ft
- Top Drive Capacity
- 600,000 lbs (272 mt)
- Top Drive Hookload Capacity
- 600000lb
- Top Drive Max Torque
- 36200ft-lb
- Top Drive Pipe Handling
- Full Auto Make-Up System
- Top Drive Torque
- 36,200 ft-lbs @ 90 RPM
- Top Drive Type
- Drillmec HH275
Supporting evidence
No supporting documents or certifications provided.
Description
Drillmec HH-300FA hydraulic single-lift ram rig built 2011 and recertified 2022. Rated 1,500 HP with 600,000-lb hook load at 10 lines and 14,765-ft design depth. Features Drillmec HH275 top drive (600K lb capacity, 36,200 ft-lb torque), full-auto pipe handling and make-up system, two Drillmec 12-T-160 triplex mud pumps at 1,600 HP each, and three MTU 12V4000 gensets at 1,500 HP each. MI Swaco Mongoose shale shakers and 1,344-bbl active mud system.
