Westinghouse IQ Data Plus II Operator Interface Module 2D78522G01
WestinghouseModel:2D78522G01
Location unavailable
Monitoring & Instrumentation
Qty:1
Condition: New
At a glance
- Product
- Westinghouse IQ Data Plus II Operator Interface Module 2D78522G01
- Manufacturer
- Westinghouse
- Model
- 2D78522G01
- Category
- Monitoring & Instrumentation
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Motor Control Center
- Listed on
Key specifications
- Communication Ports
- RS-485, Pulse Outputs
- Current Input
- 5 A nominal (via CT)A
- Frequency Max
- 65kHz
- Frequency Min
- 45Hz
- Input Voltage Min
- 0V AC
- Max Voltage
- 600V DC
- Number of Relay Outputs
- 3
- Operating Temperature Range Max
- 60°C
- Operating Temperature Range Min
- -20°C
- Power Supply
- 120/240 VAC
- Reference Accuracy
- +/- 0.5% of reading
Supporting evidence
No supporting documents or certifications provided.
Description

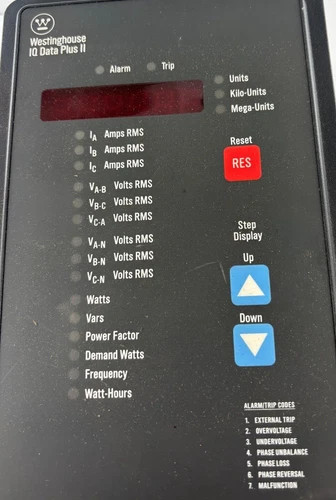

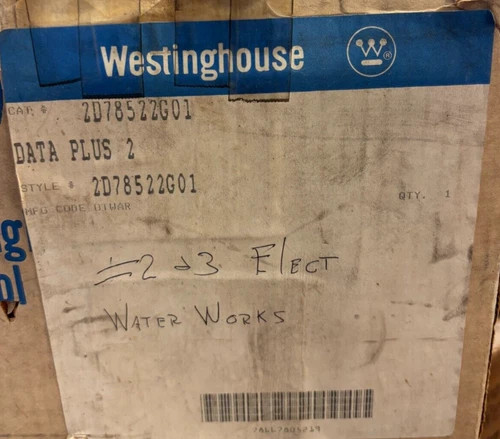

The Westinghouse IQ Data Plus II (style 2D78522G01) is a sophisticated multifunction power monitoring device designed for industrial and commercial electrical systems. It provides real-time monitoring of key electrical parameters including voltage, current, power, energy consumption, power factor, and frequency, with built-in alarm and trip functions for enhanced system protection. This module features a user-friendly digital display and interface for easy navigation through measurements like RMS amps, volts, watts, vars, demand, and watt-hours. Ideal for applications in water works, manufacturing plants, and utility substations, it supports integration with SCADA systems via pulse outputs and relays. Benefits include high accuracy in power quality analysis, reducing downtime through predictive maintenance, and compatibility with legacy Westinghouse systems (now under Eaton). Compared to similar products like modern ABB or Siemens meters, it offers cost-effective retrofitting for older installations but may lack advanced IoT connectivity. Drawbacks include limited modern communication protocols without upgrades. The unit appears brand new based on packaging and images, with no visible wear, and includes fuse holders and terminal blocks for easy installation. For detailed specs, refer to Eaton's archived datasheets (e.g., search 'Eaton IQ Data Plus II datasheet PDF' for official manual).
Location unavailable for this listing.
