Wiltronics BM-B-816-154B Industrial Replacement PC Circuit Board
WiltronicsModel:BM-B-816-154B
Location unavailable
Electrical Equipment
Qty:1
Condition: New
At a glance
- Product
- Wiltronics BM-B-816-154B Industrial Replacement PC Circuit Board
- Manufacturer
- Wiltronics
- Model
- BM-B-816-154B
- Category
- Electrical Equipment
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Motor Control Center
- Listed on
Key specifications
- Component Count
- 20
- Connector Type
- Gold-plated edge connector with 10 pins
- Fuse Rating
- 5A
- Operating Temperature Max
- 60°F
- Operating Temperature Min
- -10°F
- Voltage Rating
- 24V
Supporting evidence
No supporting documents or certifications provided.
Description

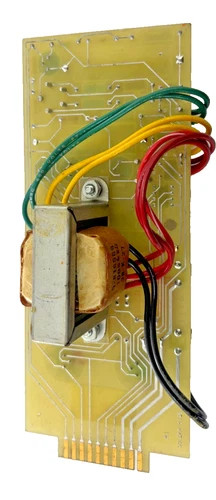

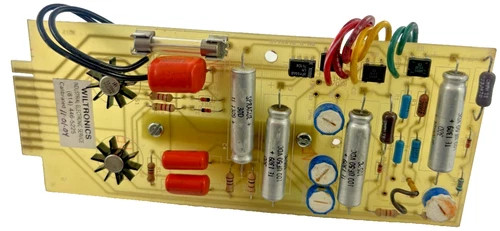

The Wiltronics BM-B-816-154B is a specialized printed circuit board (PCB) designed as a replacement component for industrial electronic systems, likely used in test and measurement equipment or control systems from the Wiltron/Anritsu lineage. This board features a compact design with analog circuitry, including capacitors, resistors, fuses, a transformer, and multi-colored wiring for easy integration. It serves applications in signal processing, power regulation, or instrumentation repair, offering reliability in harsh industrial environments. Key benefits include cost-effective replacement over OEM parts, compatibility with legacy Wiltron systems, and robust construction for extended service life. Drawbacks may include limited availability of documentation and potential need for custom calibration. Compared to modern digital boards, it provides advantages in simplicity and durability for analog-based setups, reducing downtime in maintenance scenarios. Ideal for electronics repair services, manufacturing facilities, or vintage equipment restoration, this PCB ensures seamless functionality with minimal modifications.
