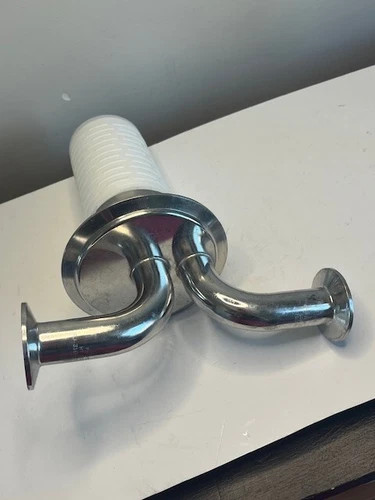

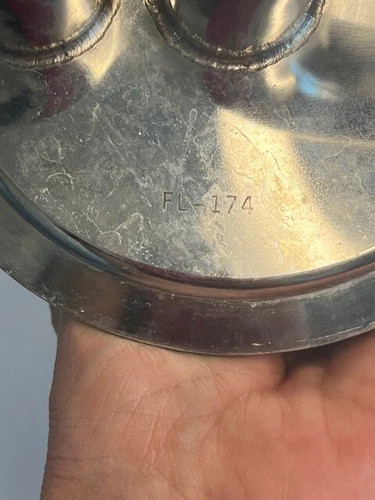

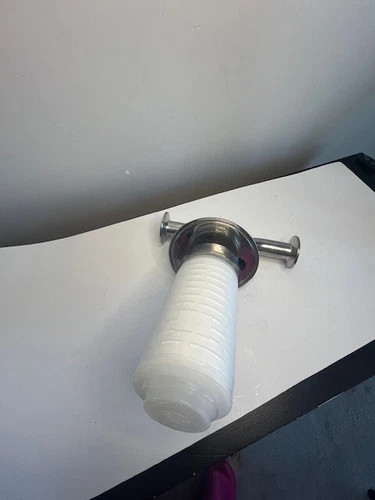

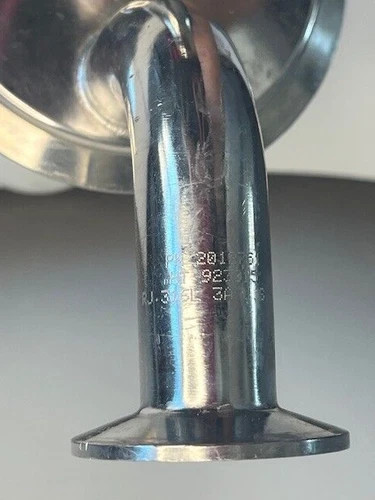

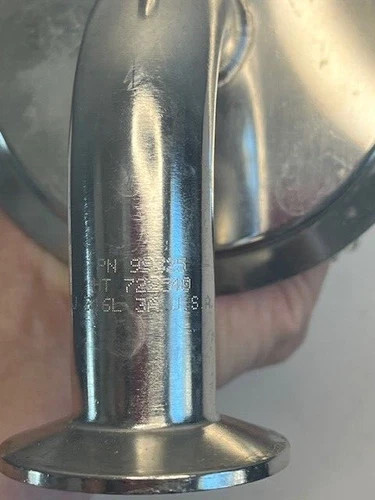

Pall AB05V0022PV Sanitary Filter Capsule with FL-174 Stainless Steel Head
Pall CorporationModel:AB05V0022PV
Location unavailable
Filtration Equipment
Qty:1
Condition: New
At a glance
- Product
- Pall AB05V0022PV Sanitary Filter Capsule with FL-174 Stainless Steel Head
- Manufacturer
- Pall Corporation
- Model
- AB05V0022PV
- Category
- Filtration Equipment
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Controlview Automation
- Listed on
Key specifications
- Connection Type
- 1.5-inch Tri-Clamp
- Filter Rating
- 0.2µm
- Flow Rate
- 50GPM
- Housing Material
- AISI 316L Stainless Steel
- Maximum Operating Pressure
- 80bar
- Maximum Operating Temperature
- 135
- Membrane Material
- PVDF (Polyvinylidene Fluoride)
- Sanitary Standard Compliance
- 3A, USP Class VI, FDA Compliant
Supporting evidence
No supporting documents or certifications provided.
Description
The Pall AB05V0022PV is a high-performance sanitary filter capsule designed for critical filtration applications in pharmaceutical, biotechnology, food and beverage, and other hygienic industries. This compact 5-inch filter features a pleated PVDF (polyvinylidene fluoride) membrane with a 0.2 micron absolute retention rating, providing excellent particle removal, microbial retention, and sterility assurance for venting, gas filtration, or small-batch liquid processing. The filter is paired with an FL-174 stainless steel head, constructed from AISI 316L stainless steel meeting 3A sanitary standards, ensuring compatibility with clean-in-place (CIP) and steam-in-place (SIP) processes. Key benefits include high flow rates, low pressure drop, and superior chemical resistance, making it ideal for aggressive media and high-purity environments. Compared to similar products like those from Sartorius or Millipore, the Pall AB05 offers better thermal stability (up to 135°C) and longer service life due to its robust pleated design. Drawbacks may include higher initial cost and the need for specific tri-clamp connections. The unit is new, with no visible wear, and includes tri-clamp fittings for easy integration into existing systems. Applications range from sterile air venting in fermenters to pre-filtration in bioprocessing. For detailed model decoding, refer to Pall's product guides.
