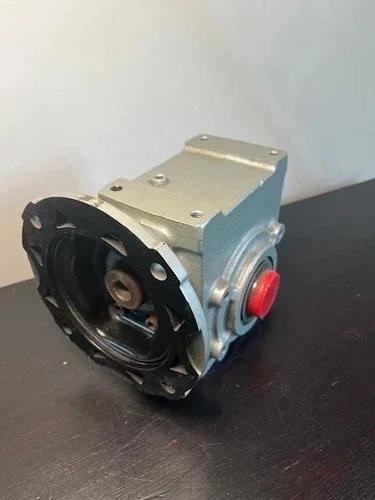

Dodge Tigear-2 20QZ40H56 Right Angle Worm Gear Reducer 40:1 Ratio
Dodge (ABB/Baldor)Model:20QZ40H56
Location unavailable
Reducers
Qty:1
Condition: New
At a glance
- Product
- Dodge Tigear-2 20QZ40H56 Right Angle Worm Gear Reducer 40:1 Ratio
- Manufacturer
- Dodge (ABB/Baldor)
- Model
- 20QZ40H56
- Category
- Reducers
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Controlview Automation
- Listed on
Key specifications
- Center Distance
- 2in
- Efficiency
- 80%
- Gear Ratio
- 40:1
- Housing Material
- Cast Iron
- Input Type
- Quill (C-Face for 56C motor frame)
- Maximum Input Horsepower
- 1.5HP
- Maximum Output Torque
- 801ft-lb
- Mounting Positions
- Multiple (floor, wall, ceiling)
- Output Type
- Hollow Shaft
Supporting evidence
No supporting documents or certifications provided.
Description
The Dodge Tigear-2 20QZ40H56 is a high-performance right-angle worm gear reducer designed for industrial applications requiring efficient power transmission and torque multiplication. Manufactured by Dodge (a brand under ABB), this model features a 40:1 gear ratio, quill input for 56C-frame motors, and a hollow output shaft, making it ideal for conveyor systems, mixers, and material handling equipment. It offers superior efficiency with up to 98% per stage, reduced backlash, and a compact design that saves space compared to traditional gear reducers. Benefits include high torque capacity, quiet operation due to precision-ground worms, and durability in harsh environments with cast iron housing and synthetic lubrication. Drawbacks may include higher initial cost and the need for proper alignment to prevent wear. Compared to similar products like Boston Gear or SEW-Eurodrive reducers, the Tigear-2 excels in modularity and ease of maintenance, with options for various mounting positions. This unit appears new based on images, with no visible wear, and includes a faceplate indicating max torque outputs for different HP ranges. Applications span food processing, packaging, and automation where reliable speed reduction is critical.
