Davis 1500E Drilling Rig 11
DavisModel:1500E
Houston, TX
Oilfield Drilling Equipment
Qty:1
Condition: Used
At a glance
- Product
- Davis 1500E Drilling Rig 11
- Manufacturer
- Davis
- Model
- 1500E
- Category
- Oilfield Drilling Equipment
- Condition
- USED
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Houston, TX
- Fulfillment
- Pickup and shipping available
- Listed on
Key specifications
- Active Mud Capacity
- 750bbl
- BOP Configuration
- 13⅝" Hydril, 5,000 psi
- BOP Stack Annular
- 13â " Hydril 5,000 psi
- BOP Stack Choke Manifold
- 10,000 psi 4â ââ" Ã 3", 2Ã adjustable 3â ââ" chokes
- BOP Stack Closing Unit
- CAD Type M, 6-station, 20Ã11-gal bottles, 150 gal reserve
- BOP Stack Double Rams
- Shaffer 13â " 10,000 psi
- BOP Stack Single Ram
- Shaffer 13â " 10,000 psi
- Derrick & Mast Casing Capacity
- 768,000 lbs
- Derrick & Mast Derrick
- Superior 142â² Cantilever Mast
- Derrick & Mast Rotary Beam Clearance
- 21â²
- Derrick & Mast Setback Capacity
- 500,000 lbs
- Derrick & Mast Static Hook Load
- 768,000 lbs
- Derrick & Mast Substructure Height
- 25â² Box on Box
- Derrick Casing Capacity
- 768,000 lbs
- Derrick Rotary Beam Clearance
- 21â²
- Derrick Setback Capacity
- 500,000 lbs
- Derrick Static Hook Load
- 768,000 lbs
- Derrick Substructure
- 25â² Box on Box Type
- Derrick Type
- Superior 142â² Cantilever Mast
- Drawworks & Power Aux Brake
- WPT 235 Electric
- Drawworks & Power Drawworks
- Davis 1500-E (National 110 UE copy)
- Drawworks & Power Drill Line
- Grooved for 1â "
- Drawworks & Power Motors
- 2Ã GE 752 DC
- Drawworks & Power Power
- 3Ã Caterpillar 3512C / 1,365 kW
- Drawworks & Power SCR House
- Ross Hill Type 3Ã4 bay
- Drawworks Aux Brake
- WPT 235 Electric
- Drawworks DC Motors
- 2Ã GE 752
- Drawworks Drill Line
- 1â "
- Drawworks Model
- Davis 1500-E (National 110 UE copy)
- Drawworks Motors
- 2× GE 752 DC
- Drill String Drill Collars
- 6"â6½" OD NC44
- Drill String Drill Pipe
- 4½" S-135/G-105, 16.60 NC46 X-Hole Hardband
- Drill String Pipe Spinner
- J29 Varco Chain Type
- Mast Height
- 142ft
- Mud Pump Specs
- 2× 3-F-1600 Triplex (7½" × 12")
- Other Equipment Crown Block
- Superior 7Ã 48" sheaves
- Other Equipment Degasser
- Derrick Drilco type
- Other Equipment Desander
- Derrick 2Ã 12" cones
- Other Equipment Desilter
- Derrick 12Ã 4" cones
- Other Equipment Drill Water Tank
- 498 BBL
- Other Equipment Fuel Tank
- 15,000 gal with lubester
- Other Equipment Mud Tanks
- 750 BBL 2-tank + 105 BBL slug
- Other Equipment Rotary Table
- 27½" à 53¼"
- Other Equipment Shakers
- 3Ã Derrick 503 Linear Motion
- Other Equipment Top Drive
- 350-ton Warrior Hydraulic, 7,500 psi circ
- Other Equipment Traveling Block
- NOV 500-ton
- Other Equipment Trip Tank
- 50 BBL
- Other Equipment Walking System
- Columbia In-Sub with HPU
- Other Equipment Wireline Unit
- .092 line
- Power Generation Engines
- 3× Caterpillar 3512C / 1,365 kW each
- Power Generator Output
- 1,365 kW each
- Power Prime Movers
- 3Ã Caterpillar 3512C
- Power SCR House
- Ross Hill Type 3Ã4 bay
- Pumps & Fluid System Drill Water Tank
- 498 BBL
- Pumps & Fluid System Drive
- 2Ã GE 752 DC Motors each
- Pumps & Fluid System Mud Pumps
- 2à 3-F-1600 Triplex (7½" à 12")
- Pumps & Fluid System Mud Tanks
- 750 BBL 2-tank round bottom
- Pumps & Fluid System Slug Tank
- 105 BBL
- Pumps & Fluid System Working Pressure
- 7,500 psi
- Pumps LP Mixing
- 2Ã 6" Ã 5" Ã 11" Centrifugal / 40 HP
- Pumps Motors
- 2Ã GE 752 DC each
- Pumps Mud Pumps
- 2à 3-F-1600 Triplex 7½" à 12"
- Pumps Working Pressure
- 7,500 psi
- Rated Power (Normal Duty)
- 1500kW
- SCR House Configuration
- Ross Hill Type 3×4 bay
- Setback Load
- 500000lbf
- Static Hook Load
- 768000lb
- Substructure Height
- 25ft
- Top Drive Model and Capacity
- 350-ton Warrior Hydraulic, 7,500 psi circ
- Working Pressure Rating
- 7500psi
Supporting evidence
No supporting documents or certifications provided.
Description

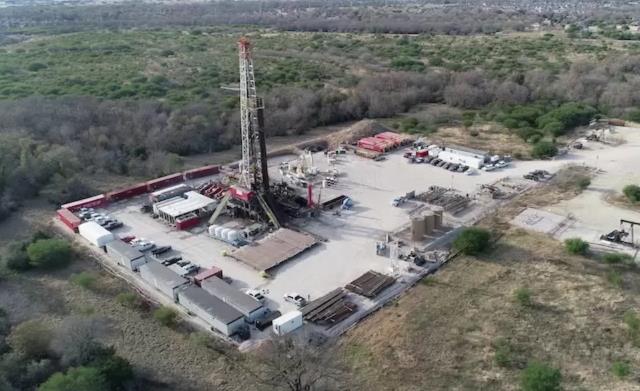

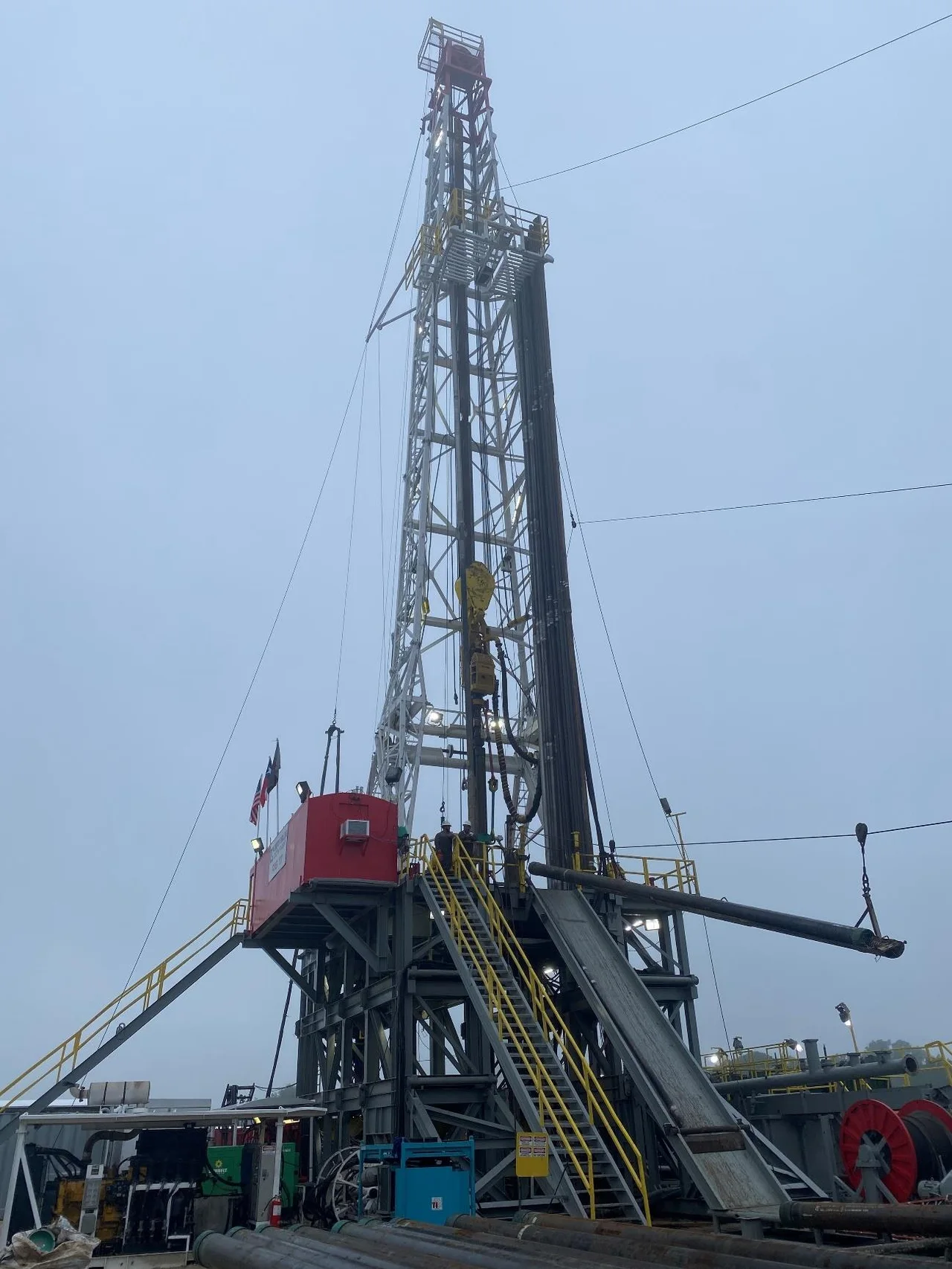

Rig 11 is a complete 1,500 HP Davis 1500-E drilling package powered by three Caterpillar 3512C generators (1,365 kW each) through a Ross Hill 3Ã4 bay SCR house. The 142-foot Superior cantilever mast carries a 768,000-pound static hook load and is fitted with a 350-ton Warrior hydraulic top drive and Columbia In-Sub walking system. Twin 3-F-1600 triplex pumps deliver 7,500 psi, and a comprehensive BOP stack with 13â
" annular and dual ram preventers rounds out this capable land drilling package.
