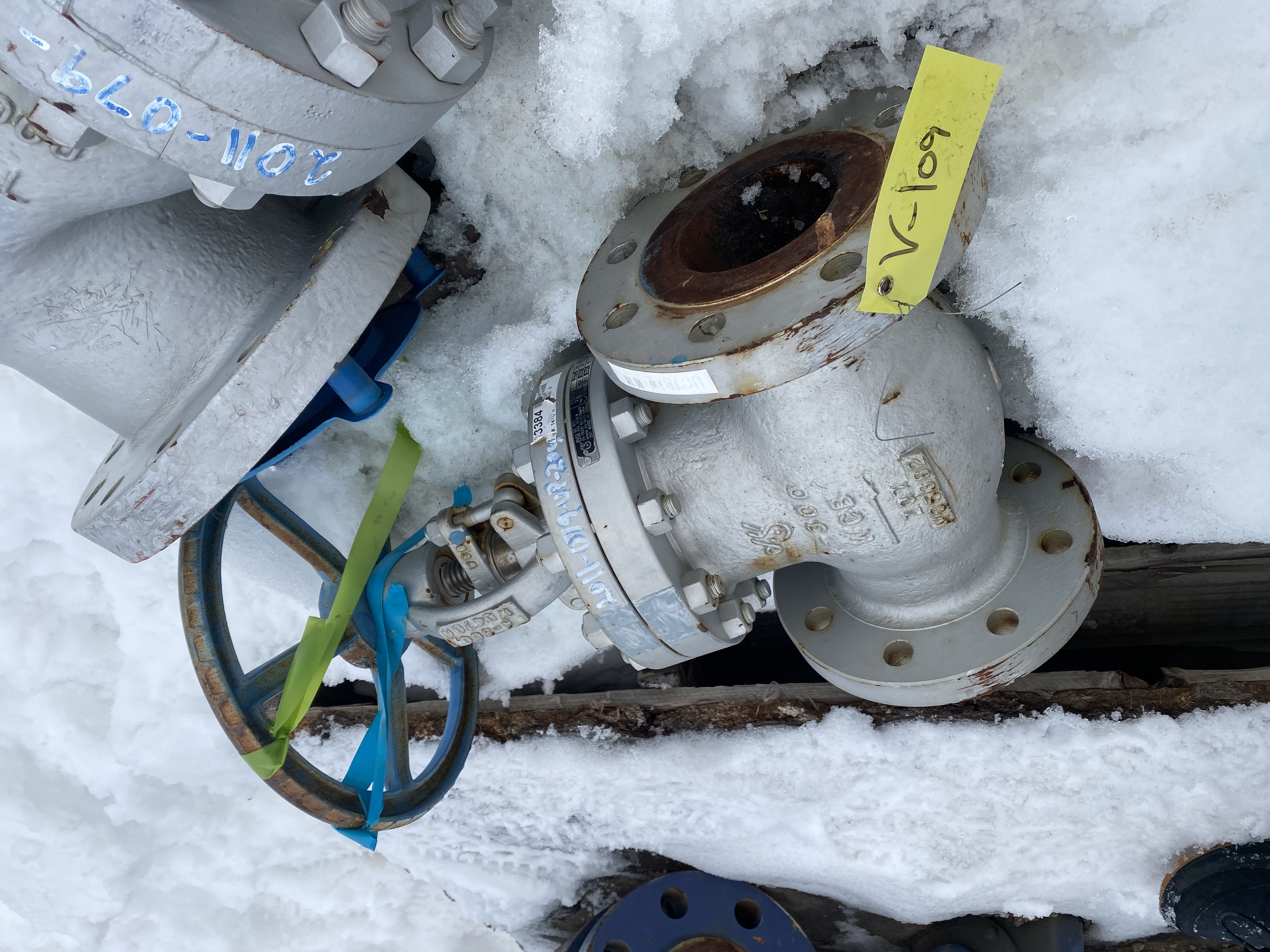

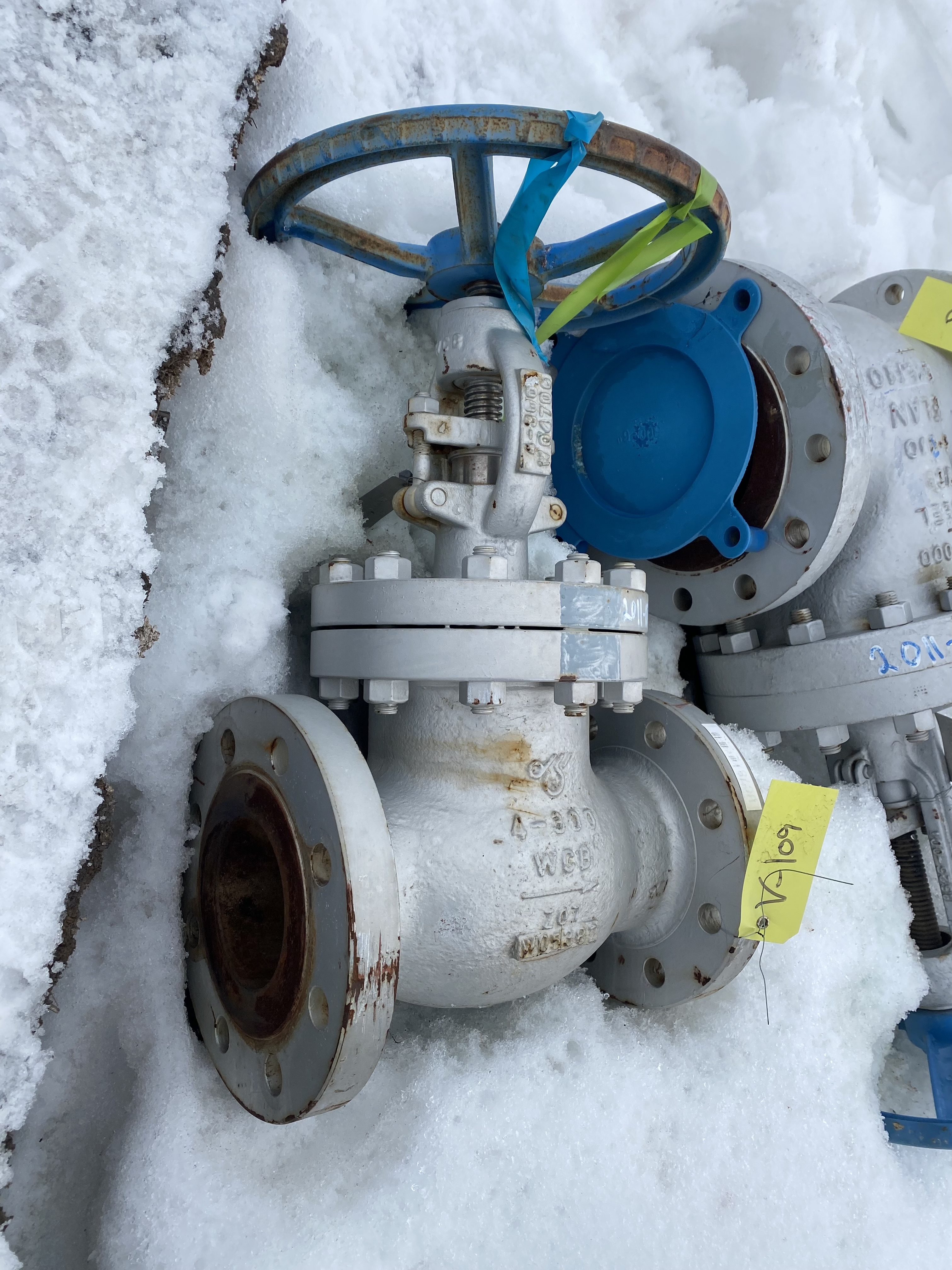

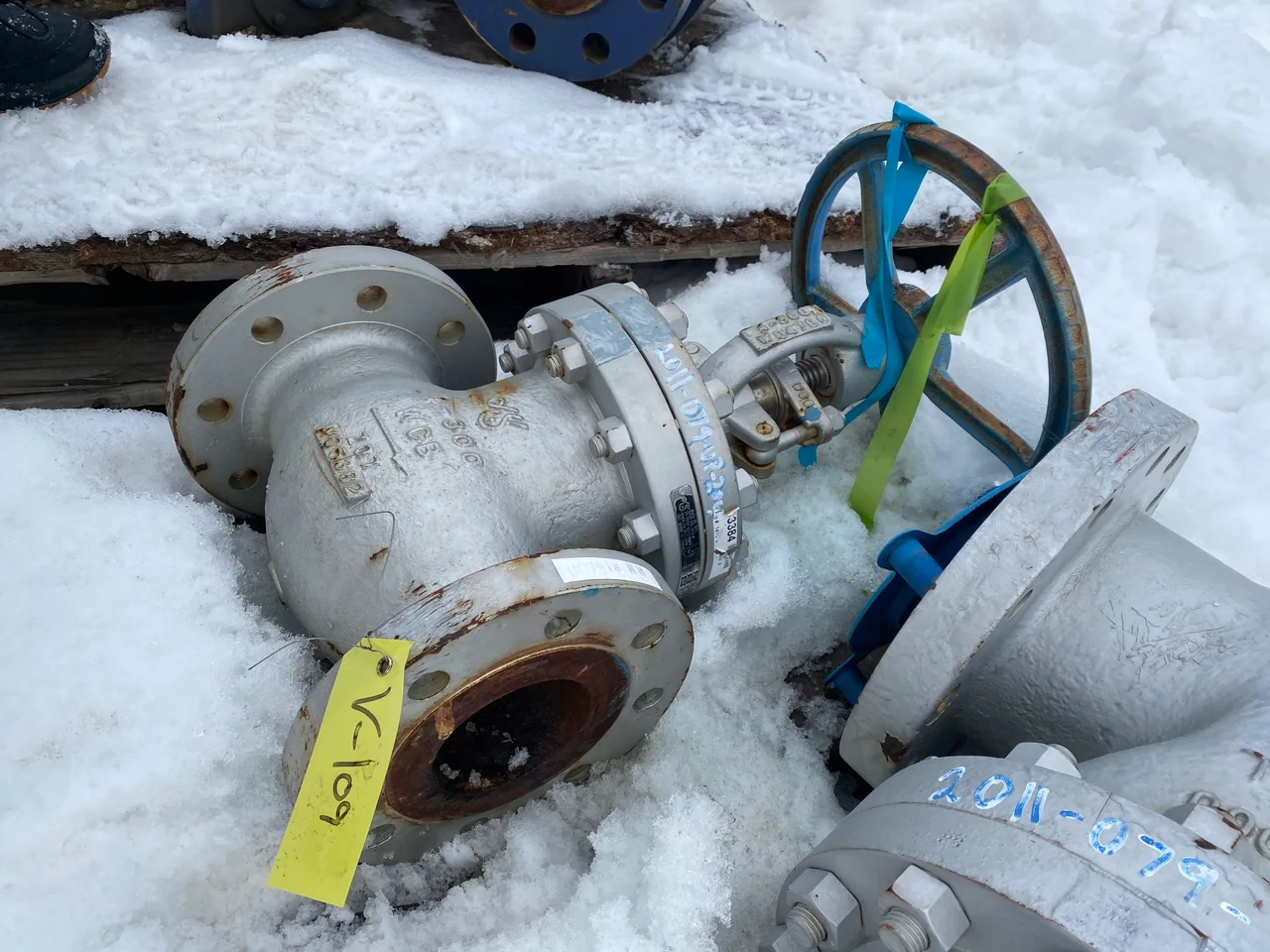

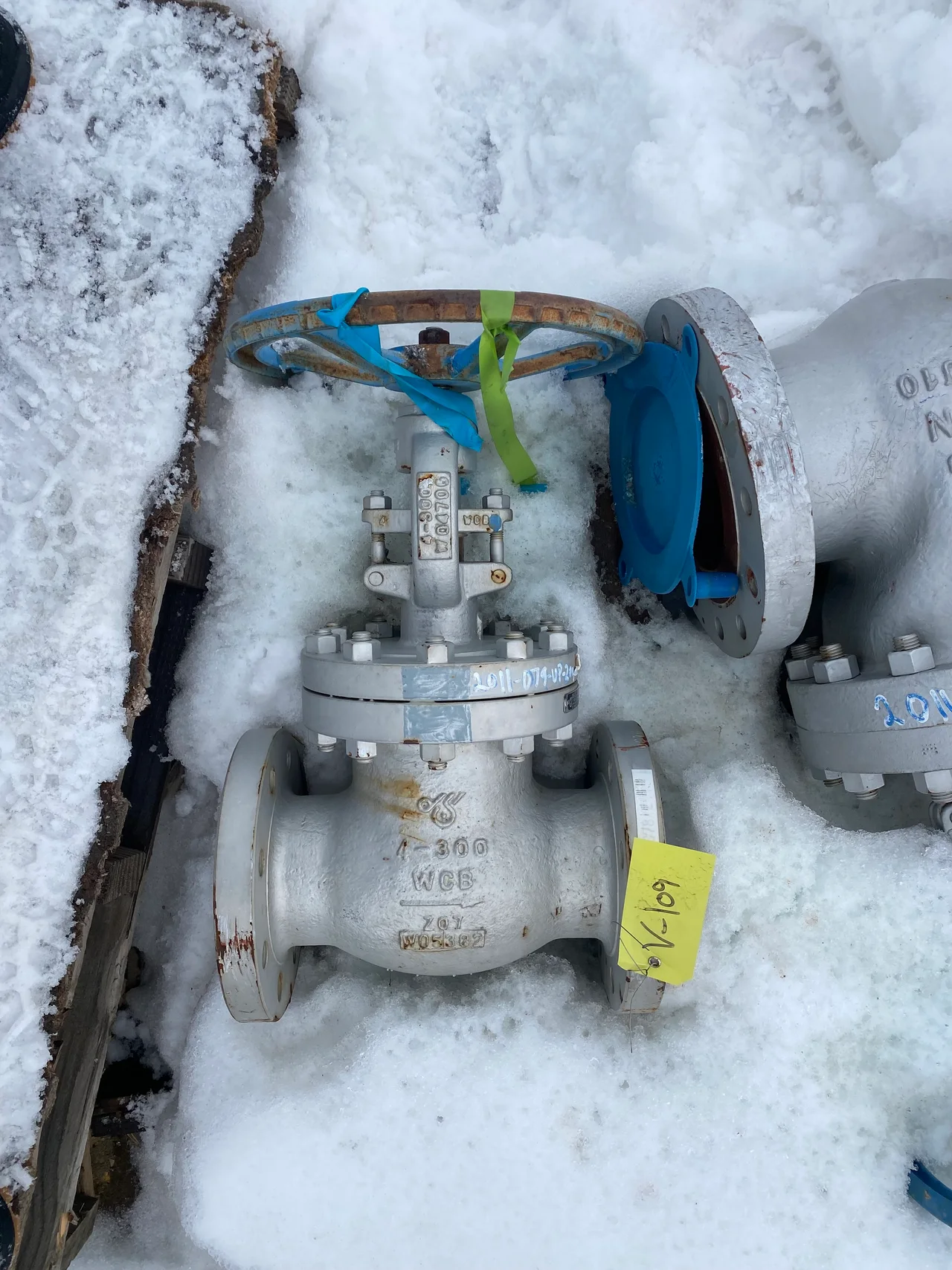

ZY-Tech FIG 141U-N 4 Inch Class 300 Cast Steel Globe Valve
Zy-Tech Global IndustriesModel:FIG 141U-N
Red Deer, AB
Globe Valve
Qty:1
Condition: New
At a glance
- Product
- ZY-Tech FIG 141U-N 4 Inch Class 300 Cast Steel Globe Valve
- Manufacturer
- Zy-Tech Global Industries
- Model
- FIG 141U-N
- Category
- Globe Valve
- Condition
- NEW
- Availability
- In stock
- Price or process
- Make an offer
- Quantity
- 1
- Lead time
- Not provided
- Location
- Red Deer, AB
- Fulfillment
- Pickup and shipping available
- Seller
- OTG
- Listed on

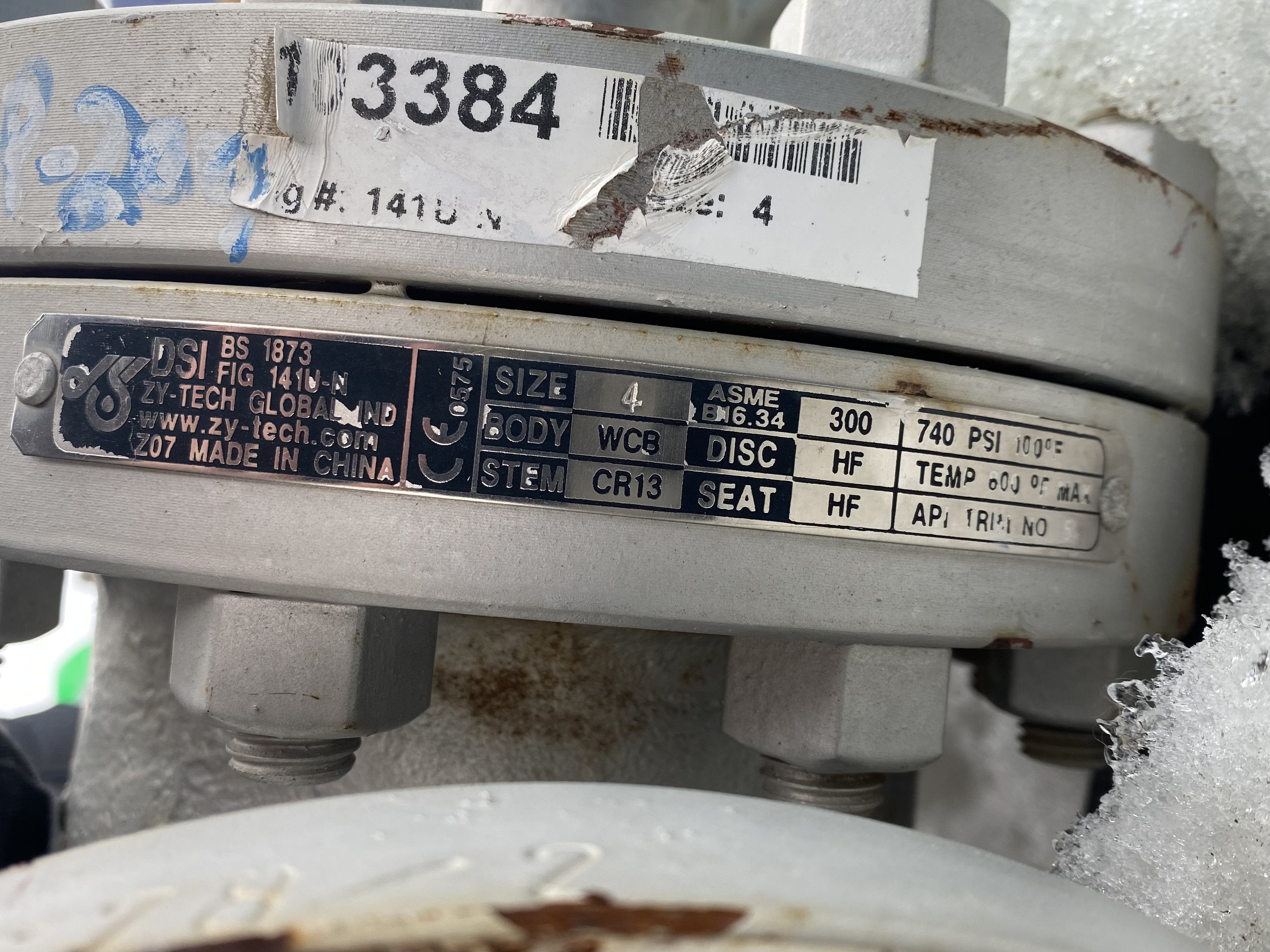

Key specifications

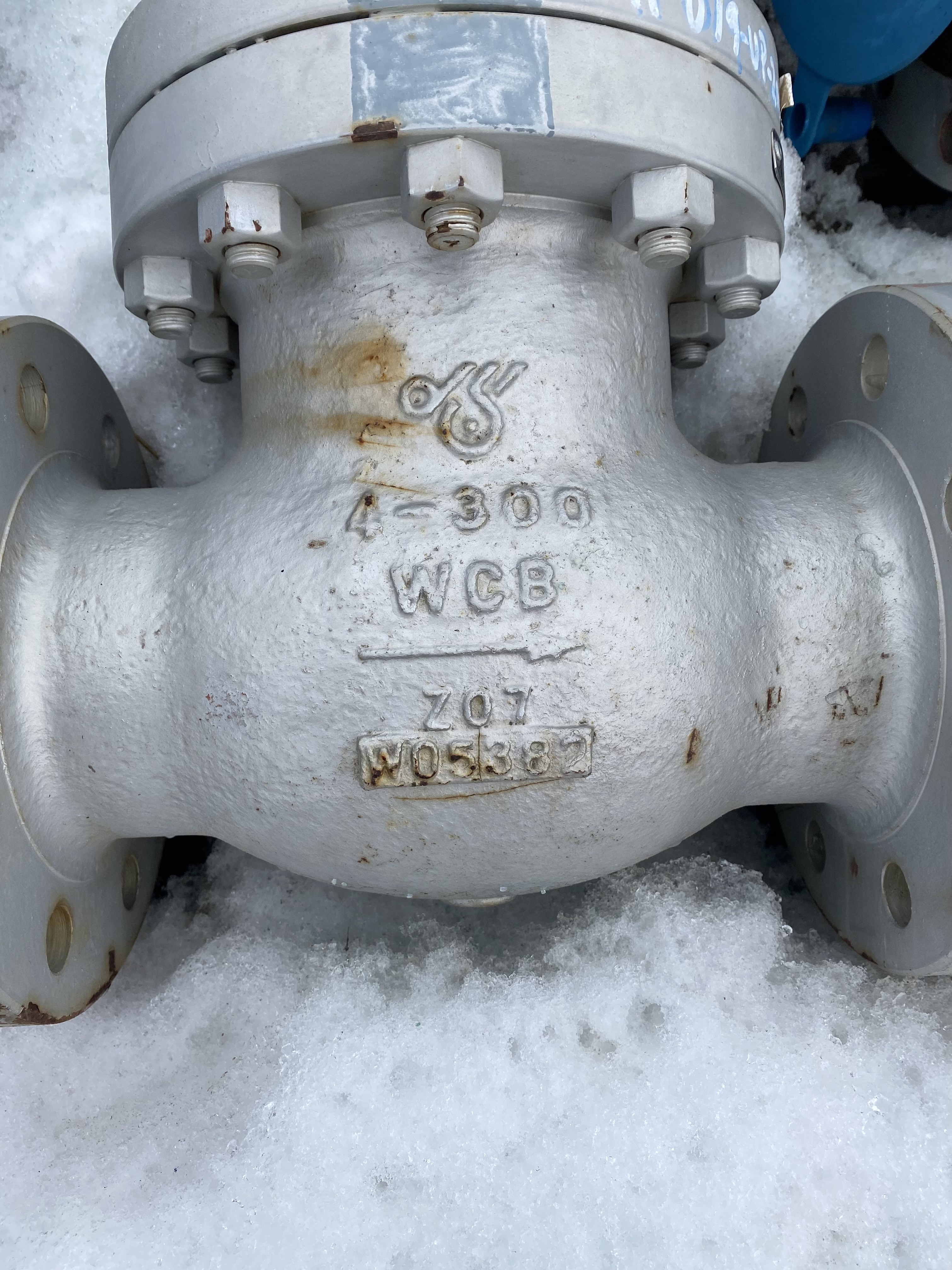

- Body Material
- WCB (Cast Carbon Steel)
- Condition
- Used - Shows rust, wear, and exposure to elements; may require refurbishment
- Design Standard
- BS 1873, ASME B16.34, API Trim No. 1
- Disc and Seat Material
- HF (Hard Faced)
- End Connection
- Raised Face Flanged
- Maximum Pressure
- 740bar
- Maximum Temperature
- 800°F
- Nominal Size
- 4in
- Pressure Class
- 300
- SKU
- V-109
- Stem Material
- CR13 (13% Chrome Stainless Steel)
Supporting evidence
No supporting documents or certifications provided.
Description
The ZY-Tech FIG 141U-N is a robust 4-inch Class 300 cast steel globe valve designed for high-pressure and high-temperature applications in industrial settings such as oil and gas, petrochemical, and power generation. Constructed with a WCB carbon steel body, CR13 stainless steel stem, and hard-faced (HF) disc and seat for enhanced durability and resistance to wear, this valve complies with BS 1873 and ASME B16.34 standards. It features a bolted bonnet design, outside screw and yoke (OS&Y), and flanged ends for secure installation. Key benefits include reliable throttling and shut-off capabilities, excellent sealing under pressure, and suitability for steam, water, oil, and gas media. Compared to similar products from brands like Velan or Crane, it offers cost-effective performance with comparable pressure ratings, though it may require more frequent maintenance in corrosive environments due to its carbon steel construction. This valve excels in flow control scenarios where precise regulation is needed, providing advantages in longevity and ease of operation via its handwheel actuator. Ideal for pipelines requiring up to 740 PSI at 100°F and temperatures up to 800°F.
