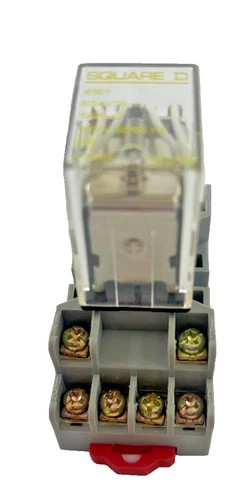

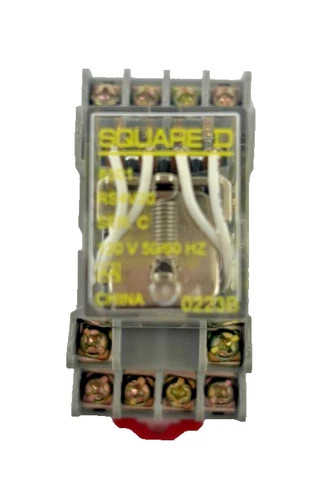

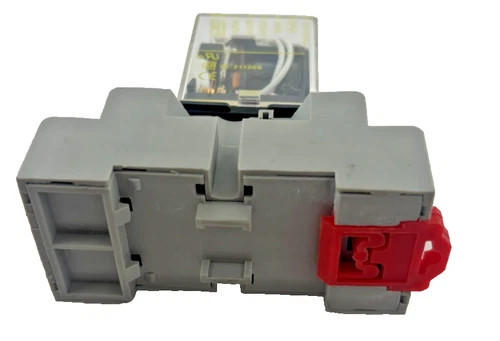

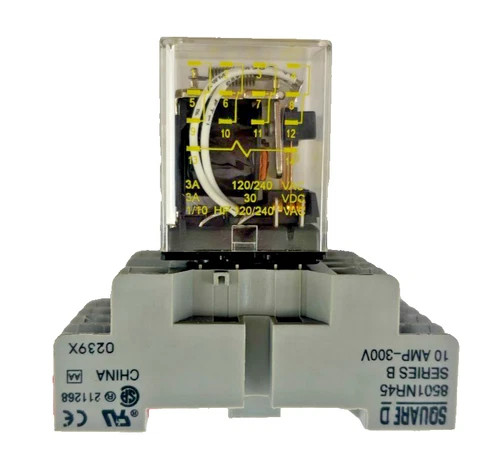

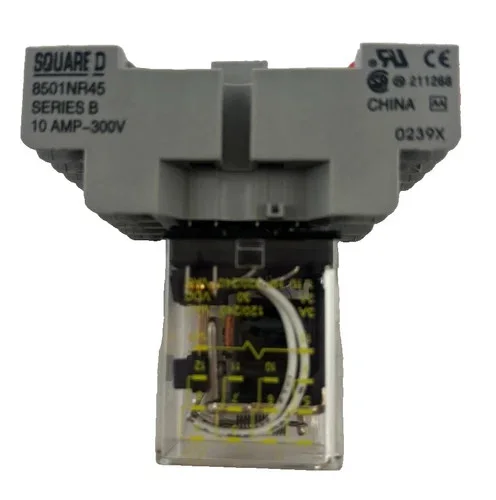

Square D 8501NR45 Series B Relay Socket 10Amp-300V

The Square D 8501NR45 Series B Relay Socket is a robust, DIN rail or panel-mountable socket designed for use with 14-pin miniature plug-in relays, such as Type R series relays. Rated for 10 amps at 300 volts, it provides reliable electrical switching in industrial control panels, automation systems, and machinery. Key features include screw terminals for secure wiring, a compact design for space-saving installations, and certifications like UL, CSA, and CE for safety and compliance. Benefits include easy relay replacement without rewiring, high durability in harsh environments, and compatibility with a wide range of control voltages. Compared to similar products from competitors like Omron or IDEC, the 8501NR45 offers superior build quality from Schneider Electric's Square D brand, with better vibration resistance and longer service life. Drawbacks may include a higher initial cost and the need for compatible relays. Ideal applications include motor control, lighting systems, HVAC, and process automation. This socket enhances system reliability by isolating control circuits and allowing quick maintenance. Based on image analysis, the unit appears new or like-new, with no visible wear, and includes a transparent relay module in some views, potentially indicating a bundled relay setup. For precise decoding, the model '8501NR45' specifies a 14-blade socket for double-pole relays.
