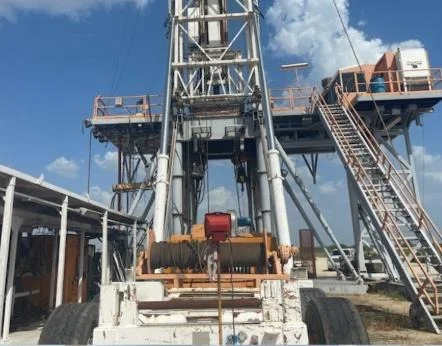

GES Quicksilver 1600HP AC-VFD Drilling Rig - Rig 9
GESModel:Quicksilver
Houston, TX
Oilfield Drilling Equipment
Qty:1
Condition: Used
At a glance
- Product
- GES Quicksilver 1600HP AC-VFD Drilling Rig - Rig 9
- Manufacturer
- GES
- Model
- Quicksilver
- Category
- Oilfield Drilling Equipment
- Condition
- USED
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Houston, TX
- Fulfillment
- Pickup and shipping available
- Listed on
Key specifications
- Accumulator Capacity
- Koomey Type 80, 7-station, 22-bottlegal

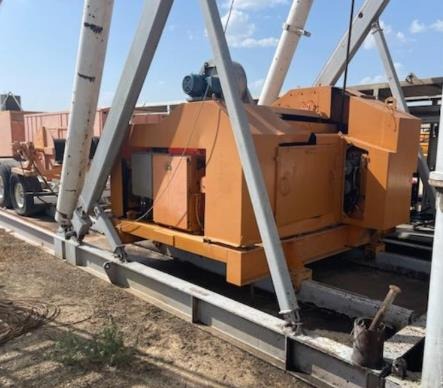

- Drawworks & Drive Drawworks
- GES 1,600 HP AC
- Drawworks & Drive Drill Line
- 1-3/8"
- Drawworks & Drive Motor
- 1,500 HP cont / 1,830 HP int AC
- Drawworks & Drive Rotary
- 27.5" hydraulic, 1,150 HP AC

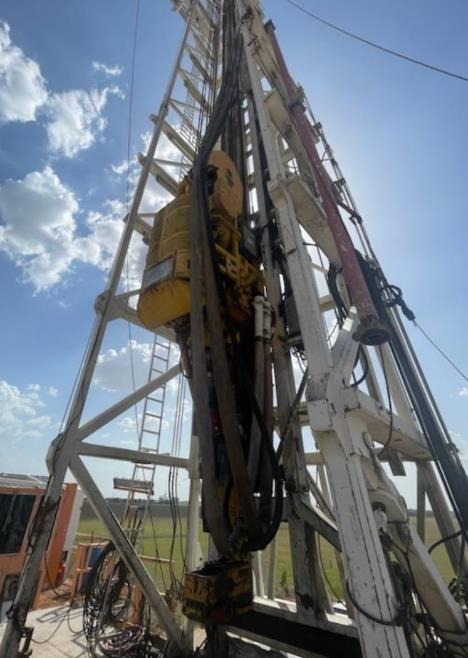

- Drawworks & Drive Top Drive
- CANRIG 1035
- Drawworks & Drive Traveling Block
- 400-ton, 6-sheave
- Drawworks & Top Drive Drawworks
- GES 1,600 HP AC
- Drawworks & Top Drive Drill Line
- 1-3/8"
- Drawworks & Top Drive Drive Motor
- 1,500 HP continuous / 1,830 HP intermittent AC
- Drawworks & Top Drive Rotary
- 27.5" driven by 1,150 HP cont / 1,400 HP int AC
- Drawworks & Top Drive Top Drive
- CANRIG 1035
- Drawworks & Top Drive Traveling Block
- 400-ton, 6 x 42" sheaves
- Drawworks Motor Rating
- 1500 HP continuous / 1830 HP intermittent
- Drawworks Power
- 1600HP
- Generator Capacity
- 3x Caterpillar 1750 KVA, 600VkVA
- Mast & Substructure Casing Capacity
- 750,000 lb
- Mast & Substructure Clear Height
- 22.5 ft under rotary beams
- Mast & Substructure Combined Load
- 1,255,000 lb
- Mast & Substructure Drill Floor Area
- 21.5 ft x 40 ft
- Mast & Substructure Floor Height
- 26 ft (22.5 ft clear)
- Mast & Substructure Hook Load
- 750,000 lb static (12-line string-up)

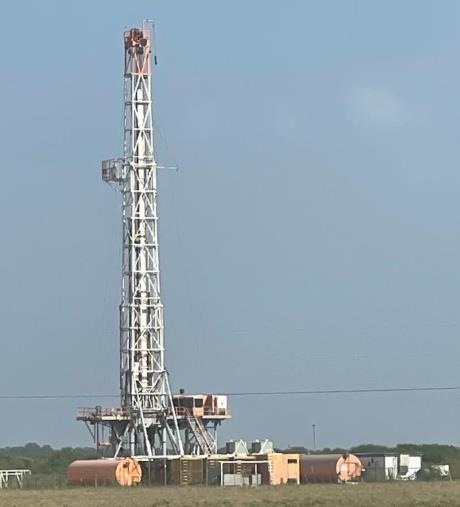

- Mast & Substructure Mast
- GES Quicksilver, 136 ft clear height
- Mast & Substructure Mast Type
- GES Quicksilver 136 ft
- Mast & Substructure Racking Capacity
- 19,500 ft 5" DP or 23,400 ft 4-1/2" DP
- Mast & Substructure Setback Capacity
- 505,000 lb
- Mast & Substructure Skid Capability
- 25 ft without moving rest of rig

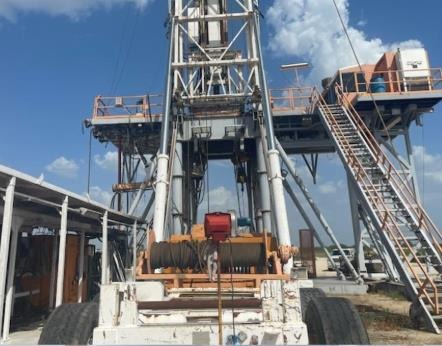

- Mast & Substructure Substructure
- GES hydraulic raise, 26 ft drill floor
- Mast Height
- 136ft
- Maximum Hook Load
- 750000lb
- Mud Capacity
- 900BBLS

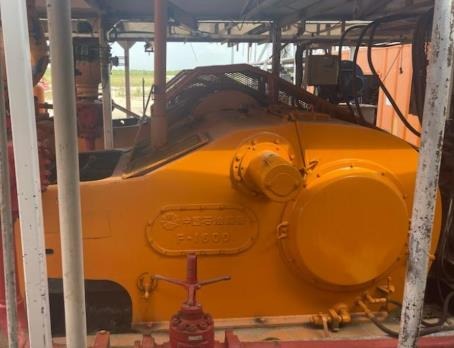

- Mud Pumps
- 2x BOMCO F-1600, 1600 HP, 7500 PSI, 12" stroke
- Mud System Degasser
- Brandt vacuum vessel
- Mud System Desander / Desilter
- Brandt Fluid Conditioner with 16 desilter cones, dual desander cones
- Mud System Mud Capacity
- ~900 bbl active
- Mud System Mud Pumps
- 2x BOMCO 1600HP Triplex AC (upgraded to 7,500 PSI)

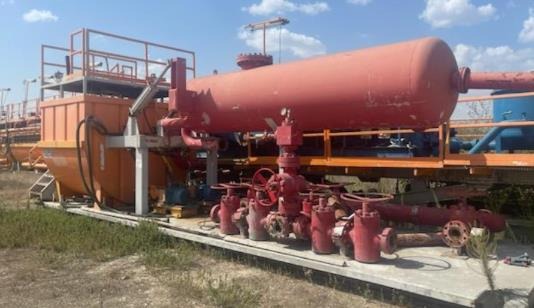

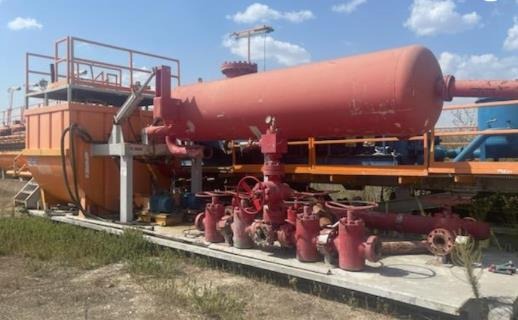

- Mud System Separator
- 48" Mud gas separator / trip tank
- Mud System Shakers
- 3x Brandt Dual King Cobra
- Mud System Stroke
- 12" stroke
- Mud System Tank Configuration
- Self-elevating skid, round bottom cleaning tank, suction tank, hopper skid
- Power & Mud System Engines
- 3x CAT 3512C @ 1,476 HP each
- Power & Mud System Generators
- Caterpillar 1,750 KVA / 600V
- Power & Mud System Mud Capacity
- ~900 bbl active
- Power & Mud System Mud Pumps
- 2x BOMCO 1600HP, 7,500 PSI
- Power & Mud System Shakers
- 3x Brandt Dual King Cobra
- Power & Mud System Well Control
- Koomey Type 80, 7-station
- Power Generation Engine Count
- 3
- Power Generation Engine Model
- CAT 3512C Diesel, 1,476 HP each
- Power Generation Engines
- 3x CAT 3512C, 1476 HP each
- Power Generation Generators
- Caterpillar 1,750 KVA, 600V each
- Racking Capacity
- 19500m
- Skid Dimensions
- 21.5 ft x 40 ft
- Skid Length
- 25ft
- Top Drive Model
- CANRIG 1035
- Traveling Block Capacity
- 400ton
- Well Control Accumulator
- Koomey Type 80, 7-station, 22-bottle
- Well Control Choke Manifold
- 10,000 PSI
- Well Control Fresh Water Tank
- 500 bbl
- Well Control Fuel Tank
- 500 bbl
Supporting evidence
No supporting documents or certifications provided.
Description
The GES Quicksilver 1600HP AC-VFD Drilling Rig (Rig 9) offers a proven AC drive platform with a 136-foot mast delivering 750,000 lb static hookload. Modified to allow skidding of mast and substructure up to 25 feet on location without moving the rest of the rig â a significant operational advantage. Powered by three CAT 3512C engines and equipped with twin upgraded BOMCO 1600HP mud pumps at 7,500 PSI.
