Drillmec 2000HP Rig 65
DrillmecModel:Rig 66
Houston, TX
Oilfield Drilling Equipment
Qty:1
Condition: Used
At a glance
- Product
- Drillmec 2000HP Rig 65
- Manufacturer
- Drillmec
- Model
- Rig 66
- Category
- Oilfield Drilling Equipment
- Condition
- USED
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Houston, TX
- Fulfillment
- Pickup and shipping available
- Listed on
Key specifications
- BOP & Well Control Annular
- 21¼" 2M & 13â " 5M
- BOP & Well Control Choke Manifold
- Weir 3 1/16" 10M
- BOP & Well Control Double RAM
- 13â " 5M
- BOP & Well Control Single RAM
- 21¼" 2M & 13â " 5M
- Camp Capacity
- 132
- Drawworks / Hoisting Auxiliary Brake
- Aker Wirth WN72 eddy current
- Drawworks / Hoisting Drilling Line
- 1½" (38 mm)
- Drawworks / Hoisting Lines
- 14
- Drawworks / Hoisting Primary Brake
- Ã12 hydraulic discs (positive & negative)
- Drawworks / Hoisting Type
- MS-7000-AC Electric 2000HP
- Drawworks Model
- MS-7000-AC Electric 2000HP
- Generator Model
- CAT C-3512B, 1,200 kW, 600V
- Hook Load Capacity
- 1300000ST
- Iron Roughneck Break-out Torque
- 100,000 ft-lbs
- Iron Roughneck Make-up Torque
- 100,000 ft-lbs
- Iron Roughneck Model
- WFT Torq Wrench 1-0-100 IR
- Iron Roughneck Range
- 2â " to 10"
- Mast & Hoisting Clear Height
- 156 ft (47.55 m)
- Mast & Hoisting Drawworks
- MS-7000-AC Electric 2000HP, 14 lines
- Mast & Hoisting Mast Type
- Cantilever Swing Lift Triple
- Mast & Hoisting Static Hook Load
- 1,300,000 lbs (590 MT)
- Mast Clear Height
- 156 ft (47.55 m)
- Mast Height
- 156ft
- Mast Static Hook Load
- 1,300,000 lbs (590 MT)
- Mast Type
- Cantilever Swing Lift Triple
- Max Combined Load
- 2100000lb
- Mud Pump Model
- Drillmec 12T1600, 5,000 psi
- Number of Generators
- 5
- Number of Mud Pumps
- 3
- Power Generation Generator Sets
- 5 Ã CAT C-3512B
- Power Generation Power Control
- Drillmec VFD, 6500 kW, 12 bays
- Power Generation Rating
- 1200 kW, 600V each
- Rated Power
- 2000kW
- RKB Height
- 35ft
- Rotary Table
- Drillmec two-speed 1500 HP 37½ in
- Substructure Clear Working Height
- 30 ft (9.3 m)
- Substructure Max Combined Load
- 2,100,000 lbs (952 MT)
- Substructure RKB Height
- 35 ft (10.7 m)
- Substructure Setback Capacity
- 800,000 lbs (362 MT)
- Top Drive & Rotary Capacity
- 500 MT (1,102,310 lbs)
- Top Drive & Rotary Max Torque
- 72,000 ft-lbs (97,618 Nm)
- Top Drive & Rotary Rotary Table
- Drillmec 1500 HP, 37½" opening
- Top Drive & Rotary Top Drive
- Tesco 500 ESI 1350 HP
- Top Drive Capacity
- 500 MT (1,102,310 lbs)
- Top Drive Hookload Capacity
- 1102310lb
- Top Drive Max Torque
- 72,000 ft-lbs
- Top Drive Model
- Tesco 500 ESI
- Top Drive Power
- 1350 HP
- Top Drive Pressure
- 5000 psi
- Top Drive Speed
- 218 RPM
- Total Mud System Volume
- 2282BBLS
- Well Control Accumulator
- CAD 14-station, 3M, 572 gal
- Well Control Annular
- 21¼" 2M & 13â " 5M
- Well Control Choke Manifold
- Weir 3 1/16" 10M
- Well Control RAM (Double)
- 13â " 5M
- Well Control RAM (Single)
- 21¼" 2M & 13â " 5M
Supporting evidence
No supporting documents or certifications provided.
Description

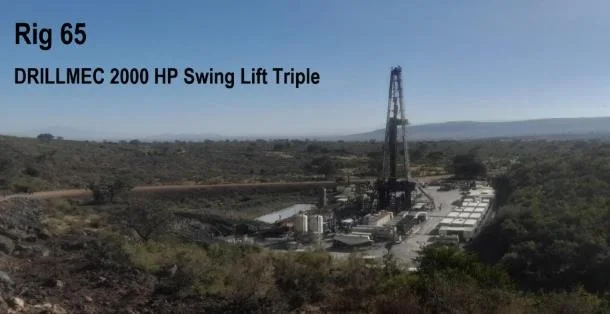

Drillmec 2000HP Cantilever Swing Lift Triple (Rig 65) equipped with a Tesco 500 ESI 1350HP top drive rated 500 MT and the MS-7000-AC drawworks on 14 lines. Five CAT C-3512B generators at 1200 kW each feed a 6500 kW Drillmec VFD power control room. BOP stack includes 21¼" and 13â
" annular and RAM equipment to 5000 psi. Iron roughneck rated to 100,000 ft-lbs torque.
