400 BBL GLM Insulated Storage Tank – 2009
GLM Industries L.P.
Crossfield, AB
Storage Tanks
Qty:1
Condition: Used
At a glance
- Product
- 400 BBL GLM Insulated Storage Tank – 2009
- Manufacturer
- GLM Industries L.P.
- Model
- Not provided
- Category
- Storage Tanks
- Condition
- USED
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Crossfield, AB
- Fulfillment
- Pickup and shipping available
- Seller
- Inclusive Energy
- Listed on
Key specifications
- Bottom Thickness
- 1/4 in
- Condition
- Used (D)
- Deck Thickness
- 3/16 in
- Design Pressure
- 16 oz
- Design Specific Gravity
- 1
- Design Standard
- API 12F, Ed. 12, Mod X
- Heater Type
- Fire Tube
- Insulation Type
- Spray foam
- Last Internal Inspection
- July 2018
- Manufacturer Serial Number
- 09-346-1
- Material Specification
- A-36
- Maximum Temperature
- 200 °F
- Minimum Design Metal Temperature (MDMT)
- 11 °F
- Nominal Diameter
- 12 ft
- Nominal Height
- 20 ft
- Shell Thickness
- 3/16 in
- Stock Number
- 83151
- Tank Type
- Vertical flat-bottom
- Total Capacity
- 400 BBL
- Year
- 2009
Supporting evidence
No supporting documents or certifications provided.
Description

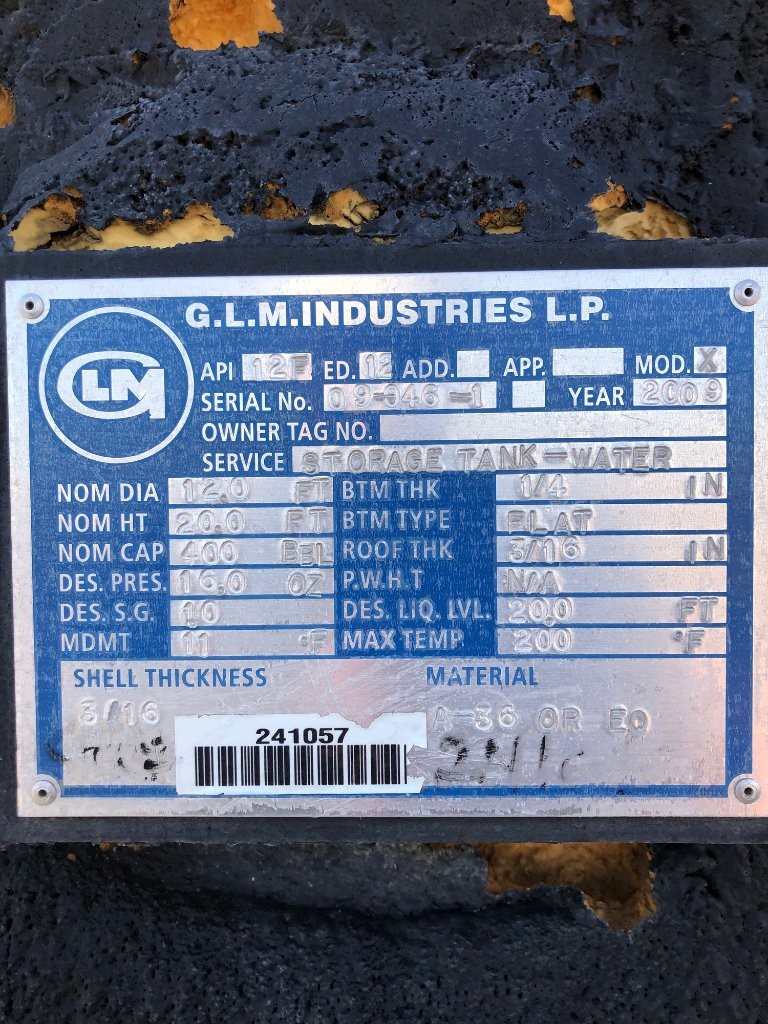

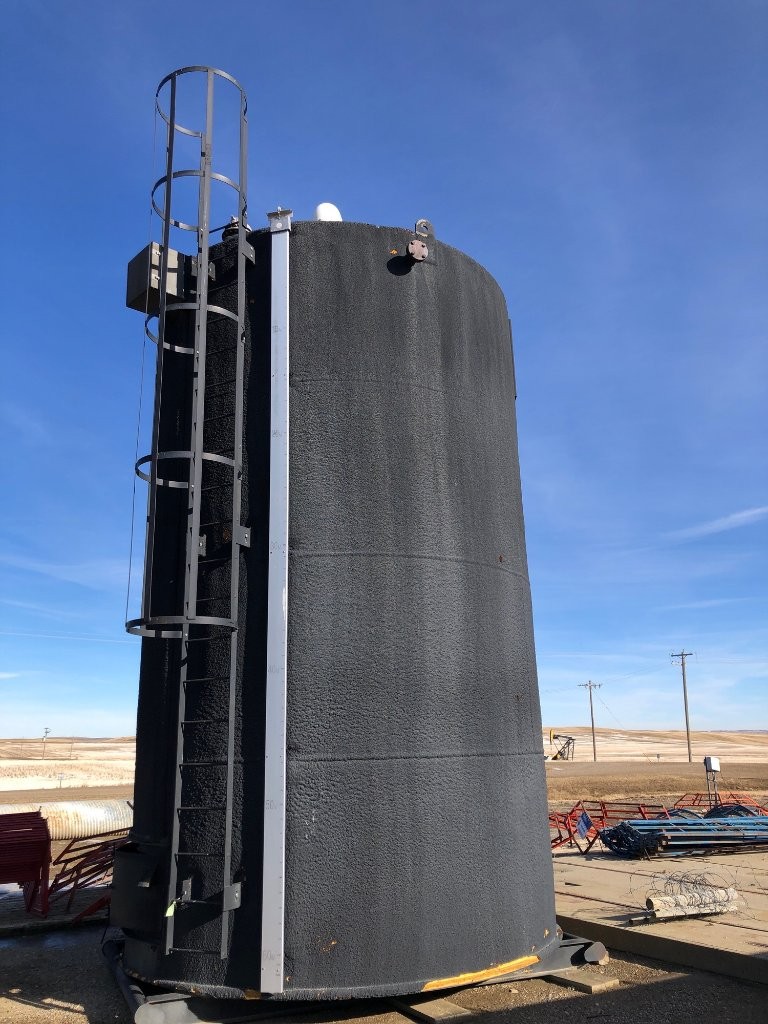

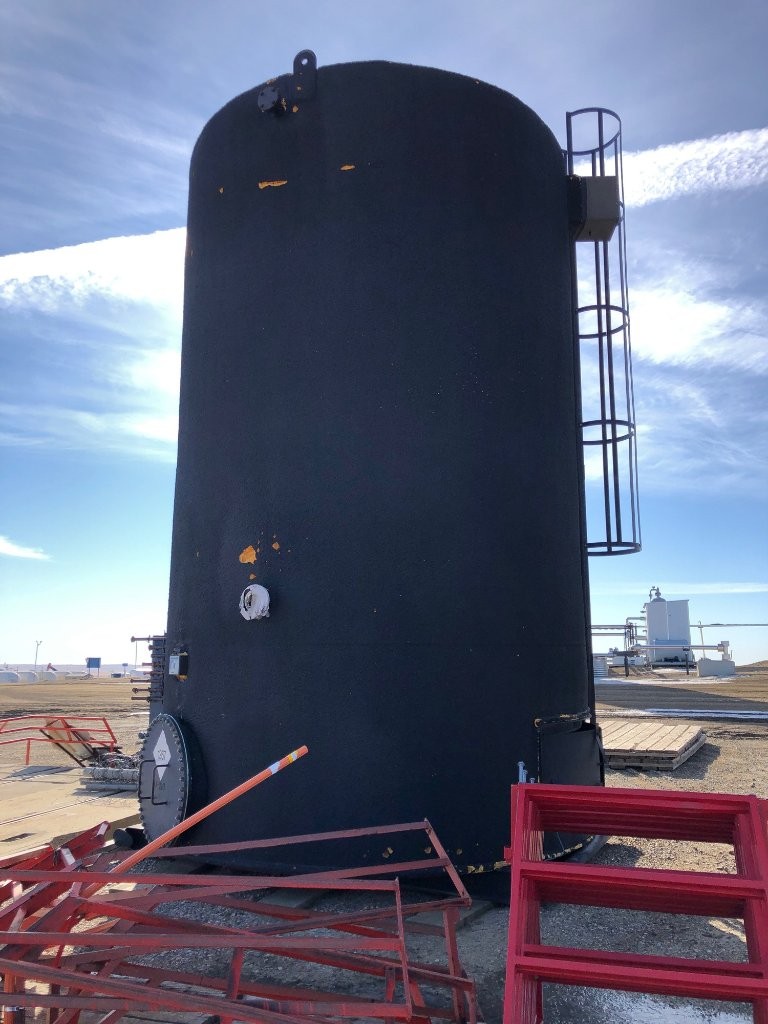

This 400 BBL insulated storage tank was built in 2009 by GLM Industries L.P. to API 12F, Ed. 12, Mod X — the standard vertical flat-bottom configuration for produced water and crude storage at Alberta well batteries. Spec plate data confirms Serial # 09-346-1, 12.0 ft diameter by 20.0 ft height, a 16 oz design pressure, 3/16 in. shell and roof over a 1/4 in. flat bottom, A-36 material, an MDMT of 11 °F, and a maximum temperature of 200 °F. Spray-foam insulation lets the tank hold heated fluids through winter service, and it is fitted with a caged ladder and an external level gauge for gauging from top or grade. The tank is offered in Used (D) condition, and the photo is consistent with that grade: the black coating over the foam insulation is chipped in numerous spots with yellow foam showing through, the bolted manway cover at the base still carries a UN 1267 placard, and the tank rests on pipe runners in the yard beside a second, more heavily weathered unit.
