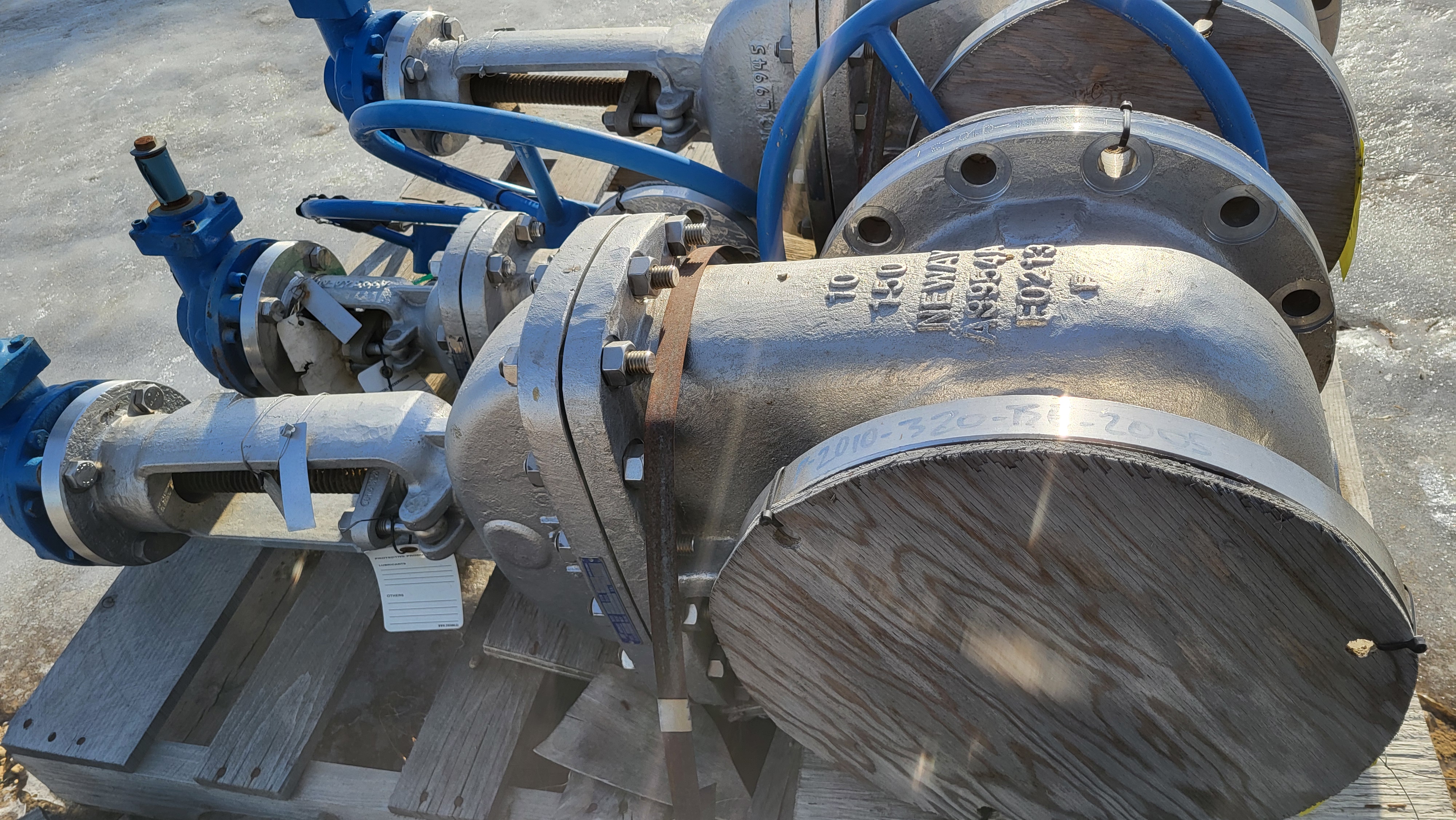

Neway 10-in Class 150 Super-Duplex Gate Valve – Fig. G1RNF-51HFW-T-600
Neway Valve (Suzhou) Co., Ltd.Model:G1RNF-51HFW-T-600
Red Deer, AB
Gate Valve
Qty:1
Condition: New
At a glance
- Product
- Neway 10-in Class 150 Super-Duplex Gate Valve – Fig. G1RNF-51HFW-T-600
- Manufacturer
- Neway Valve (Suzhou) Co., Ltd.
- Model
- G1RNF-51HFW-T-600
- Category
- Gate Valve
- Condition
- NEW
- Availability
- In stock
- Price or process
- Make an offer
- Quantity
- 1
- Lead time
- Not provided
- Location
- Red Deer, AB
- Fulfillment
- Pickup and shipping available
- Seller
- OTG
- Listed on
Key specifications
- Certification
- Hydrostatic tested per API 598; EN10204 3.1 certs available
- Connection Type
- RF Flanged
- Design Standard
- API 600 / ASME B16.34
- Face to Face Dimension
- 17.5in
- Flow Direction
- true
- Material of Construction
- A995 6A
- Maximum Working Pressure at 100°F
- 285psi
- Nominal Pipe Size
- 10in
- Operation
- Manual handwheel/gear operator
- Pressure Class
- 150
- Seat Trim
- Duplex SS (Trim 10 equivalent)
- SKU
- V-099
- Stem Type
- Rising Stem, Bolted Bonnet
- Temperature Max
- 316°F
- Temperature Min
- -29°F
Supporting evidence
- Document: Neway 10-in Class 150 Super-Duplex Gate Valve – Fig. G1RNF-51HFW-T-600 document bd4df1ee-fffb-4aa4-a2a8-33d719aa56a0
Document for Neway 10-in Class 150 Super-Duplex Gate Valve – Fig. G1RNF-51HFW-T-600
Description
Neway’s Figure G1RNF-51HFW-T-600 is a full-port, outside-screw-and-yoke (OS&Y) wedge-gate valve designed for low-pressure, corrosive service. The body and bonnet are ASTM A995 Grade 6A super-duplex stainless steel (UNS S32760), offering twice the strength of 316 SS and a PREN >40 for excellent resistance to chloride-induced pitting. With ASME Class 150 raised-face flanges and API 600 trim, the valve provides tight shut-off in either flow direction, making it ideal for seawater, chemically aggressive brines, produced water, and offshore fire-main or utility systems. Compared with conventional CF8M gate valves, the duplex metallurgy dramatically reduces weight-to-pressure ratios, erosion, and life-cycle cost. A manual rising-stem/handwheel gear operator with padlock provision ensures positive visual indication of valve position. Face-to-face and flange dimensions follow ASME B16.10/B16.5, allowing drop-in replacement with standard 150-lb cast-steel valves.
