AutomationDirect AcuAMP ACTR005-42L-F True RMS Current Transducer
AutomationDirectModel:ACTR005-42L-F
Location unavailable
Monitoring & Instrumentation
Qty:1
Condition: New
At a glance
- Product
- AutomationDirect AcuAMP ACTR005-42L-F True RMS Current Transducer
- Manufacturer
- AutomationDirect
- Model
- ACTR005-42L-F
- Category
- Monitoring & Instrumentation
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Motor Control Center
- Listed on
Key specifications
- Accuracy
- ±0.5% full scale
- Aperture Size
- 0.42in
- Frequency Range Max
- 400Hz
- Frequency Range Min
- 10Hz
- Input Range Max
- 5mV
- Input Range Min
- 0mV
- Operating Temperature Max
- 70°F
- Operating Temperature Min
- -30°F
- Output Signal Max
- 20mA
- Output Signal Min
- 4mA
- Power Supply Max
- 40VDC
- Power Supply Min
- 12VDC
- Response Time
- 600ms
Supporting evidence
No supporting documents or certifications provided.
Description

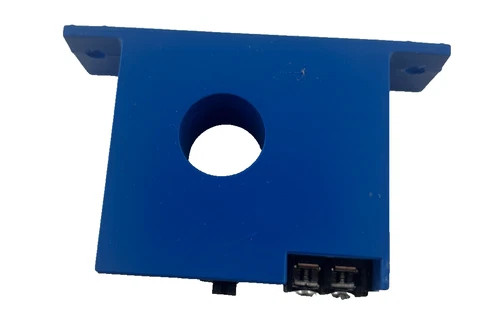

The AutomationDirect AcuAMP ACTR005-42L-F is a compact, loop-powered true RMS AC current transducer designed for accurate monitoring of AC currents in industrial automation applications. It features jumper-selectable input ranges of 0-2A or 0-5A, converting them to a standard 4-20mA output signal for easy integration with PLCs, data loggers, and control systems. This model excels in environments requiring precise true RMS measurement, handling non-sinusoidal waveforms effectively, which is a key advantage over average-responding transducers that may inaccuracies with distorted signals. Its fixed-core design with a 0.42-inch aperture allows for simple installation around conductors without disconnecting wires. Benefits include high accuracy (±0.5% full scale), wide operating temperature range (-30°C to 70°C), and UL listing for safety compliance. Drawbacks may include the need for external loop power (12-40VDC) and limited to lower current ranges compared to higher-capacity models. Ideal for motor monitoring, heater elements, lighting systems, and process control, it offers reliable performance in harsh industrial settings, outperforming basic current sensors in accuracy and versatility.
