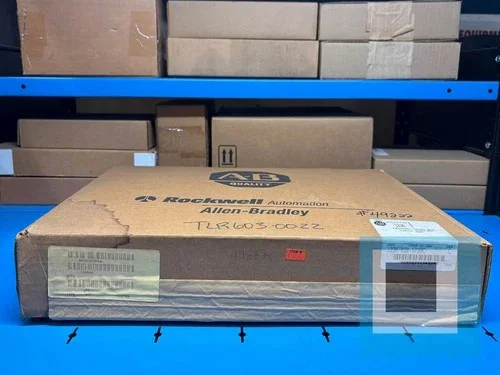

Allen-Bradley 1336-BDB-SP39C Gate Drive PCB, Series C, 460V, 250HP
Allen-BradleyModel:1336-BDB-SP39C
Location unavailable
Other
Qty:1
Condition: New
At a glance
- Product
- Allen-Bradley 1336-BDB-SP39C Gate Drive PCB, Series C, 460V, 250HP
- Manufacturer
- Allen-Bradley
- Model
- 1336-BDB-SP39C
- Category
- Other
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Listed on
Key specifications
- Compatibility
- 1336 PLUS, PLUS II, FORCE, SPIDER, REGEN Drives; Frame G (1336STG)
- Condition
- New
- Horsepower Rating
- 250HP
- Operating Temperature Max
- 50°F
- Operating Temperature Min
- 0°F
- Series
- C
- Voltage Rating
- 460V
Supporting evidence
No supporting documents or certifications provided.
Description
The Allen-Bradley 1336-BDB-SP39C is a Gate Drive Printed Circuit Board (PCB) designed for use in 1336 PLUS, PLUS II, FORCE, SPIDER, and REGEN adjustable frequency AC drives. This Series C model is specifically rated for 460V applications with a 250HP capacity, making it suitable for high-power industrial motor control systems. It facilitates precise gate signaling to power transistors, ensuring efficient variable speed control, torque management, and energy savings in demanding environments like manufacturing, HVAC, and material handling. Key features include robust construction for reliability in harsh conditions, compatibility with Frame G drives, and easy integration for maintenance or upgrades. Advantages over similar products include Allen-Bradley's proven durability, reducing downtime compared to generic alternatives, though it may require specific firmware matching for optimal performance. Drawbacks include obsolescence risks as it's an older model, potentially limiting availability of support. Overall, this PCB enhances drive performance by providing stable gate drive signals, improving system efficiency and extending equipment life in heavy-duty applications.
