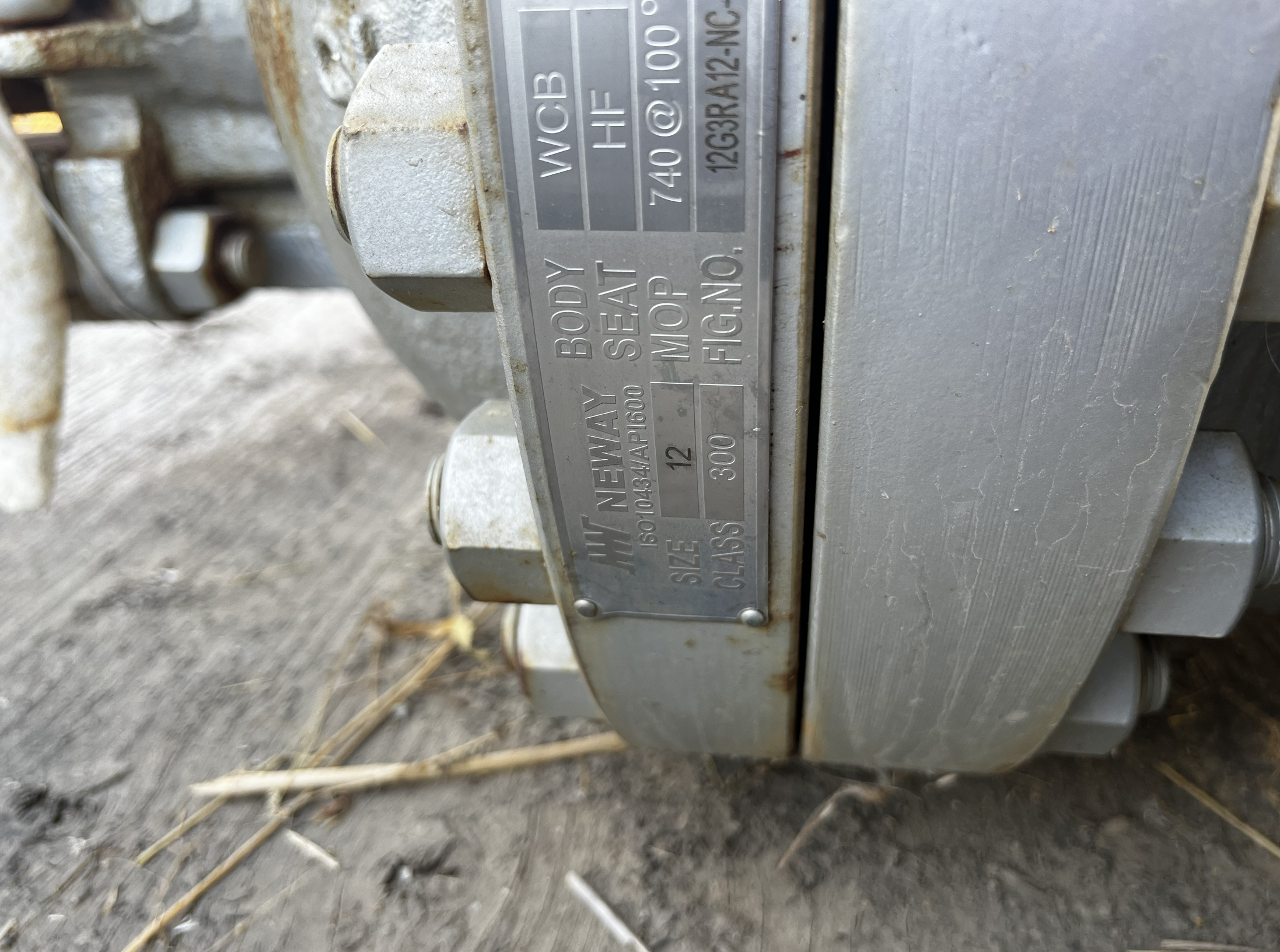

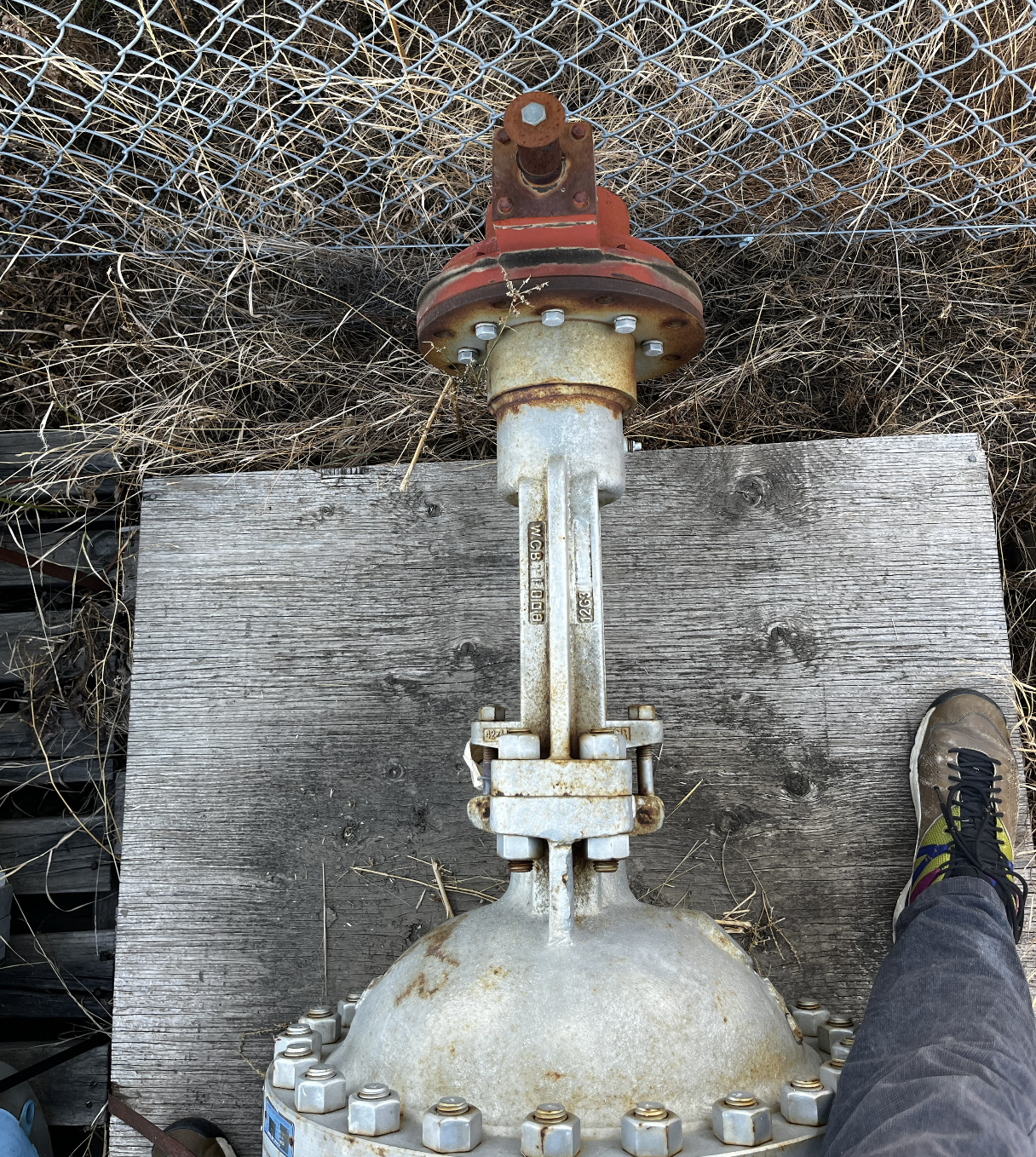

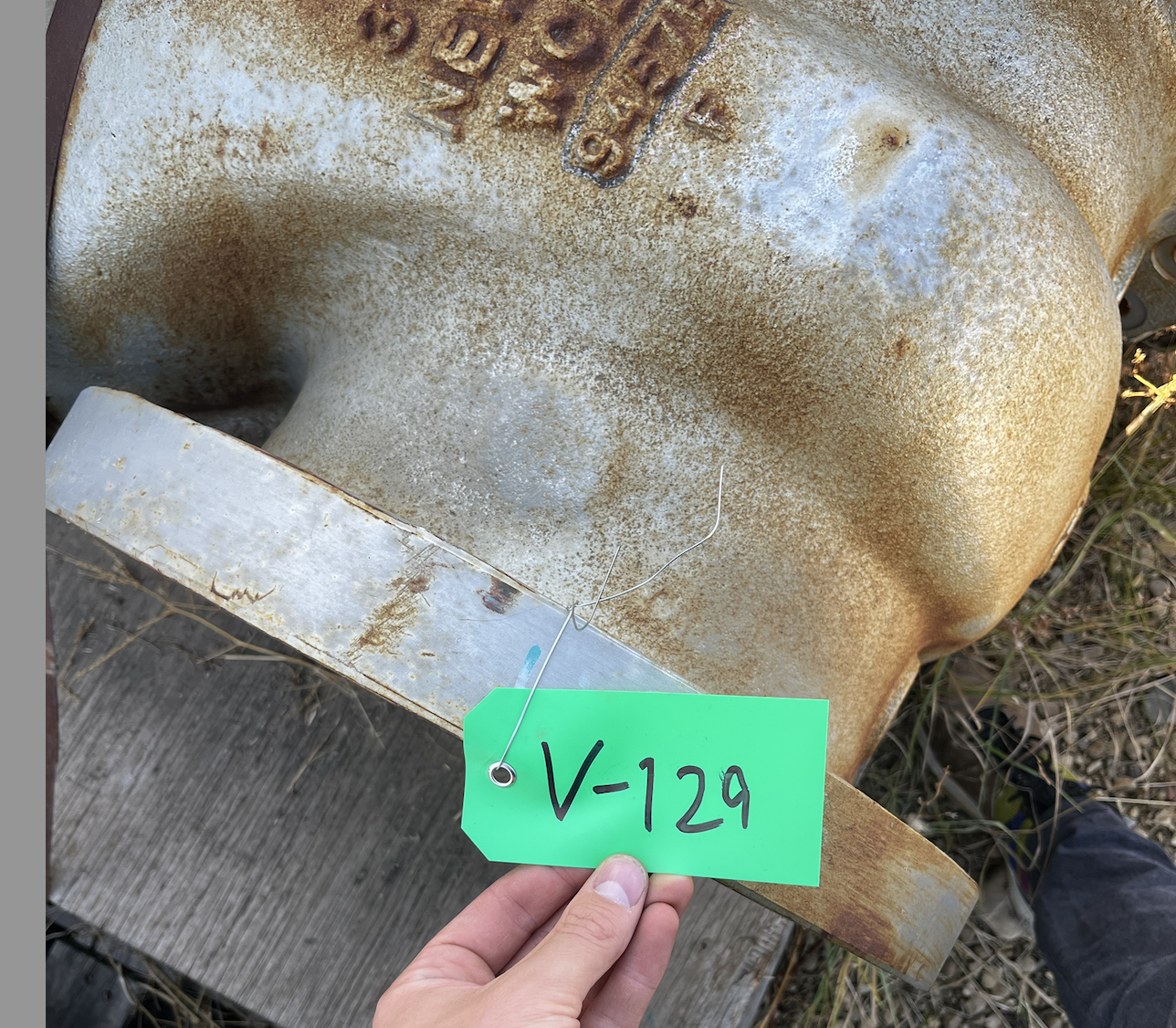

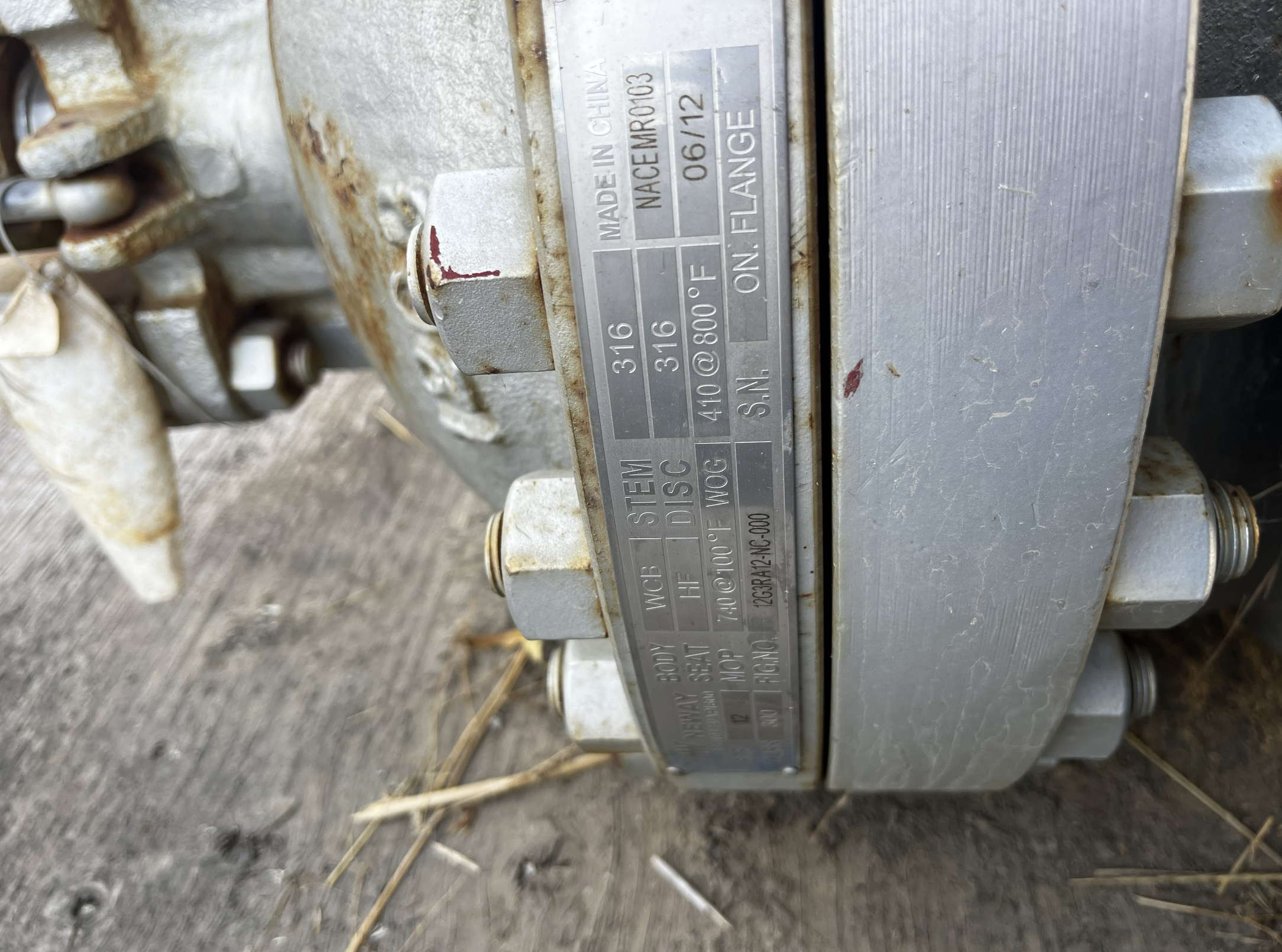

Neway Figure 501 12" Class 300 Cast Steel Gate Valve
Neway Valve (Suzhou) Co., Ltd.Model:501
Red Deer, AB
Gate Valve
Qty:1
Condition: New
At a glance
- Product
- Neway Figure 501 12" Class 300 Cast Steel Gate Valve
- Manufacturer
- Neway Valve (Suzhou) Co., Ltd.
- Model
- 501
- Category
- Gate Valve
- Condition
- NEW
- Availability
- In stock
- Price or process
- Make an offer
- Quantity
- 1
- Lead time
- Not provided
- Location
- Red Deer, AB
- Fulfillment
- Pickup and shipping available
- Seller
- OTG
- Listed on
Key specifications
- Body Material
- WCB (Cast Carbon Steel)
- Compliance
- API 600, NACE MR0103
- Disc Material
- 316 Stainless Steel
- End Connection
- Raised Face Flanged
- Maximum Operating Pressure
- 740bar
- Maximum Temperature
- 650°F
- Nominal Size
- 12in
- Operator Type
- Bevel Gear Operator
- Pressure Class
- 300
- Seat Material
- HF (Hard Faced)
- SKU
- V-129
- Stem Material
- 316 Stainless Steel
Supporting evidence
No supporting documents or certifications provided.
Description

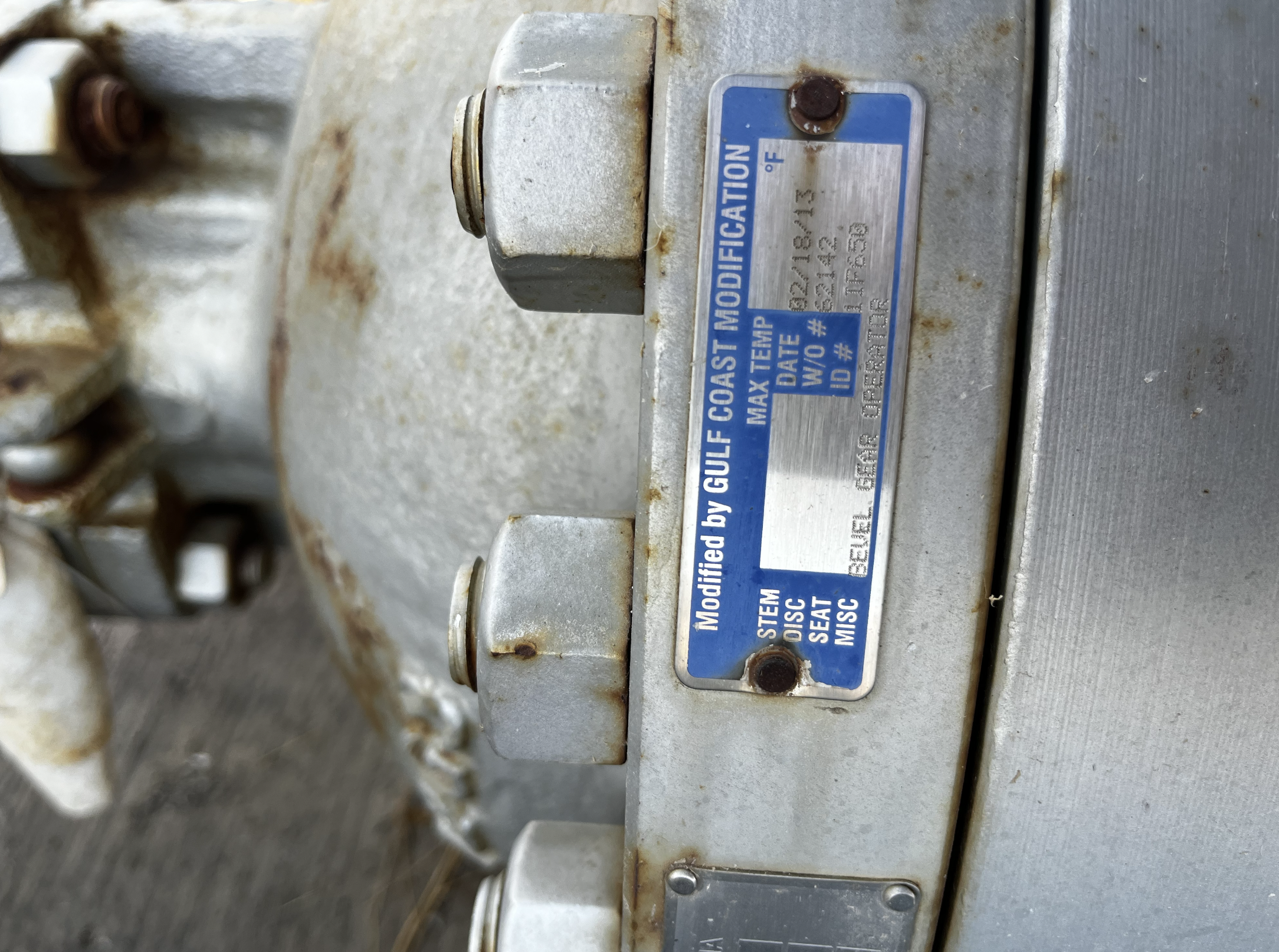

The Neway Figure 501 is a robust 12-inch Class 300 gate valve designed for high-pressure industrial applications, including oil and gas, petrochemical, and power generation sectors. Constructed from WCB cast carbon steel, it features a flexible wedge disc for reliable sealing under varying temperatures and pressures. This unit has been modified by Gulf Coast Modification with a bevel gear operator for easier manual operation in high-torque scenarios, along with upgrades to 316 stainless steel stem and disc for enhanced corrosion resistance, and hard-faced (HF) seats for durability in abrasive environments. Key benefits include tight shutoff, low pressure drop, and bidirectional flow capability, making it superior to globe valves in on/off service. Drawbacks may include slower operation compared to ball valves and potential for seat wear in frequent cycling. It supports temperatures up to 650°F and is suitable for steam, water, oil, and gas media.
