KF Valve 3” Class 300 High-Temperature WCB Gate Valve (Part No. GA03011XU)
KF ValvesModel:GA03011XU
Red Deer, AB
Gate Valve
Qty:1
Condition: New
At a glance
- Product
- KF Valve 3” Class 300 High-Temperature WCB Gate Valve (Part No. GA03011XU)
- Manufacturer
- KF Valves
- Model
- GA03011XU
- Category
- Gate Valve
- Condition
- NEW
- Availability
- In stock
- Price or process
- Make an offer
- Quantity
- 1
- Lead time
- Not provided
- Location
- Red Deer, AB
- Fulfillment
- Pickup and shipping available
- Seller
- OTG
- Listed on
Key specifications
- Cold Working Pressure (CWP)
- 740psi
- Connection Type
- RF, 300 lb
- Design Standards
- API 600, ASME B16.34
- Disc (Wedge) Material
- 13% Chromium (Type 410) Stainless Steel
- Face to Face Dimension
- 14in
- Material Specification - Shell
- A216 WCB Carbon Steel
- Maximum Operating Temperature
- 800
- Nominal Pipe Size
- 3in
- Operation
- Manual
- Pressure Class
- Class 300
- Seat Hardfacing
- HF (Hard-Faced, cobalt alloy)

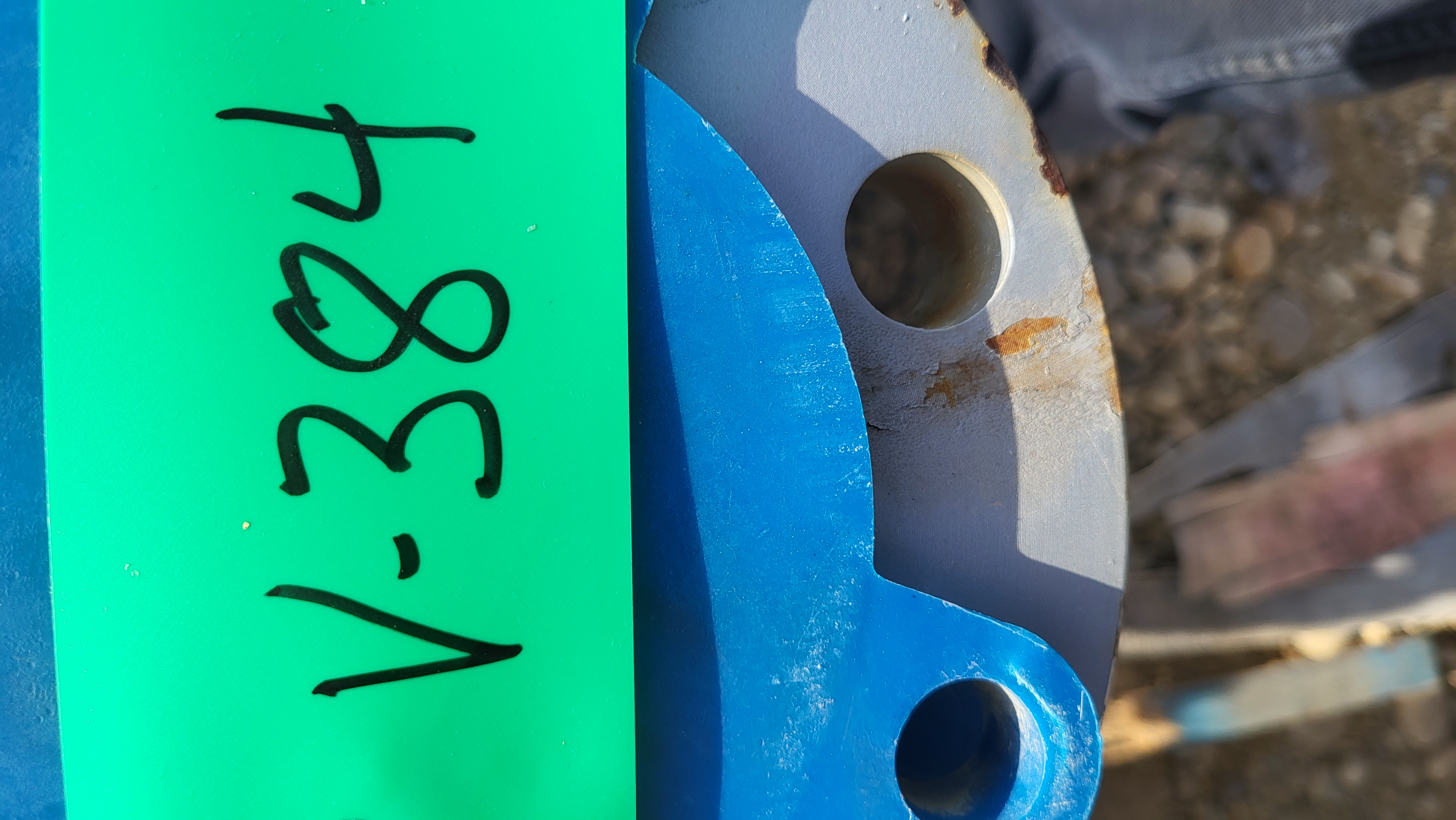

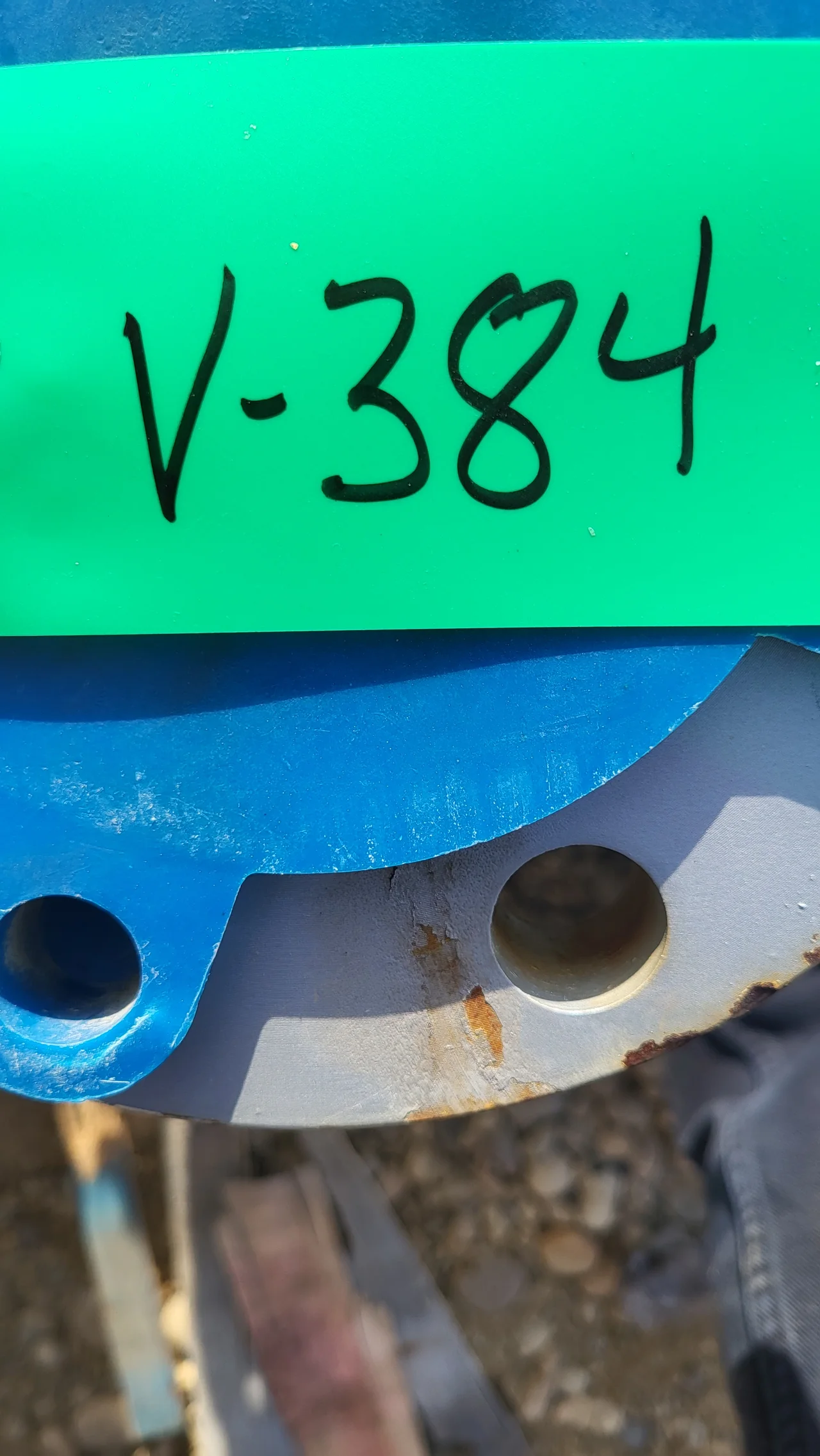

- SKU
- V-384
- Stem Material
- 13% Chromium Stainless Steel
Supporting evidence
No supporting documents or certifications provided.
Description

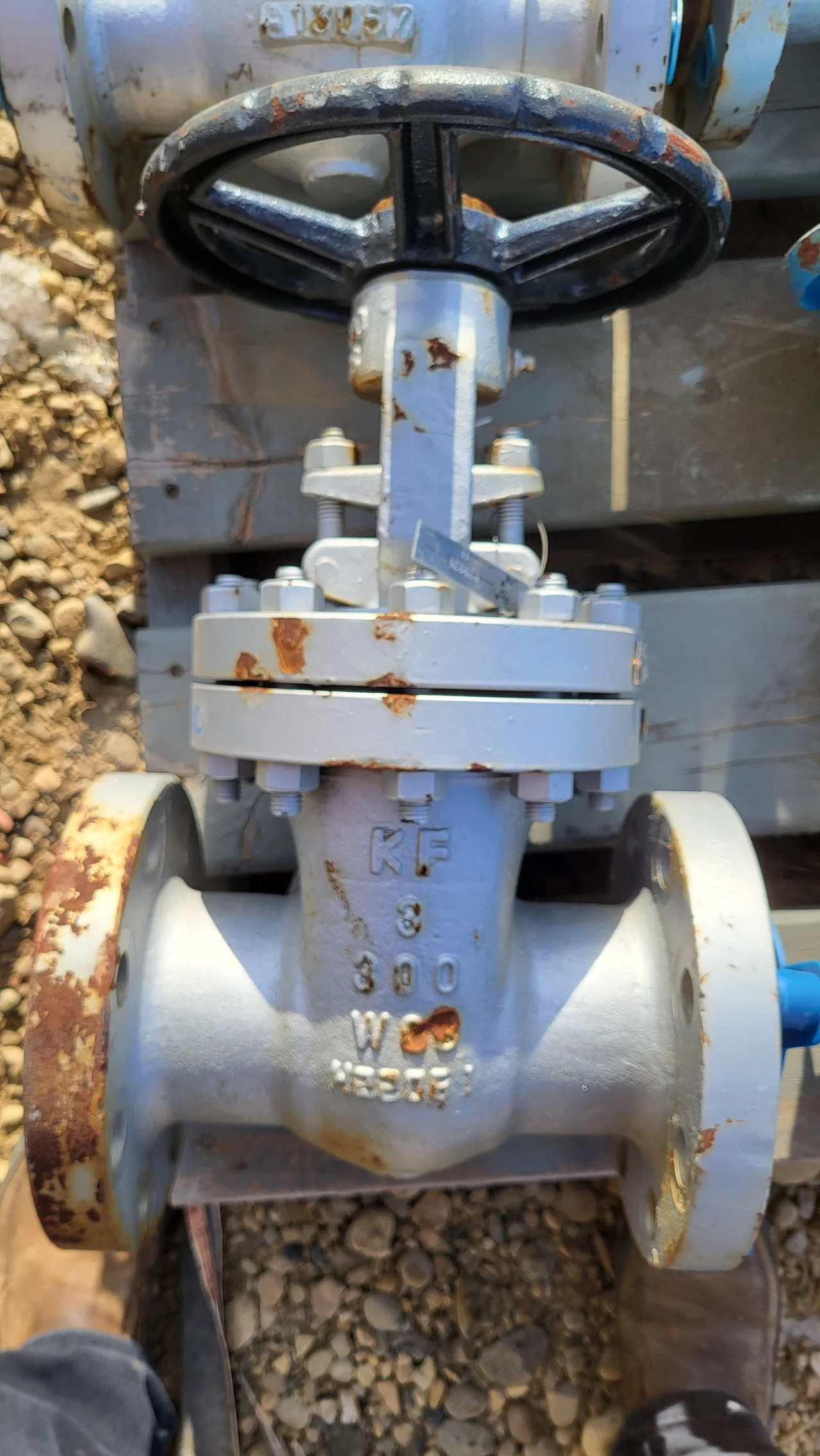

KF Valve’s GA03011XU is a 3-inch, Class 300, bolted-bonnet gate valve designed for high-temperature, moderate-pressure service in oil, gas, steam and process applications. The carbon-steel (ASTM A216 WCB) body/bonnet offers durability and weld-repairability, while API 600 Trim 8 (13 Cr stainless disc and stem with hard-faced HF/Stellite® seat) provides excellent galling resistance and tight shut-off at elevated temperatures. Rising-stem, outside-screw-and-yoke construction simplifies packing maintenance and clearly indicates valve position. RF flanged ends conform to ASME B16.5, and face-to-face dimensions meet ASME B16.10, ensuring drop-in interchangeability with other ANSI gate valves. Compared with lower-trim or soft-seated alternatives, the GA03011XU tolerates up to 800 °F (427 °C) process temperatures and abrasive service, making it well-suited for refinery heater lines, boiler feed, produced water, and general utility service. This unit appears to be new, surplus stock with storage rust on flanges/bolting but no sign of in-line use, offering a cost-effective replacement for new OEM stock.
