400 BBL GLM Insulated Storage Tank – 2007
GLM Industries L.P.
Crossfield, AB
Crude Oil Storage Tank
Qty:1
Condition: Used
At a glance
- Product
- 400 BBL GLM Insulated Storage Tank – 2007
- Manufacturer
- GLM Industries L.P.
- Model
- Not provided
- Category
- Crude Oil Storage Tank
- Condition
- USED
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Crossfield, AB
- Fulfillment
- Pickup and shipping available
- Seller
- Inclusive Energy
- Listed on
Key specifications
- Barrel Capacity
- 400 BBL
- Bottom Thickness
- 1/4 in
- Condition
- Used (C)
- Design Pressure
- 16
- Design Standard
- API 12F, Mod X
- Heater Type
- Internal flameless gas heater
- Insulation Type
- Spray foam
- Material
- A-36
- Maximum Temperature
- 200
- Minimum Design Metal Temperature (MDMT)
- 11 °F
- Nominal Diameter
- 12 ft
- Nominal Height
- 20 ft
- Serial Number
- 07-006-5
- Service
- Water
- Shell Thickness
- 3/16 in
- Specific Gravity
- 1
- Tank Type
- Vertical flat-bottom
- Year
- 2007
Supporting evidence
No supporting documents or certifications provided.
Description

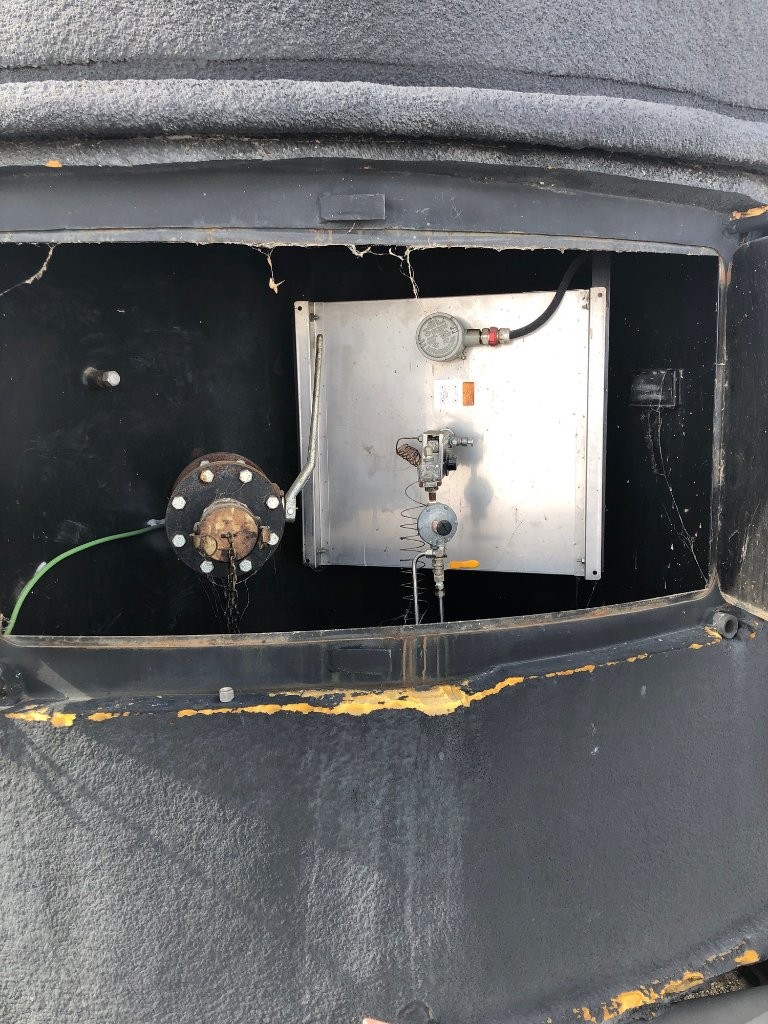

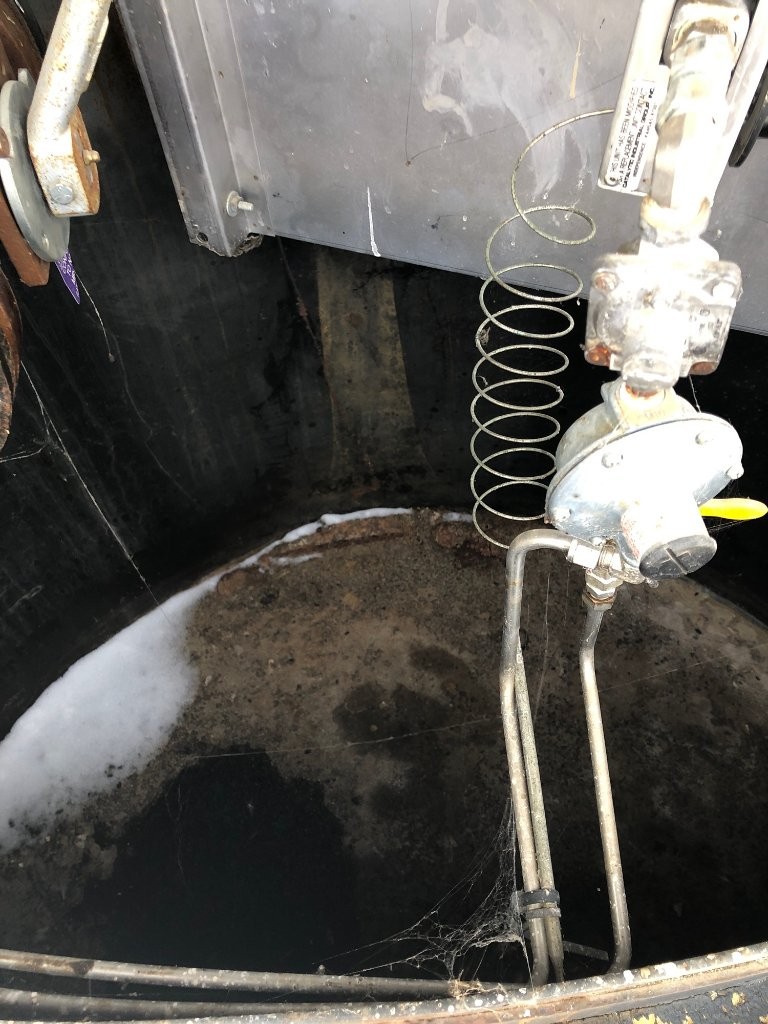

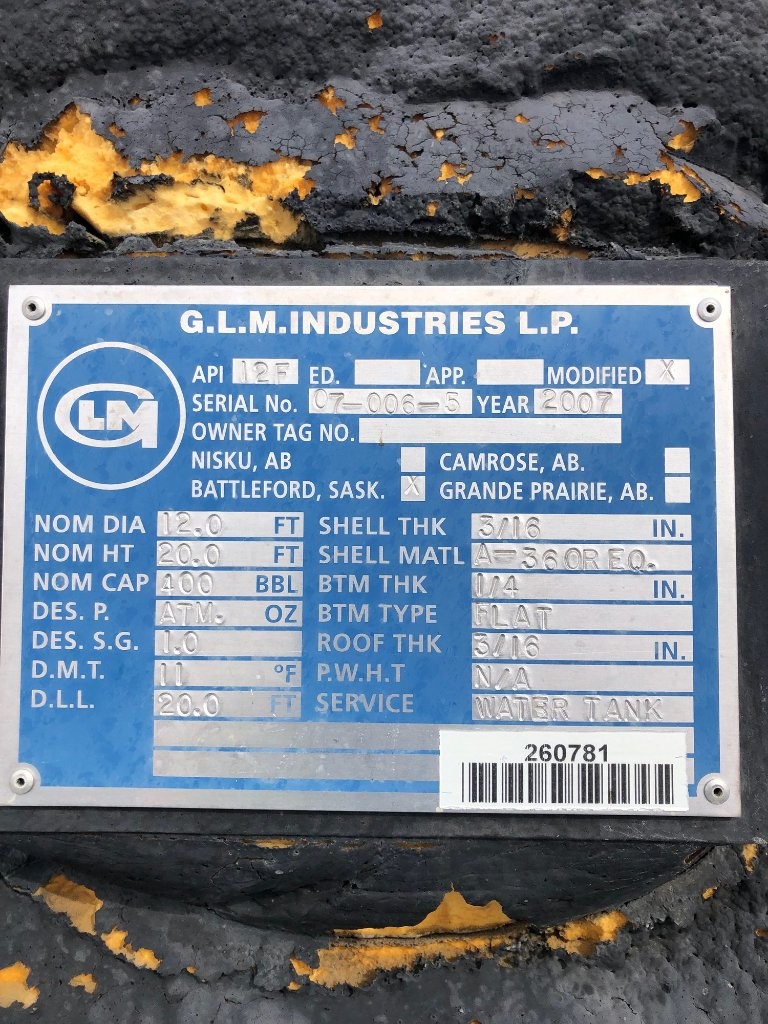

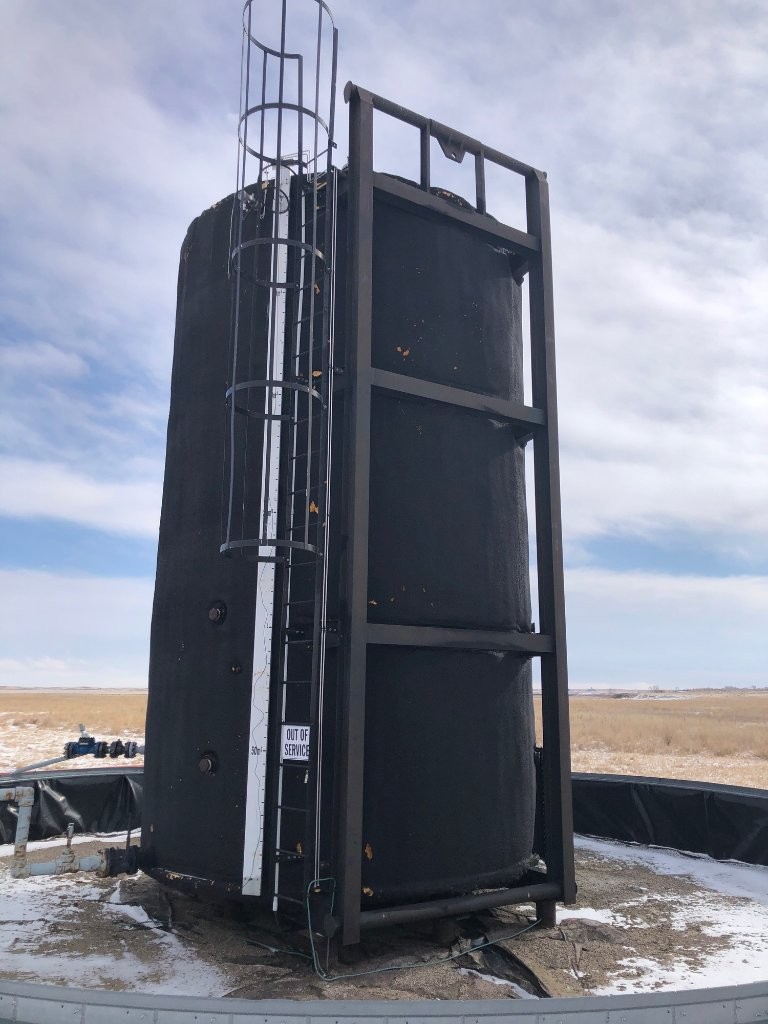

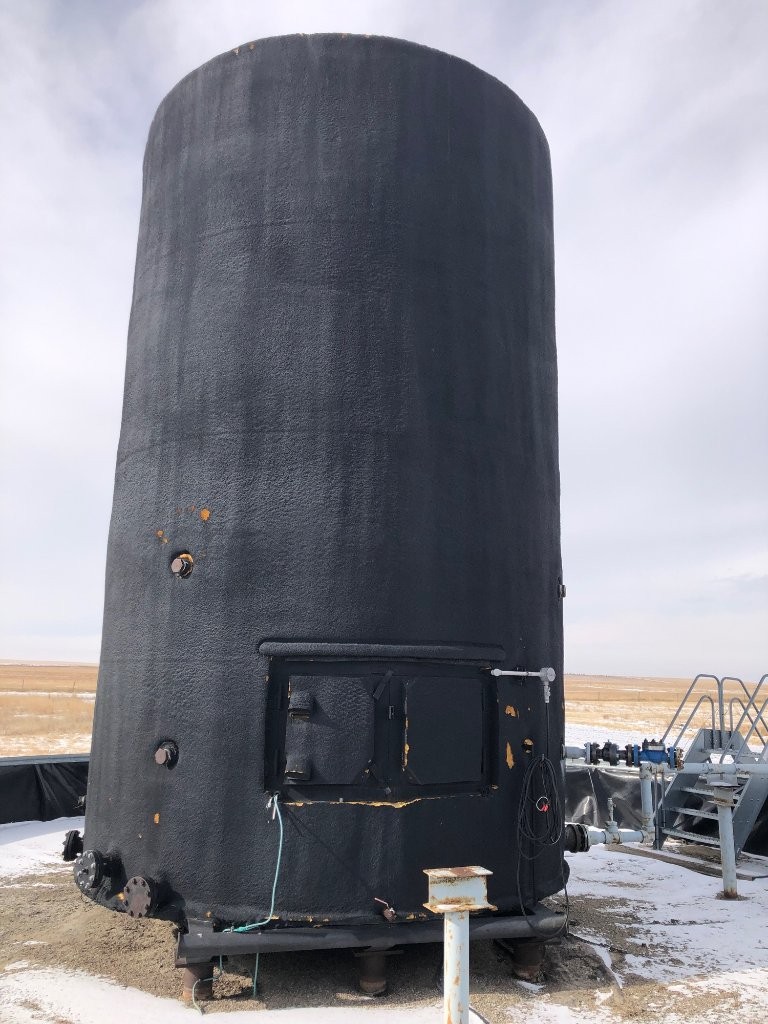

This 400 BBL insulated storage tank was built in 2007 by GLM Industries L.P. of Battleford, Sask. to API 12F, Mod X, in water service. The vertical flat-bottom tank measures 12.0 ft diameter by 20.0 ft height in A-36 material, with 3/16 in. shell and roof, a 1/4 in. flat bottom, and an MDMT of 11 °F (Serial # 07-006-5). Spray-foam insulation and an internal flameless gas heater assembly keep contents from freezing through winter production, while the caged ladder and external level gauge allow safe gauging from top or grade. Heated, insulated 400 BBL tanks of this type are the standard for produced water and fluid storage at single-well batteries and water hubs across Alberta. The tank is offered in Used (C) condition, and the photo bears that out: the black protective coating over the foam is weathered, with chips exposing yellow foam around the lower nozzles and the bolted manway cover, which still carries a UN 1267 placard, and the tank stands in a lined containment berm with its ladder-equipped skid frame attached.
