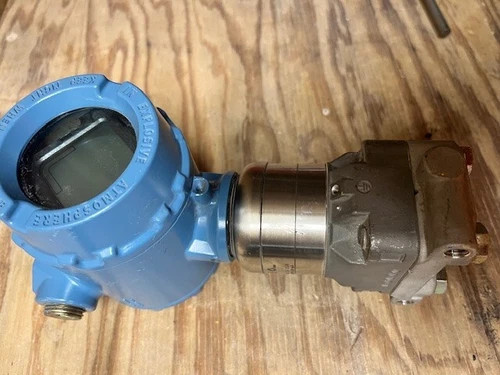

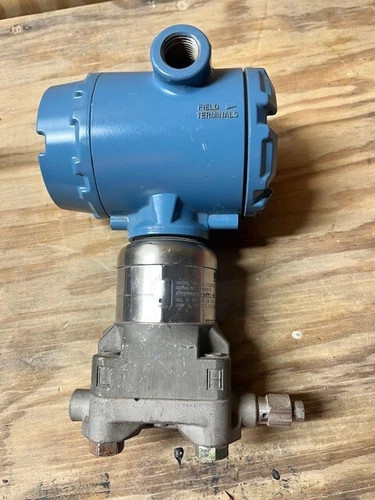

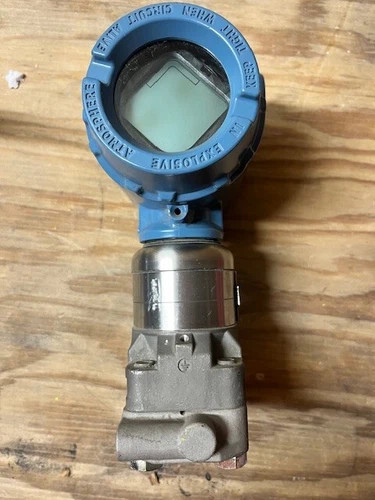

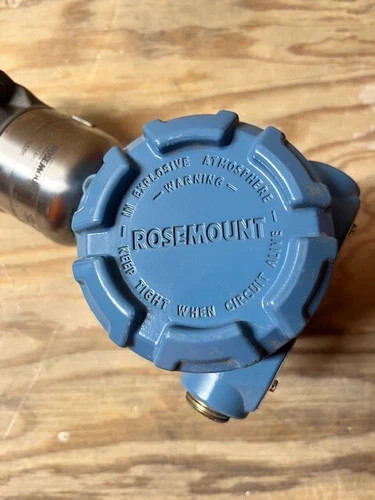

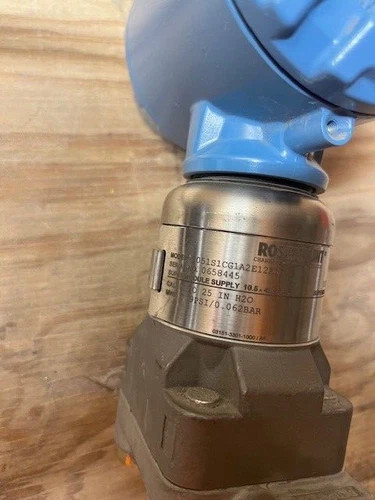

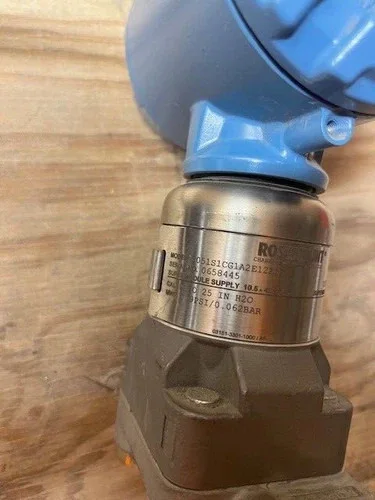

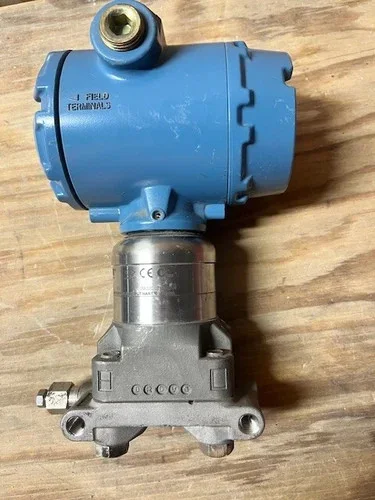

Rosemount 3051S1CG1A2E12A1AM5 Gauge Pressure Transmitter with Display
Rosemount (Emerson)Model:3051S1CG1A2E12A1AM5
Location unavailable
Pressure Transmitter
Qty:1
Condition: New
At a glance
- Product
- Rosemount 3051S1CG1A2E12A1AM5 Gauge Pressure Transmitter with Display
- Manufacturer
- Rosemount (Emerson)
- Model
- 3051S1CG1A2E12A1AM5
- Category
- Pressure Transmitter
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Controlview Automation
- Listed on
Key specifications
- Accuracy
- 0.04
- Display
- true
- Hazardous Area Certification
- ATEX, FM, CSA Explosion-proof
- Housing Material
- Aluminum
- Operating Temperature Max
- 85°F
- Operating Temperature Min
- -40°F
- Output Signal
- 4-20 mA with HART
- Pressure Max
- 25psi
- Pressure Min
- 0psi
- Pressure Type
- Gauge
- Process Connection
- Coplanar flange
- Wetted Materials
- 316L Stainless Steel
Supporting evidence
No supporting documents or certifications provided.
Description
The Rosemount 3051S1CG1A2E12A1AM5 is a high-performance gauge pressure transmitter from Emerson's Rosemount line, designed for precise measurement in industrial applications. It features a coplanar design that allows for easy integration with manifolds and remote seals, making it ideal for process control in industries such as oil and gas, chemical processing, and water treatment. Key benefits include exceptional accuracy of up to 0.04% of span, robust construction for harsh environments, and advanced diagnostics via HART protocol for predictive maintenance. The integrated LCD display (M5 option) provides on-site readability of pressure readings, diagnostics, and configuration. Compared to similar products like the Yokogawa EJA series, the 3051S offers superior scalability and lower total cost of ownership due to its modular design and long-term stability. Drawbacks may include higher initial cost and the need for compatible mounting hardware. This model supports a gauge pressure range of 0-25 inches H2O, with 4-20 mA HART output, aluminum housing, and a mounting bracket. It excels in low-pressure applications where reliability and minimal drift are critical, ensuring consistent performance over time.
