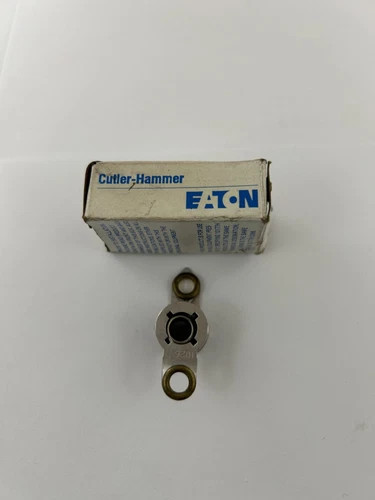

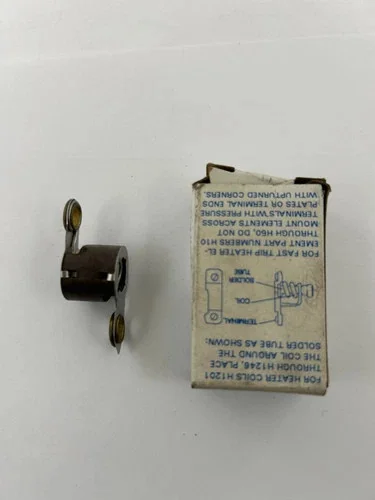

Cutler-Hammer H1026 Overload Relay Heater Coil
Cutler-HammerModel:H1026
Location unavailable
Electrical Equipment
Qty:1
Condition: New
At a glance
- Product
- Cutler-Hammer H1026 Overload Relay Heater Coil
- Manufacturer
- Cutler-Hammer
- Model
- H1026
- Category
- Electrical Equipment
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Motor Control Center
- Listed on
Key specifications
- Ambient Temperature Max
- 65°F
- Ambient Temperature Min
- -40°F
- Compatibility
- Cutler-Hammer NEMA Size 00-2 Overload Relays (e.g., C306, Freedom Series)
- Full Load Amps (FLA) Max
- 1.96A
- Full Load Amps (FLA) Min
- 1.79A
- Maximum Voltage Rating
- 600V
- Trip Class
- 20
Supporting evidence
No supporting documents or certifications provided.
Description
The Cutler-Hammer H1026 is a heater coil designed for use in overload relays, specifically for motor protection in industrial control systems. This component is part of the legacy Cutler-Hammer line, now under Eaton, and is used in NEMA-rated motor starters to detect and protect against motor overload conditions by heating up and tripping the relay when current exceeds safe levels. It is compatible with various Cutler-Hammer overload relays, such as those in the Freedom or Citation series. Key features include precise thermal response for accurate overload detection, durable construction for harsh industrial environments, and easy installation via screw terminals. Advantages over similar products include reliable performance in high-vibration settings and compatibility with older systems, reducing the need for full relay replacements. Drawbacks may include limited availability due to its legacy status and the need for exact matching to motor FLA ratings. Typical applications are in manufacturing, HVAC systems, pumps, and conveyor motors. For detailed model decoding, refer to Eaton's heater pack selection guides, which break down 'H' series codes by amp ranges. Condition from images: Appears new or unused, in original packaging with instructions. Estimated market price: $10-20 USD based on online listings for similar used/new surplus parts. Attached resources: Eaton Overload Relay Heater Pack Catalog (summary: PDF available at eaton.com, includes selection tables for H-series heaters); Cutler-Hammer Motor Control Handbook (browse eaton.com for PDF download, covers installation and compatibility).
Location unavailable for this listing.
