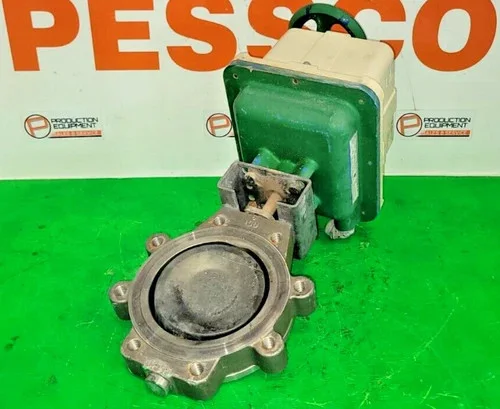

Bray 6 Inch Lug Style Butterfly Valve CF8M with Van Zandt LADCX3000UA32-UP Electric Actuator
Bray ControlsModel:Series 31 CF8M (Valve) / LADCX3000UA32-UP (Actuator)
Midland, TX
Butterfly Valve
Qty:1
Condition: Used
At a glance
- Product
- Bray 6 Inch Lug Style Butterfly Valve CF8M with Van Zandt LADCX3000UA32-UP Electric Actuator
- Manufacturer
- Bray Controls
- Model
- Series 31 CF8M (Valve) / LADCX3000UA32-UP (Actuator)
- Category
- Butterfly Valve
- Condition
- USED
- Availability
- In stock
- Price or process
- $375.00 USD
- Quantity
- 1
- Lead time
- Not provided
- Location
- Midland, TX
- Fulfillment
- Pickup and shipping available
- Seller
- PESSCO
- Listed on
Key specifications
- Actuator Voltage
- 12VDC / 24VDC / 36V / 115VAC / 230VAC
- Connection Type
- Lug Style (ANSI Class 150)
- Enclosure Rating
- NEMA 4 (Weatherproof)
- Material
- CF8M (316 Stainless Steel)
- Pressure Rating
- 285
- Stroke Time
- 60s
- Temperature Max
- 400°F
- Temperature Min
- -20°F
- Valve Size
- 6in
Supporting evidence
No supporting documents or certifications provided.
Description
The Bray 6-inch lug style butterfly valve is a resilient seated valve designed for reliable shut-off and throttling in industrial applications such as water treatment, chemical processing, HVAC, and food & beverage systems. Constructed from CF8M (316 stainless steel) for corrosion resistance, it features a lug body for easy installation between flanges without nuts on the valve side. Rated for Class 150 with a maximum pressure of 285 PSIG at 100°F, it offers bi-directional sealing and low torque operation. The attached Van Zandt LADCX3000UA32-UP electric actuator provides automated control with multi-voltage compatibility (12VDC/24VDC/36V/115VAC/230VAC) and a 90° stroke time of 60 seconds. Benefits include durability in harsh environments, ease of maintenance, and precise flow control. Drawbacks may include the need for repair (as noted on the asset tag) and higher initial cost compared to manual valves. This combination outperforms basic manual valves in automated systems by enabling remote operation and integration with control systems, though it requires electrical power and periodic servicing.
