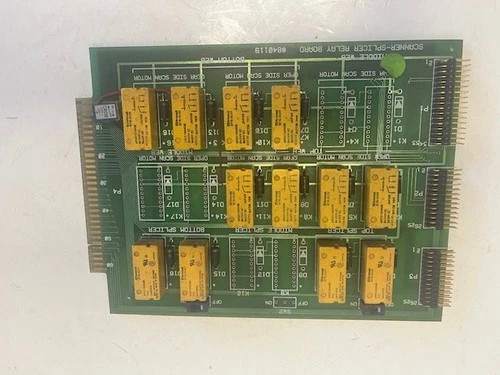

Quad-Tech QTI 840119 Scanner Splicer Relay Board
Quad-TechModel:840119
Location unavailable
Other
Qty:1
Condition: New
At a glance
- Product
- Quad-Tech QTI 840119 Scanner Splicer Relay Board
- Manufacturer
- Quad-Tech
- Model
- 840119
- Category
- Other
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Controlview Automation
- Listed on
Key specifications
- Compatible System
- Quad-Tech Scanner and Splicer Systems in Web Offset Printing Presses
- Connector Type
- Edge Card Connectors (Gold-Plated)
- Load Current Rating
- 10A
- Operating Temperature Max
- 60°F
- Operating Temperature Min
- 0°F
- Relay Contact Rating
- 24
- Relay Count
- 16
Supporting evidence
No supporting documents or certifications provided.
Description
The Quad-Tech QTI 840119 Scanner Splicer Relay Board is a specialized printed circuit board designed for use in printing press control systems, particularly in web offset printing environments. Manufactured by Quad/Tech International, this relay board facilitates the control of scanner and splicer functions, managing motor operations such as open side scan motors, gear side scan motors, and splicer solenoids. It features multiple electromechanical relays for switching high-current loads, ensuring reliable signal routing in automated splicing and scanning processes. Key benefits include enhanced operational efficiency in high-speed printing lines, reduced downtime through robust relay switching, and compatibility with Quad-Tech's press control ecosystems. Drawbacks may include the need for periodic relay maintenance due to mechanical wear and potential obsolescence in newer digital systems. Compared to similar relay boards from competitors like Goss or Heidelberg, the QTI 840119 offers superior integration with legacy Quad-Tech scanners, providing precise control for web handling applications in newspaper, magazine, and packaging printing. Its design supports industrial environments with vibration resistance and easy plug-in installation, making it ideal for retrofitting older presses while maintaining high reliability in continuous operation.
