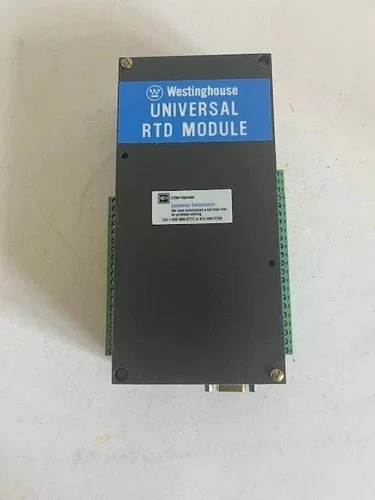

Westinghouse Universal RTD Module 2D78559G01
Westinghouse Cutler Hammer (now Eaton)Model:2D78559G01
Location unavailable
Other
Qty:1
Condition: New
At a glance
- Product
- Westinghouse Universal RTD Module 2D78559G01
- Manufacturer
- Westinghouse Cutler Hammer (now Eaton)
- Model
- 2D78559G01
- Category
- Other
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Controlview Automation
- Listed on
Key specifications
- Accuracy
- 0.1
- Communication Interface
- RS-232 via DB9 connector
- Isolation Voltage
- 1500V
- Number of Channels
- 6
- Operating Temperature Max
- 60°F
- Operating Temperature Min
- 0°F
- Power Supply Voltage Max
- 30V DC
- Power Supply Voltage Min
- 18V DC
- Supported RTD Types
- Pt100, Pt1000, Ni100, Ni120, Cu10
- Temperature Max
- 850°F
- Temperature Min
- -200°F
Supporting evidence
No supporting documents or certifications provided.
Description
The Westinghouse Universal RTD Module 2D78559G01, now under Eaton's portfolio following acquisitions, is a versatile input module designed for precise temperature monitoring in industrial control systems. It interfaces with Resistance Temperature Detectors (RTDs) to convert resistance changes into temperature data, supporting applications in process control, manufacturing, and HVAC systems. Key features include multi-channel support for up to 6 RTD inputs, compatibility with various RTD types such as Pt100, Ni100, and Cu10, and serial communication via RS-232 for integration with PLCs or SCADA systems. Advantages over similar products include its robust design for harsh environments, high accuracy in temperature readings, and ease of configuration, reducing downtime in critical operations. Drawbacks may include limited modern connectivity options compared to newer Ethernet-based modules and potential obsolescence in legacy systems. This module excels in legacy Westinghouse or Eaton IQ systems, offering reliable performance for temperature-critical processes like chemical processing or power generation. Its compact form factor allows for easy DIN-rail or panel mounting, making it ideal for retrofitting older automation setups while providing cost-effective upgrades over full system replacements.
