IDS Gemini 750 1500HP Drilling Rig 17
IDSModel:Gemini 750
Houston, TX
Oilfield Drilling Equipment
Qty:1
Condition: Used
At a glance
- Product
- IDS Gemini 750 1500HP Drilling Rig 17
- Manufacturer
- IDS
- Model
- Gemini 750
- Category
- Oilfield Drilling Equipment
- Condition
- USED
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Houston, TX
- Fulfillment
- Pickup and shipping available
- Listed on
Key specifications
- BOP / Well Control Accumulator
- 6-Station
- BOP / Well Control Annular
- 13-5/8" 5M Annular
- BOP / Well Control Choke Manifold
- 4" 10K
- BOP / Well Control Double Ram
- Per Contract
- BOP / Well Control Single Ram
- 13-5/8" 10M
- Drawworks & Top Drive Drawworks
- IDS AC 1500HP
- Drawworks & Top Drive Drill Line
- 1-3/8"
- Drawworks & Top Drive Feature
- Rockit Capability
- Drawworks & Top Drive Top Drive
- Canrig 350-ton AC
- Drawworks & Top Drive Traveling Block
- 500-ton, 6 Sheave, 12-line
- Drawworks Drill Line
- 1-3/8"
- Drawworks Horsepower
- 1500HP
- Drawworks Make
- IDS AC
- Drawworks Model
- GEB-28 AC Traction, S/N 10127, Hours: 21458
- Drawworks Rating
- 1500 HP
- Engine Model
- Caterpillar 3512, 1476HP each; Hours: 32116/32789/31727 (Eng 1/2/3), S/N: LLA02716/LLA04809/LLA02746
- Engine Quantity
- 3
- Engines Engines
- 4Ã Caterpillar 3512C, 1476HP
- Engines Fuel Tank
- 12,000 Gallon
- Engines Generator Sets
- 1365kW Unitized
- Generator Sets
- Kato Engineering WEG 1375kW
- Hook Load Capacity
- 750000ST
- Mast & Substructure Hook Load
- 750,000 lbs
- Mast & Substructure Mast
- Gemini 142' Hydraulic Telescoping
- Mast & Substructure Racking Capacity
- 21,000 ft with 5" drill pipe
- Mast & Substructure Rotary Load
- 750,000 lbs
- Mast & Substructure Substructure
- Gemini 22', 18' Clear Height
- Mast Height
- 142' Hydraulic Telescoping
- Mast Hook Load
- 750,000 lbs
- Mast Make
- Gemini
- Mast Racking Capacity
- 21,000 ft (5" DP)
- Mast Raise/Lower
- Hydraulic Cylinders
- Mud Pump Model

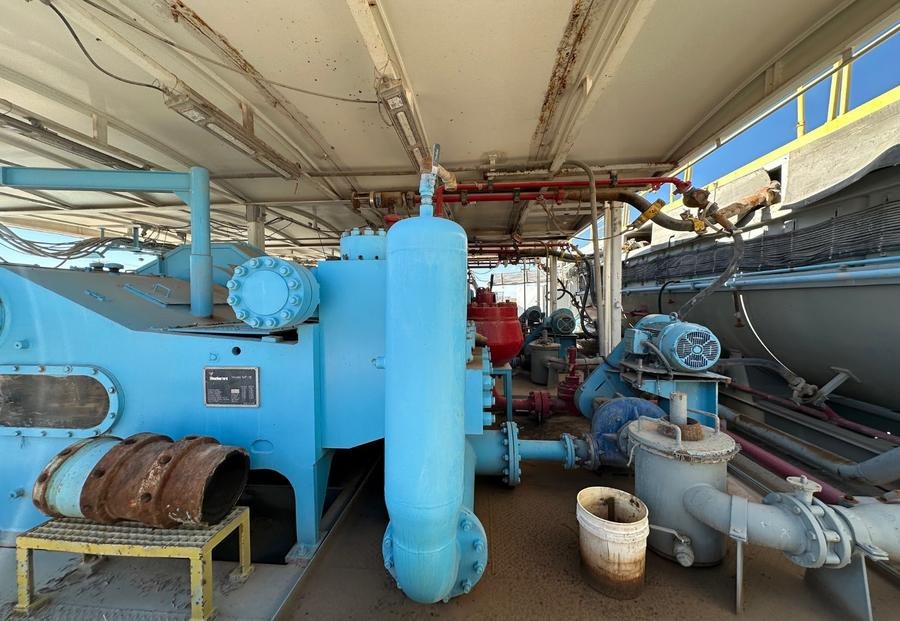

- Weatherford MP-16 Triplex, 7500 PSI, 5.5" Ceramic Liners, GEB-29A1A AC Motor; Hours: 15498/14345/12648 (MP1/2/3), S/N: W270/W294/W304
- Mud Pump Quantity
- 3
- Mud Pumps & BOP Annular BOP
- 13-5/8" 5M
- Mud Pumps & BOP Mud Pumps
- 3Ã 1600HP Triplex AC, 7500 PSI
- Mud Pumps & BOP Mud Tanks
- 850 BBL Total Active Capacity
- Mud Pumps & BOP Ram BOP
- 13-5/8" 10M Single + Double
- Mud Pumps Qty
- 3Ã 1600HP Triplex AC
- Mud Pumps Tanks
- 850 BBL Active
- Mud Pumps Working Pressure
- 7500 PSI
- Power Package Distribution
- 4160V Reel Rig System
- Power Package Engines
- 4Ã Caterpillar 3512C, 1476HP
- Power Package Fuel Tank
- 12,000 Gallon
- Power Package Generator Sets
- 1365kW Unitized
- Rotary System
- GDM 500 1200HP AC, S/N 42, Hours: 15483
- Substructure Height
- 22', 18' Clear
- Substructure Make
- Gemini
- Substructure Raise/Lower
- Hydraulic Cylinders
- Substructure Rotary Load
- 750,000 lbs
- Substructure Setback Load
- 500,000 lbs
- Top Drive Feature
- Rockit Capability
- Top Drive Make / Model
- Canrig 350-ton AC
- Top Drive Traveling Block
- 500-ton, 6 Sheave, 12-line
Supporting evidence
No supporting documents or certifications provided.
Description

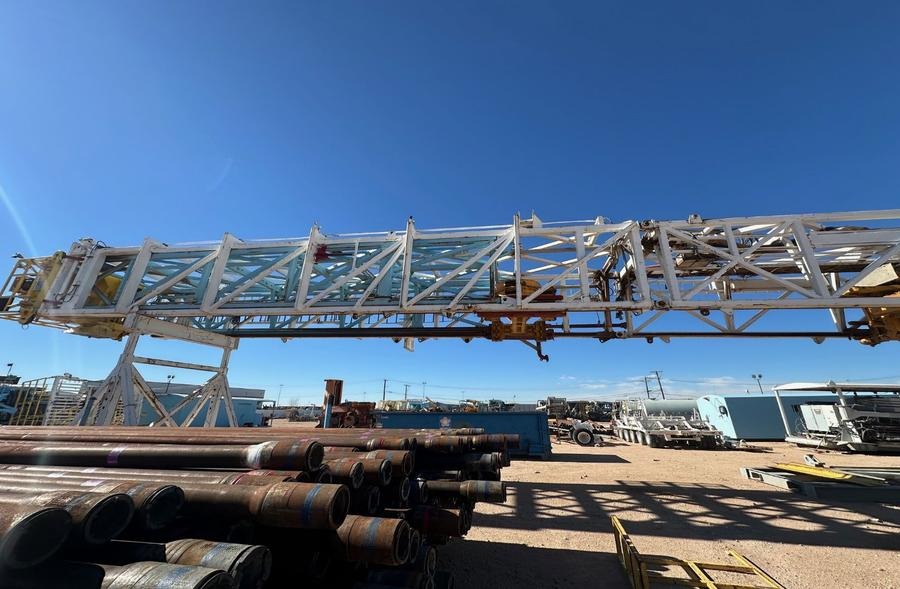

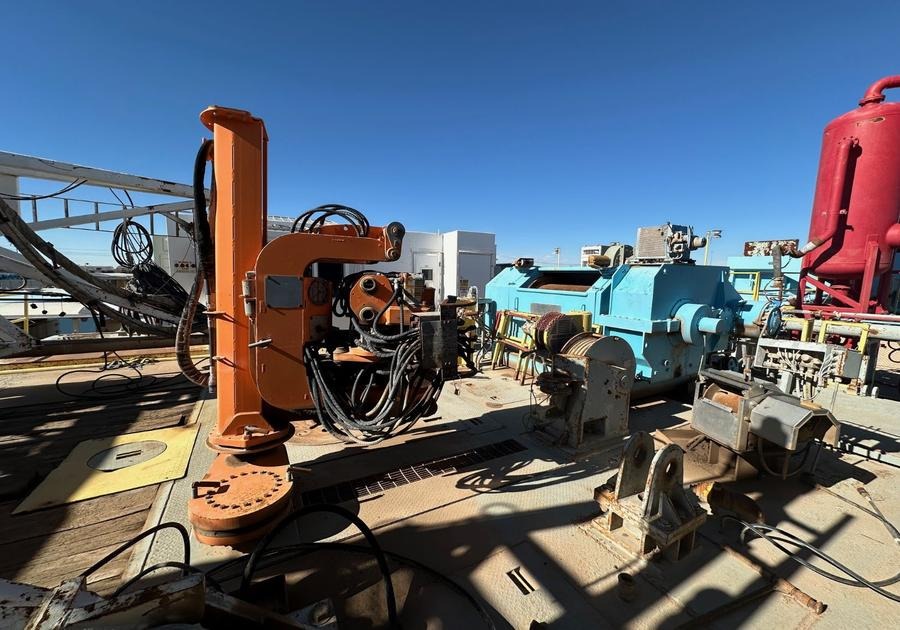

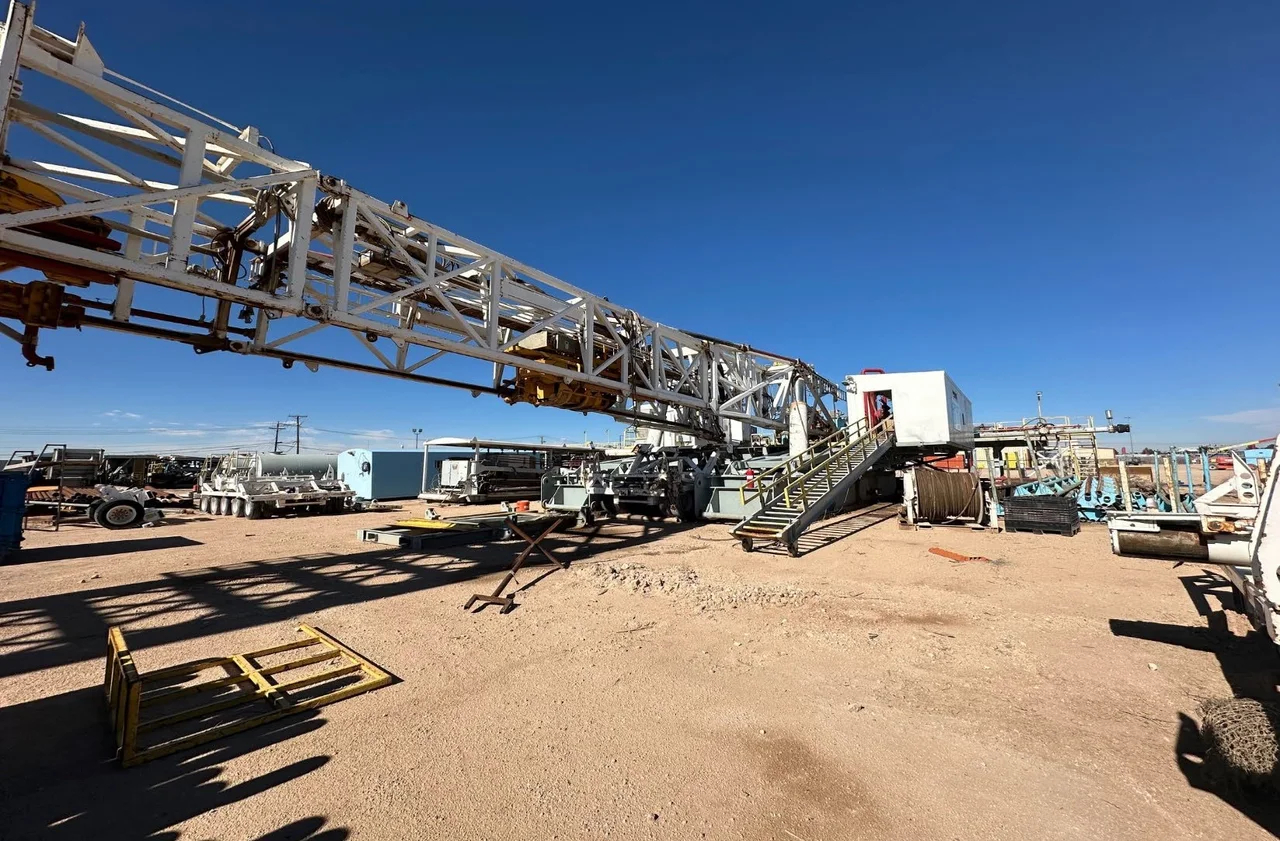

IDS Gemini 750 Series Rig 17 features a 142-foot hydraulic telescoping mast rated 750,000 lb hook load with 21,000 ft racking capacity. Powered by four Cat 3512C diesel engines driving 1365kW generator sets, with an IDS AC 1500HP drawworks, Canrig 350-ton AC top drive (Rockit-capable), and three 1600HP triplex AC mud pumps at 7500 PSI. Reel Rig 4160V AC distribution system throughout.
