16″ 1480psi Sweet Vertical Separator Packages
Crossfield, AB
Separation Equipment
Qty:25
Condition: Used
At a glance
- Product
- 16″ 1480psi Sweet Vertical Separator Packages
- Manufacturer
- Not provided
- Model
- Not provided
- Category
- Separation Equipment
- Condition
- USED
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 25
- Lead time
- Not provided
- Location
- Crossfield, AB
- Fulfillment
- Pickup and shipping available
- Seller
- Inclusive Energy
- Listed on
Key specifications
- Condition
- Used
- Construction Type
- Tank/Separator Combination
- Electrical Scope
- Full Electrical Scope
- Lot Quantity
- 25
- MAWP
- 1480 psi
- Orientation
- Vertical
- Phase Separation
- 3-Phase or 2-Phase
- Service Type
- Sweet & Sour
- Tank Capacity
- 100-200 BBL tank options
- Vessel Diameter
- 16 in
- Vessel Length (Seam to Seam)
- 7.5
Supporting evidence
No supporting documents or certifications provided.
Description

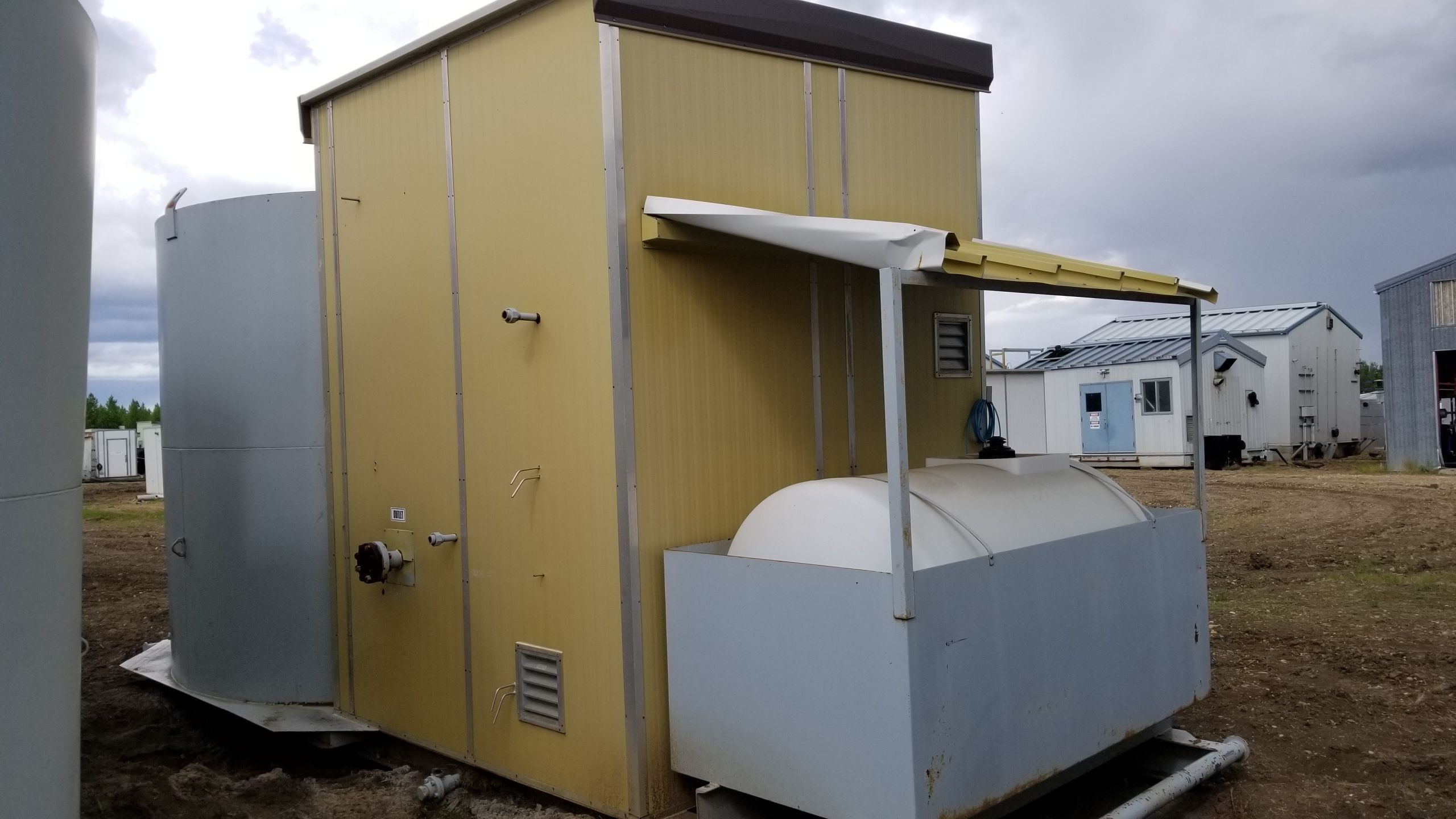

These 16″ 1480 psi vertical separator packages are tank/separator combination units for wellsite production service, with 25 lightly used packages available. Each is built around a 16-inch diameter vertical separator rated to 1480 psi MAWP, dressed in either three-phase or two-phase configuration for sweet and sour service, and combined with an integral storage tank in 100 BBL to 200 BBL options — a layout that puts separation and on-site storage into a single transportable package and cuts wellsite hookup time. A representative package measures roughly 25 ft by 10 ft with a height of about 12 ft, at approximately 5,500 kg. The photographs show a yellow metal-clad separator enclosure built onto a large grey vertical tank fitted with an external level gauge board, cage ladder and grounding and no-smoking signage, with further matching packages lined up behind; panels, decals and coatings present clean and intact, consistent with lightly used equipment. Located in Crossfield, Alberta.
