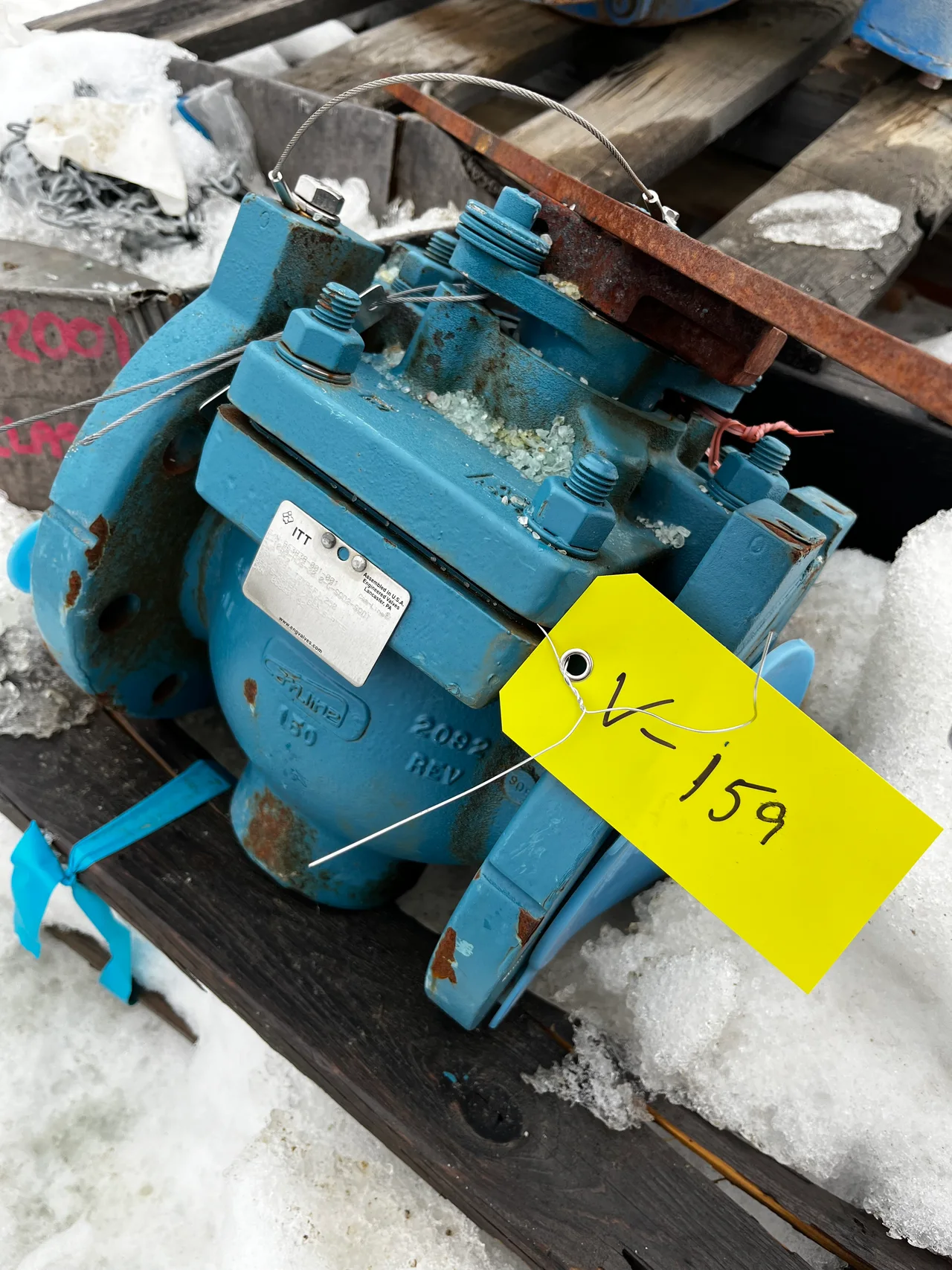

ITT Dia-Flo Weir Diaphragm Valve 4-inch Class 150
ITT Engineered ValvesModel:HDG-302-30-0-250-S-P-TFE
Red Deer, AB
Other
Qty:1
Condition: New
At a glance
- Product
- ITT Dia-Flo Weir Diaphragm Valve 4-inch Class 150
- Manufacturer
- ITT Engineered Valves
- Model
- HDG-302-30-0-250-S-P-TFE
- Category
- Other
- Condition
- NEW
- Availability
- In stock
- Price or process
- Make an offer
- Quantity
- 1
- Lead time
- Not provided
- Location
- Red Deer, AB
- Fulfillment
- Pickup and shipping available
- Seller
- OTG
- Listed on
Key specifications
- Actuation Type
- Manual Handwheel
- Body Material
- Cast Iron
- Connection Type
- Flanged ANSI Class 150
- Diaphragm Material
- PTFE
- Nominal Size
- 4in
- Pressure Rating
- 150
- Serial Number
- 130239-30-001-5001
- SKU
- V-159
- Temperature Max
- 250°F
- Temperature Min
- -20°F
Supporting evidence
No supporting documents or certifications provided.
Description
The ITT Dia-Flo Weir Diaphragm Valve is a robust, handwheel-operated valve designed for reliable shut-off and throttling in corrosive or abrasive fluid applications. This 4-inch model features a cast iron body with a protective blue coating, PTFE diaphragm for chemical resistance, and flanged connections rated for Class 150. It excels in industries like chemical processing, pharmaceuticals, and water treatment, offering bubble-tight shutoff, minimal maintenance, and easy diaphragm replacement without removing the valve from the line. Advantages include superior corrosion resistance compared to standard gate valves, reduced leakage risks, and compatibility with slurries or viscous media. Drawbacks may include higher initial cost and limited high-pressure capabilities versus ball valves.
