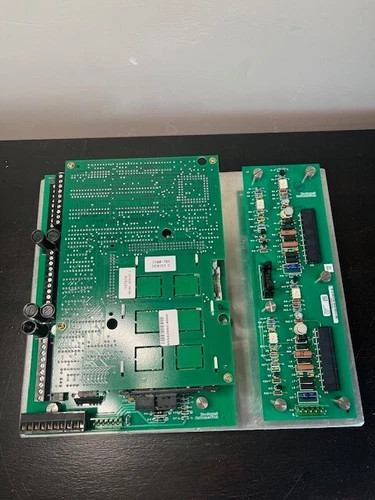

Allen-Bradley 3500-TBX Interface Board
Allen-BradleyModel:3500-TBX
Location unavailable
Automation
Qty:1
Condition: New
At a glance
- Product
- Allen-Bradley 3500-TBX Interface Board
- Manufacturer
- Allen-Bradley
- Model
- 3500-TBX
- Category
- Automation
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Controlview Automation
- Listed on
Key specifications
- Communication Protocol
- Remote I/O (RIO), Fiber Optic
- Compatible Drives
- Bulletin 3500 AC Drives (e.g., 3500-NA2, 1336 PLUS)
- Firmware Version
- 3
- Input/Output Channels
- 8
- Operating Temperature Max
- 60°F
- Operating Temperature Min
- 0°F
- Operating Voltage
- 24
- Replacement For
- 3500-TSI / 189-TSI
Supporting evidence
No supporting documents or certifications provided.
Description
The Allen-Bradley 3500-TBX Interface Board is a specialized component designed for use in industrial AC drive systems, serving as a direct replacement for the older 3500-TSI Tach Serial Interface Board. This board facilitates communication and control between the drive and external devices, supporting microprocessor-based operations for enhanced reliability in automation environments. Key applications include integration with Bulletin 3500 AC Drives, such as the 3500-NA2, for tasks like speed control, fault monitoring, and I/O management in manufacturing, material handling, and process control systems. Features include multiple I/O channels for digital inputs/outputs, fiber optic communication options, and compatibility with Allen-Bradley Remote I/O networks. Advantages over similar products include robust construction for harsh industrial settings, easy retrofit capabilities reducing downtime, and improved data transmission accuracy compared to legacy interfaces. However, it may require firmware updates for optimal performance with newer drive models, and its age could limit compatibility with the latest protocols. The board in the images appears to be in used but good condition, with no visible damage, mounted on a metal baseplate, and includes labels indicating version 3 firmware. Estimated dimensions and weight are based on visual analysis and typical PCB assemblies of this type.
