Control Terminal Board 5823-0002-000
Unknown (Possibly Honeywell or Trane)Model:5823-0002-000
Location unavailable
Automation
Qty:1
Condition: New
At a glance
- Product
- Control Terminal Board 5823-0002-000
- Manufacturer
- Not provided
- Model
- 5823-0002-000
- Category
- Automation
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Motor Control Center
- Listed on
Key specifications
- Condition
- Used
- Current Rating per Terminal
- 10A
- Mounting Type
- Screw-mounted with holes
- Number of Terminals
- 8
- Position Labels
- TR, G, W2, F1, C, R, W1, F2
- Voltage Rating
- 120V
Supporting evidence
No supporting documents or certifications provided.
Description

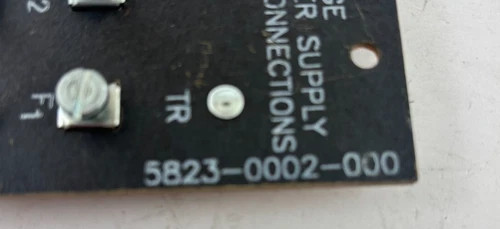

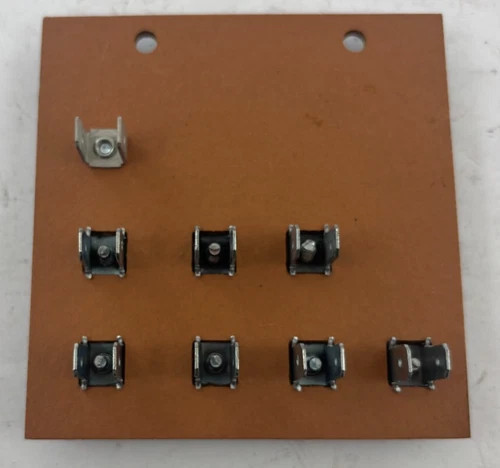

The Control Terminal Board 5823-0002-000 is a specialized electrical component designed for use in industrial control systems, likely part of HVAC, furnace, or process control applications. Based on analysis of the provided images, this board facilitates secure connections for line voltage and control signals, featuring labeled terminals such as TR (transformer), G (fan/ground), W2 (second-stage heat), F1 (fuse 1), C (common), R (24V hot), W1 (first-stage heat), and F2 (fuse 2). It serves as an interface for wiring power supplies, sensors, and actuators in automated systems. Key benefits include reliable connectivity in high-voltage environments, easy installation with screw terminals, and built-in safety cautions for disconnecting power before connections to prevent electrical hazards. Drawbacks may include limited compatibility with modern digital systems without adapters and potential wear in used conditions. Compared to similar products like Honeywell or White-Rodgers terminal boards, it offers robust construction for industrial durability but may lack advanced features like integrated diagnostics. Typical applications include boiler controls, air handling units, and legacy process automation. The board appears used with minor wear, no visible damage, and no attached child assets. For precise manufacturer identification, further research is recommended as no logo is visible in images.
