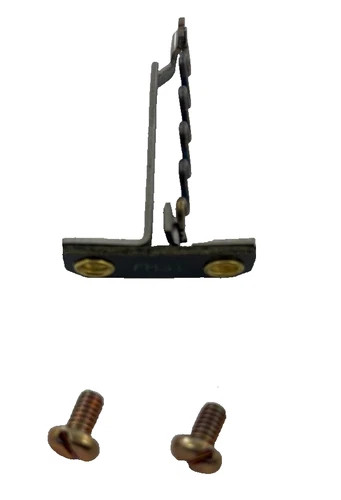

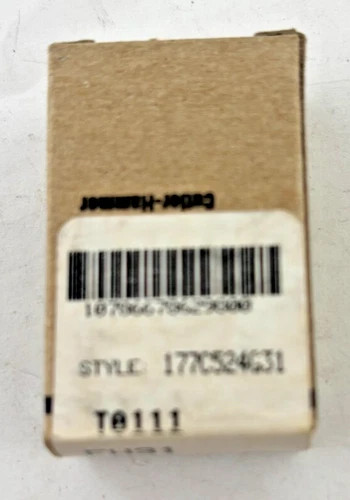

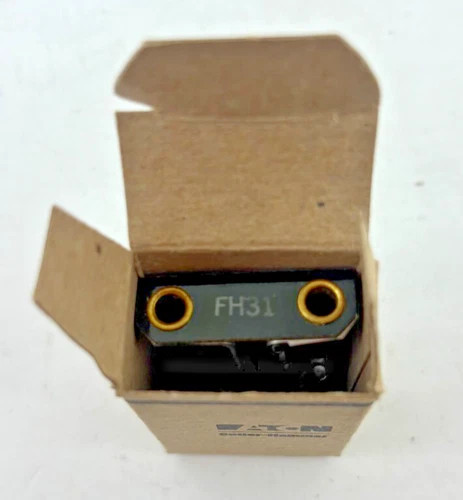

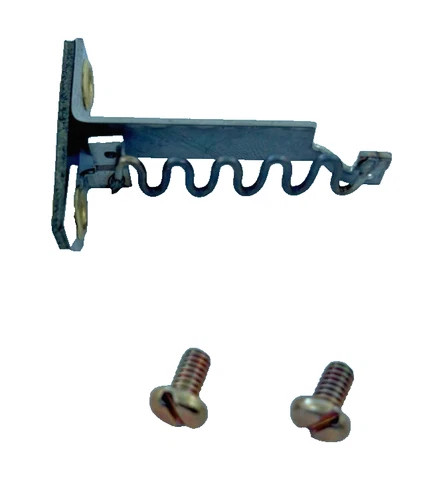

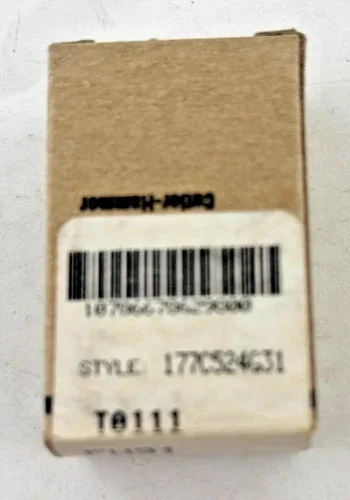

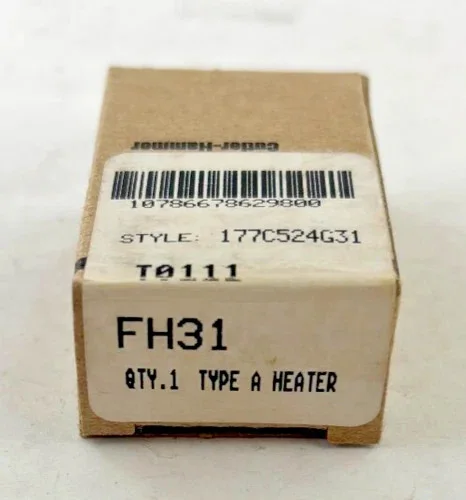

Eaton FH31 Type A Overload Heater Element 177C524G31

The Eaton FH31 Type A Overload Heater Element (style 177C524G31) is a thermal protection component designed for use in motor control centers and starters, specifically compatible with Eaton's Freedom Series and A200 Series overload relays. This heater element provides reliable overload protection by sensing excessive current and heat in motor circuits, preventing damage from prolonged overloads or phase imbalances. It is ideal for industrial applications such as conveyor systems, pumps, and HVAC equipment where motor protection is critical. Key features include a bimetallic design for accurate thermal response, easy installation with screw terminals, and compatibility with NEMA size 0 and 1 starters. Advantages over similar products include Eaton's robust construction for longer lifespan, precise trip characteristics to minimize nuisance trips, and cost-effectiveness for maintenance replacements. Drawbacks may include the need for exact matching to motor full-load amperage (FLA) to avoid improper protection, and it requires periodic inspection in high-vibration environments. This unit is rated for motors with FLA between 2.10 and 2.30 amps, offering Class 20 protection with a trip time of 20 seconds at 600% overload. Overall, it enhances system reliability and safety in demanding industrial settings.
