SEW Eurodrive DRN90S4/FG/MM11/MO Helical Gear Motor
SEW-EurodriveModel:DRN90S4/FG/MM11/MO
Location unavailable
Motors
Qty:1
Condition: New
At a glance
- Product
- SEW Eurodrive DRN90S4/FG/MM11/MO Helical Gear Motor
- Manufacturer
- SEW-Eurodrive
- Model
- DRN90S4/FG/MM11/MO
- Category
- Motors
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Motor Control Center
- Listed on
Key specifications
- Ambient Temperature Max
- 40°F
- Ambient Temperature Min
- -20°F
- Current
- 2.1A
- Enclosure Type
- IP55 TEFC
- Frequency
- 50/60Hz
- Gear Type
- Helical
- Horsepower
- 1.5HP
- Insulation Class
- 155(F)
- Nominal Speed
- 1700RPM
- Rated Power
- 1.1kW
- Voltage Max
- 500V
- Voltage Min
- 380V
Supporting evidence
No supporting documents or certifications provided.
Description

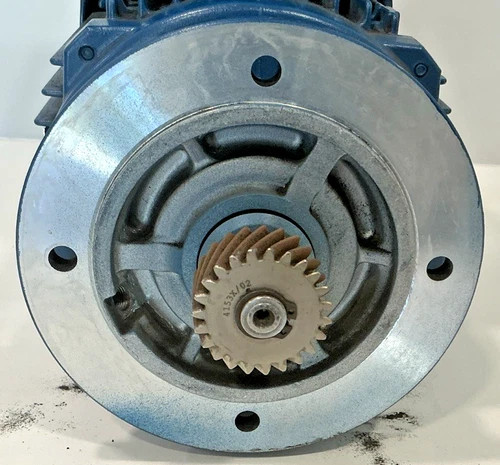

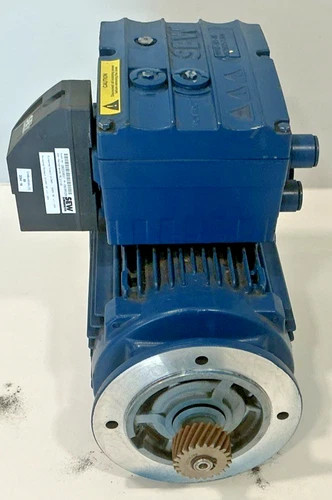

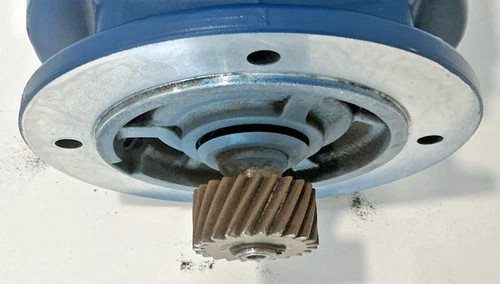

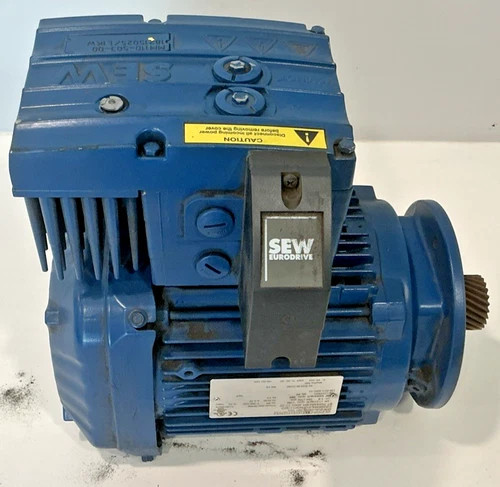

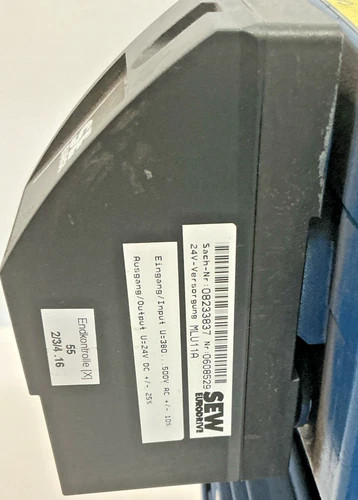

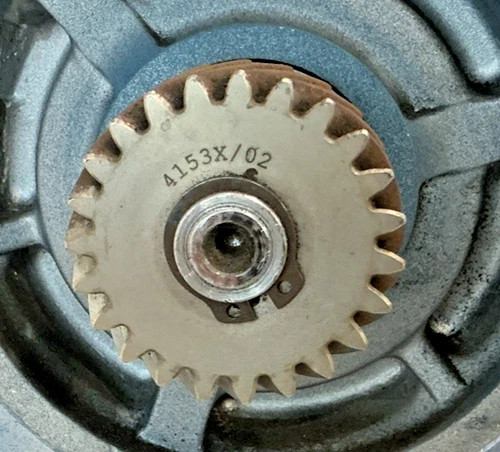

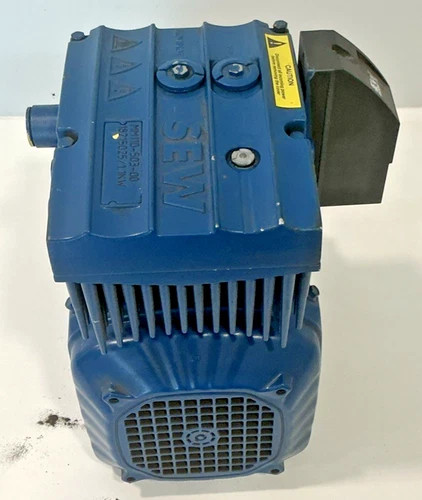

The SEW Eurodrive DRN90S4/FG/MM11/MO is a robust, high-efficiency helical gear motor designed for demanding industrial applications such as conveyor systems, material handling, and automation equipment. Combining a DRN series AC motor with a helical gear unit, this model offers reliable torque transmission and variable speed capabilities, making it ideal for environments requiring precise control and durability. Key features include inverter duty compatibility for seamless integration with variable frequency drives, IP55 protection for dust and water resistance, and TEFC enclosure for thermal efficiency. Advantages over similar products include superior energy efficiency (IE3 rating), low noise operation, and modular design for easy maintenance. Benefits encompass reduced downtime and long service life, while potential drawbacks may include higher initial cost compared to basic motors and the need for compatible drive systems. Based on attached images, the unit appears new (no box) with minimal handling marks, featuring a blue painted housing, exposed helical pinion output, and an attached brake module (MM11). No parent/child assets are evident. For detailed model decoding, refer to SEW's gearmotor catalog.
