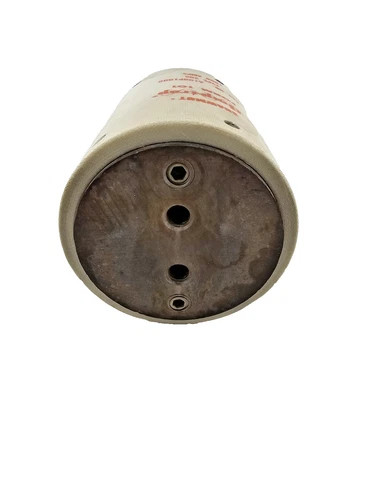

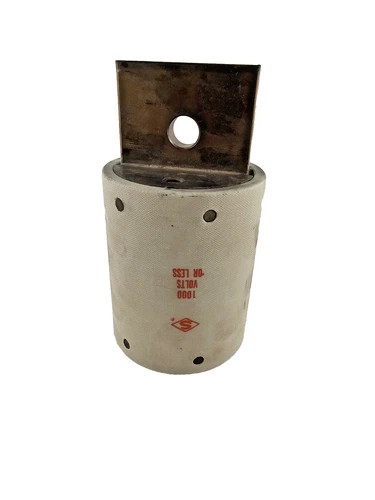

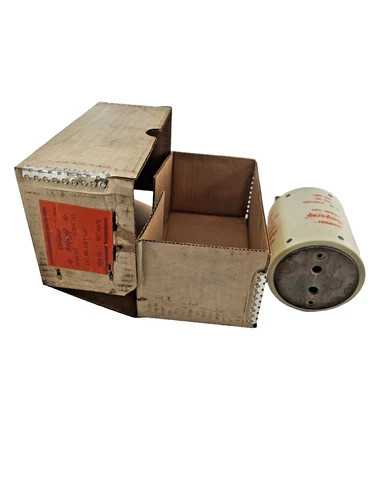

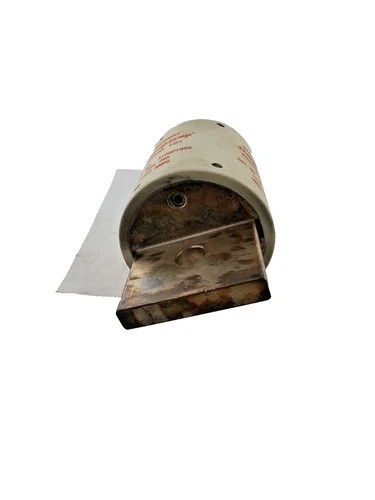

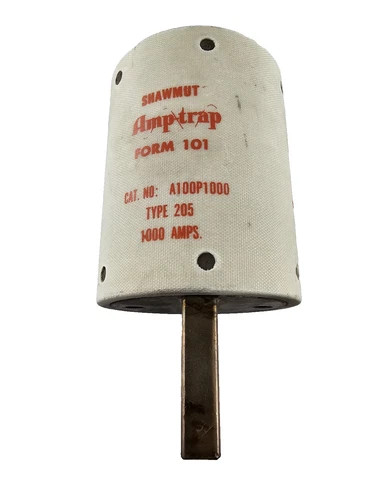

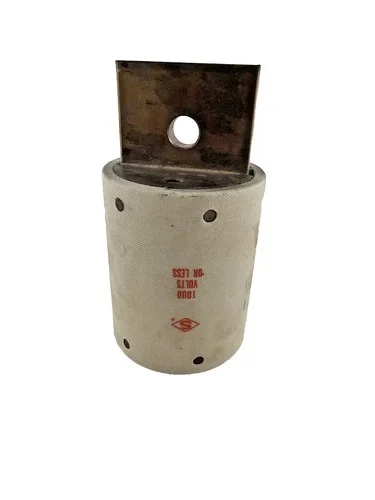

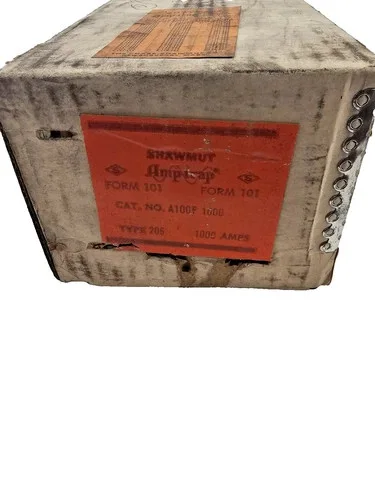

Shawmut Amp-Trap Current Limiting Fuse A100P1000 Form 101

The Shawmut Amp-Trap A100P1000 Form 101 is a high-performance current-limiting fuse designed for protecting power semiconductors, transformers, and other electrical equipment from short-circuit faults. Manufactured by Shawmut (now part of Mersen), this fuse offers rapid response to overcurrent conditions, minimizing damage to sensitive components by limiting let-through current and energy. Key features include a robust fiberglass body for durability, silver-plated copper elements for efficient conductivity, and a Form 101 design that ensures compatibility with standard fuse holders. It excels in applications such as motor drives, UPS systems, and industrial power distribution where high interrupting capacity is critical. Advantages over similar products include superior arc-quenching capabilities and a compact design that reduces installation space. However, it may require specific mounting hardware and is not suitable for low-voltage residential use. Benefits include enhanced system reliability and reduced downtime, though drawbacks involve higher initial cost compared to standard fuses and the need for professional installation. This model is ideal for medium-voltage industrial environments, providing reliable protection up to 1000A with excellent performance in high-fault scenarios.
