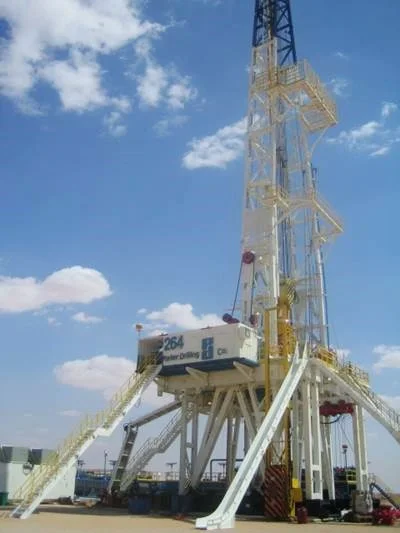

Bomco 2000 HP AC Land Rig 264 (2006)
BOMCOModel:2000 HP AC Land Rig 264
Houston, TX
Oilfield Drilling Equipment
Qty:1
Condition: Used
At a glance
- Product
- Bomco 2000 HP AC Land Rig 264 (2006)
- Manufacturer
- BOMCO
- Model
- 2000 HP AC Land Rig 264
- Category
- Oilfield Drilling Equipment
- Condition
- USED
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Houston, TX
- Fulfillment
- Pickup and shipping available
- Listed on
Key specifications
- BOP Size and Rating
- 13⅝" 10,000 psi Cameron Type U
- BOP System Annular 1
- 13â " Hydril 5,000 psi
- BOP System Annular 2
- 21¼" Hydril 2,000 psi
- BOP System Double Ram
- Cameron Type U 13â " 10,000 psi
- BOP System Single Ram
- Cameron Type U 13â " 10,000 psi
- Drawworks & Top Drive Drawworks
- Bomco JC-70DB7
- Drawworks & Top Drive Motors
- 2Ã 1,150 HP AC electric
- Drawworks & Top Drive Rated Input
- 2,000 HP (1,470 kW)
- Drawworks & Top Drive TD Motors
- 2Ã 400 HP AC
- Drawworks & Top Drive Top Drive
- NOV TDS-11SA
- Drawworks Drilling Line
- 1-1/2"
- Drawworks Make/Model
- Bomco JC-70DB7
- Drawworks Model
- Bomco JC-70DB7
- Drawworks Motors
- 2Ã 1,150 HP AC
- Drawworks Rated Input
- 2,000 HP (1,470 kW)
- Drill Floor Height
- 34.5m
- Engine Power Rating
- 1476kW
- General Condition
- Used
- General Rated HP
- 2,000
- General Year Built
- 2006
- Generator Capacity
- 1365kVA
- Mast & Substructure Floor Height
- 34.5 ft (10.5 m)
- Mast & Substructure Height/Type
- 152 ft (46.5 m), Cantilever
- Mast & Substructure Mast Make/Model
- Bomco JJ450/46-K
- Mast & Substructure Max Hook Load
- 1,000,000 lbs (4,500 kN)
- Mast & Substructure Sub Type
- Bomco Swing Lift
- Mast Height
- 152 ft (46.5 m)
- Mast Make/Model
- Bomco JJ450/46-K Cantilever
- Mast Max Hook Load
- 1,000,000 lbs (4,500 kN)
- Mast Model
- Bomco JJ450/46-K
- Max Static Hook Load
- 1000000lb
- Power Generation Engines
- Caterpillar 3512-B Diesel 1,476 HP @ 1,200 RPM
- Power Generation Generators
- Kato 1,365 kW (1,950 KVA) each
- Power Generation HP @ RPM
- 1,476 HP @ 1,200 RPM each
- Power Generation Option
- 5th genset plug-and-play ready
- Power Generation Qty
- 4 (+ 1 optional)
- Rated Input Horsepower
- 2000HP
- Rotary Equipment Rotary Table
- Bomco 37½" (952.5 mm)
- Rotary Equipment RT Motor
- 1,150 HP AC (845 kW)
- Rotary Equipment Static Load
- 1,300,000 lbs
- Rotary Equipment Static Load Rating
- 1,300,000 lbs
- Rotary Table Size
- 37.5in
- Static Load Rating
- 1300000lbf
- Substructure Clear Working Height
- 29.5 ft (9 m)
- Substructure Floor Height
- 34.5 ft (10.5 m)
- Substructure Make/Model
- Bomco DZ450/10.5-X Swing Lift
- Substructure Max Rotary Load
- 1,000,000 lbs
- Substructure Setback Load
- 495,000 lbs
- Top Drive Make/Model
- NOV TDS-11SA
- Top Drive Model
- NOV TDS-11SA
- Top Drive Motors
- 2Ã 400 HP AC (298 kW)
- Top Drive Power
- 800HP
- Traveling Equipment Swivel
- Bomco SL450-5, 1,000,000 lbs
- Traveling Equipment Traveling Block
- Bomco YC-450, 1,000,000 lbs
Supporting evidence
No supporting documents or certifications provided.
Description
2,000 HP AC-powered Bomco land rig built in 2006. Features Bomco JJ450 152-ft cantilever mast rated to 1,000,000 lbs hook load, NOV TDS-11SA top drive, Bomco JC-70DB7 drawworks with dual AC motors, and Bomco 37½" rotary table. Four Caterpillar 3512-B diesel gensets supply 5,460 kW total. Dual Hydril BOP system rated to 13â
" 10,000 psi with plug-and-play fifth genset capability.
