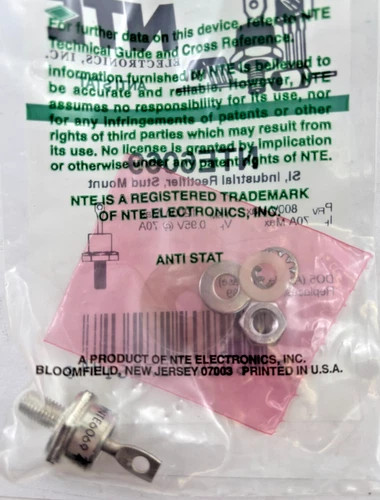

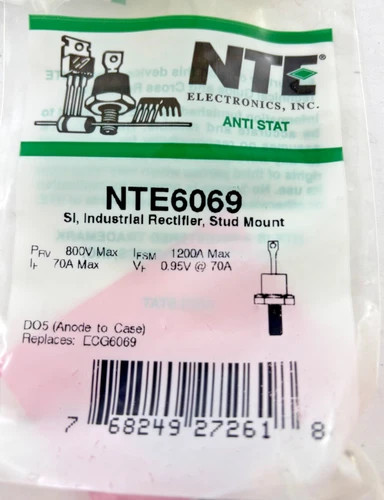

NTE Electronics NTE6069 Silicon Industrial Rectifier Stud Mount
NTE Electronics, Inc.Model:NTE6069
Location unavailable
Electrical Rectifiers
Qty:1
Condition: New
At a glance
- Product
- NTE Electronics NTE6069 Silicon Industrial Rectifier Stud Mount
- Manufacturer
- NTE Electronics, Inc.
- Model
- NTE6069
- Category
- Electrical Rectifiers
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Motor Control Center
- Listed on
Key specifications
- Forward Voltage Drop
- 1.35V
- Maximum Average Forward Rectified Current
- 70A
- Maximum Repetitive Peak Reverse Voltage
- 800V
- Mounting Style
- Stud Mount
- Operating Temperature Max
- 175°F
- Operating Temperature Min
- -65°F
- Package Type
- DO-5 Stud Mount (Anode to Case)
- Surge Current Rating
- 1200A
Supporting evidence
No supporting documents or certifications provided.
Description
The NTE6069 is a high-power silicon industrial rectifier designed for stud mount applications, offering robust performance in power supply and conversion systems. Manufactured by NTE Electronics, this device features a maximum peak inverse voltage of 800V and an average forward current rating of 70A, making it suitable for demanding industrial environments such as welding equipment, battery chargers, and motor drives. Key benefits include high surge current handling up to 1200A, low forward voltage drop for efficient operation, and a rugged DO-5 package that facilitates effective heat dissipation when mounted on a heatsink. Compared to similar rectifiers, the NTE6069 provides superior thermal stability and reliability, with fast recovery times that reduce switching losses. Drawbacks may include the need for proper heatsinking to achieve rated current and its larger size compared to SMD alternatives. This rectifier is ideal for high-voltage, high-current rectification tasks, ensuring long-term durability in harsh conditions. It replaces ECG6069 and similar parts, providing a cost-effective solution for maintenance and upgrades.
