NOV National 110-UE 1500 HP Land Rig 2 - Walking System
National / NOVModel:110-UE
Houston, TX
Oilfield Drilling Equipment
Qty:1
Condition: Used
At a glance
- Product
- NOV National 110-UE 1500 HP Land Rig 2 - Walking System
- Manufacturer
- National / NOV
- Model
- 110-UE
- Category
- Oilfield Drilling Equipment
- Condition
- USED
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Houston, TX
- Fulfillment
- Pickup and shipping available
- Listed on
Key specifications
- Accumulator Model
- Scarbrough 400 gal, 7-Station
- Accumulator Pumps
- 4Ã Pneumatic + 1Ã Electric Triplex
- BOP Annular
- 13-5/8" Shaffer 5,000 psi
- BOP Double Ram
- 13-5/8" Cameron Type-U 10,000 psi
- BOP Single Ram
- 13-5/8" Cameron Type-U 10,000 psi
- Certification
- Q2 2024 Cat IV
- Drawworks Aux Brakes
- OWI Band Brake System
- Drawworks Horsepower
- 1500HP
- Drawworks Input Power
- 1,500 HP
- Drawworks Main Brake
- 1,500 HP Baylor 6032 (Dynomatic)
- Drawworks Model
- NOV National P-110UE
- Drill Line Diameter
- 1-3/8"in
- General Certification
- Q2 2024 Cat IV
- General Drawworks
- NOV National P-110UE, 1,500 HP
- General Location
- New Mexico, USA
- General Price
- Contact for Pricing
- Mast & Sub Clear Height
- 23 ft
- Mast & Sub Floor Height
- 28 ft
- Mast & Sub Mast
- OWI 142 ft, 1-3/8" drill line
- Mast & Sub Racking
- 22,000 ft 5½" DP
- Mast & Sub Rotary Cap
- 1,000,000 lb
- Mast & Sub Setback
- 750,000 lb
- Mast & Sub Sub Type
- OWI Box on Box
- Mast & Substructure Drill Line
- 1-3/8"
- Mast & Substructure Mast
- OWI 142 ft
- Mast & Substructure Racking
- 22,000 ft of 5½" DP
- Mast & Substructure Rotary Cap
- 1,000,000 lb
- Mast & Substructure Setback
- 750,000 lb
- Mast & Substructure Sub
- OWI Box-on-Box, 28 ft floor, 23 ft clear
- Mast Height
- 142ft
- Mud Pump Model
- PZ-11
- Mud Pump Pressure Rating
- 7500psi
- Mud Pumps Input Power
- 1,600 HP each
- Mud Pumps Model
- 3Ã Gardner Denver PZ-11
- Mud Pumps Pressure
- 7,500 psi
- Mud Pumps Stroke
- 11"
- Mud System MGS
- Mi Swaco 48" OD Ã 120" tall
- Mud System Mud Tanks
- 3 tanks, 1,100 bbl total
- Mud System Pumps
- 3Ã Gardner Denver PZ-11 @ 7,500 psi
- Mud System Shakers
- 2Ã Derrick
- Mud System Trip Tank
- 80 bbl
- Mud Tank Capacity
- 1100m³
- Number of Mud Pumps
- 3
- Racking Capacity
- 22,000 ft of 5½" DPm
- Rotary Table Capacity
- 1000000ton
- Setback Load
- 750000lbf
- Substructure Clear Height
- 23m
- Substructure Floor Height
- 28ft
- Top Drive & Accessories Catwalk
- Forum Pipe Wrangler Hydraulic
- Top Drive & Accessories Max Torque
- 65,300 ft-lbs continuous
- Top Drive & Accessories Top Drive
- CanRig 1250 AC 500 Ton
- Top Drive & Accessories Walking System
- OWI Stealth Stompers
- Top Drive Drill Torque
- 65,300 ft-lbs
- Top Drive Max Speed
- 225 rpm
- Top Drive Max Torque
- 95,000 / 128,800 ft-lbs (Make/Break)
- Top Drive Model
- CanRig 1250 AC 500 Ton
- Top Drive Motors
- 2Ã 400 HP AC induction
- Walking System
- OWI Stealth Stompersft
Supporting evidence
No supporting documents or certifications provided.
Description

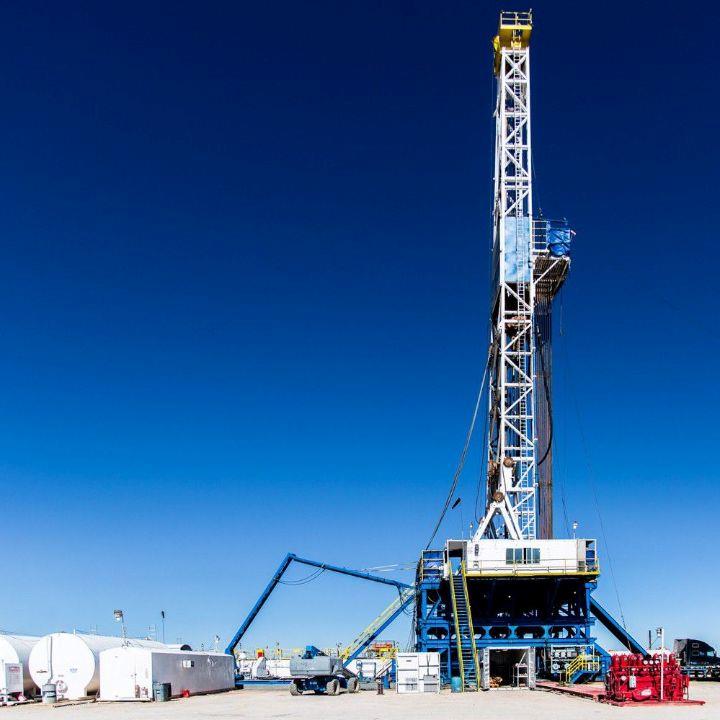

NOV National P-110UE 1500 HP land drilling rig (Rig 2) certified Q2 2024, located in New Mexico. Features OWI Stealth Stomper walking system, CanRig 1250AC 500-ton top drive, Forum Pipe Wrangler hydraulic catwalk, and three Gardner Denver PZ-11 mud pumps. Contact Total Drilling Supply for pricing.
