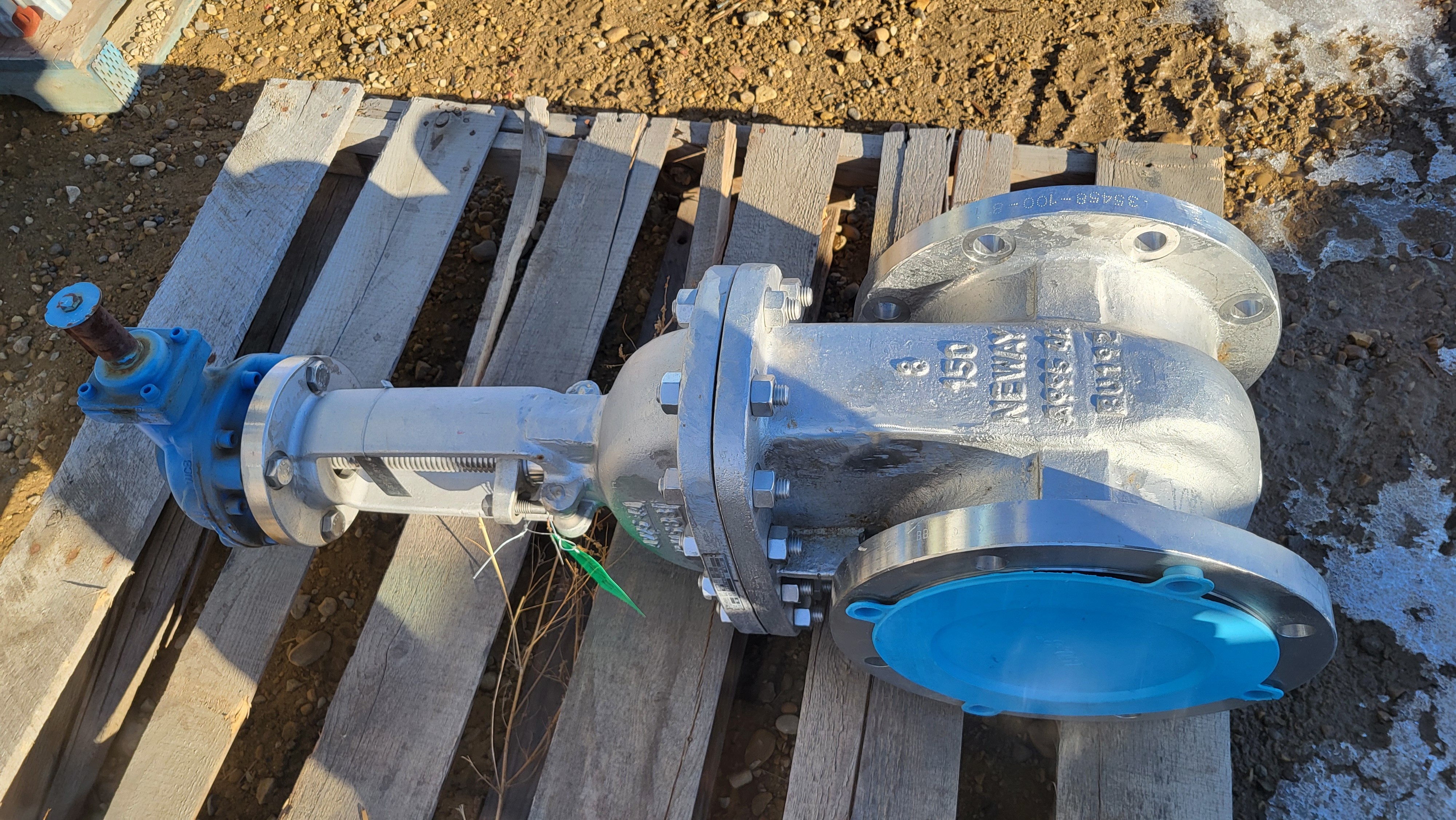

Neway BG1RNF51-HFW-T-G-600 8-Inch Class 150 Gate Valve
Neway Valve (Suzhou) Co., Ltd.Model:BG1RNF51-HFW-T-G-600
Red Deer, AB
Gate Valve
Qty:1
Condition: New
At a glance
- Product
- Neway BG1RNF51-HFW-T-G-600 8-Inch Class 150 Gate Valve
- Manufacturer
- Neway Valve (Suzhou) Co., Ltd.
- Model
- BG1RNF51-HFW-T-G-600
- Category
- Gate Valve
- Condition
- NEW
- Availability
- In stock
- Price or process
- Make an offer
- Quantity
- 1
- Lead time
- Not provided
- Location
- Red Deer, AB
- Fulfillment
- Pickup and shipping available
- Seller
- OTG
- Listed on
Key specifications

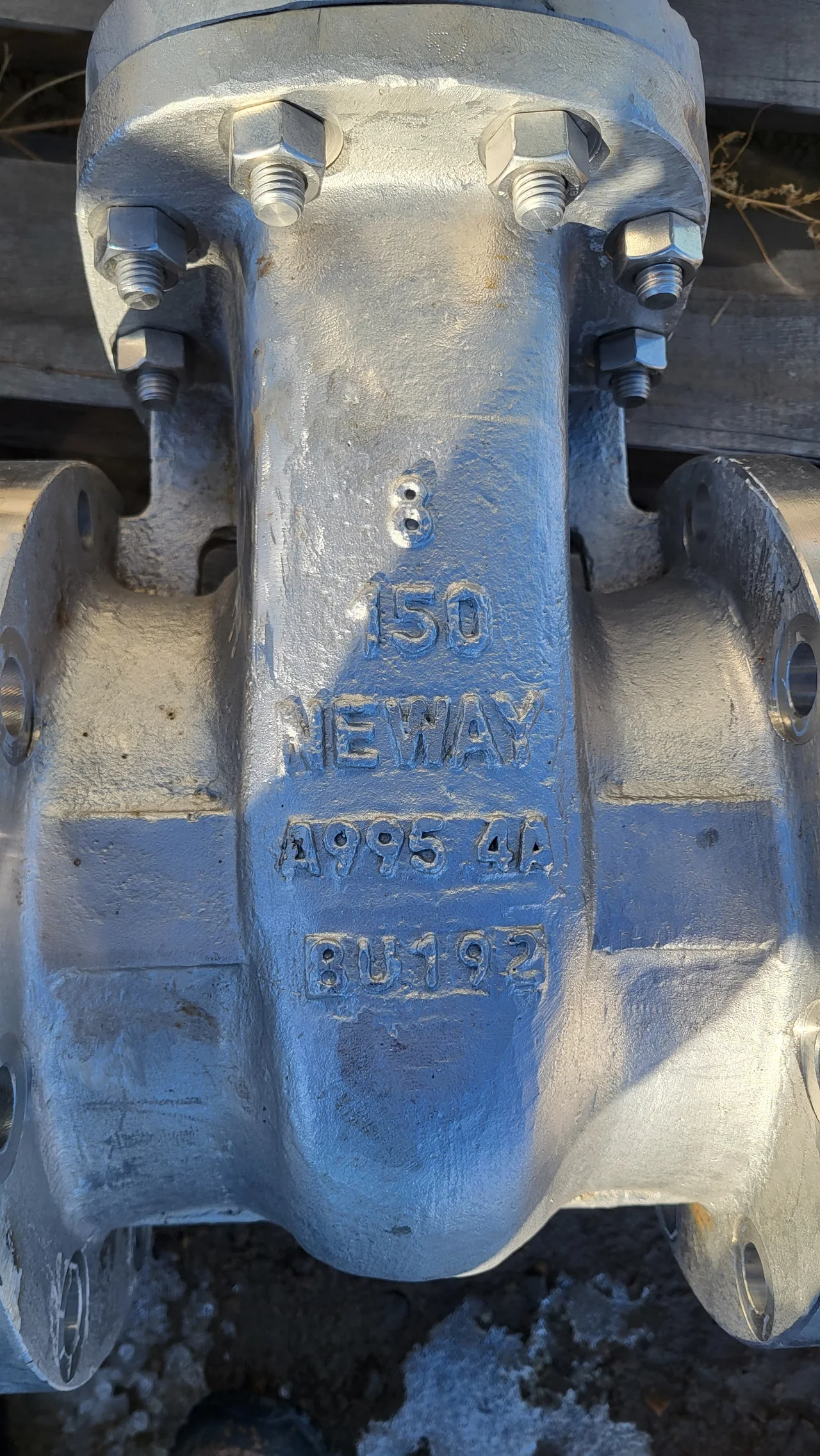

- Body Material
- ASTM A995 Grade 4A (Duplex Stainless Steel)
- Condition
- Used - Visible wear and rust, but functional
- Disc Material
- HF (Hard Faced)
- End Connection Type
- Raised Face Flanged
- Maximum Operating Pressure
- 280bar
- Nominal Size
- 8in
- Pressure Class
- 150
- Seat Material
- F51 (Duplex Stainless Steel)
- Serial Number
- 4U5883
- Stem Material
- F51 (Duplex Stainless Steel)
- Working Pressure at Elevated Temperature
- 200psi
Supporting evidence
No supporting documents or certifications provided.
Description
The Neway BG1RNF51-HFW-T-G-600 is a robust 8-inch gate valve designed for industrial applications requiring reliable flow control in pipelines handling water, oil, gas, and corrosive media. Constructed from duplex stainless steel (ASTM A995 Grade 4A body), it offers superior corrosion resistance and durability compared to standard carbon steel valves, making it ideal for offshore, chemical processing, and petrochemical environments. Key features include a bolted bonnet, rising stem, and flanged connections compliant with ANSI Class 150 standards. Advantages include low pressure drop when fully open, tight shutoff for isolation, and hard-faced disc for extended service life in abrasive conditions. Drawbacks may include higher initial cost due to premium materials and the need for periodic maintenance on the stem and packing. This model excels in high-pressure, high-temperature scenarios up to 280 psi at 100°F, outperforming similar valves from competitors like Velan or Crane in corrosive settings. Serial number 4U5883, manufactured in September 2011. For detailed specs, refer to Neway's official product catalog (available at newayvalve.com).
