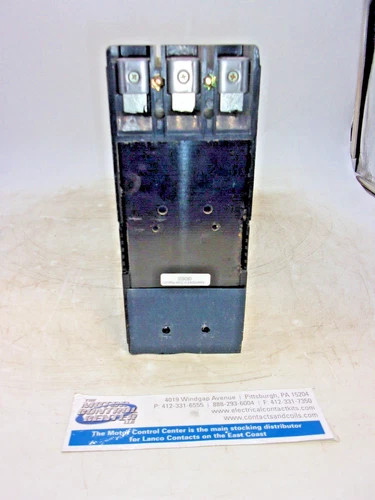

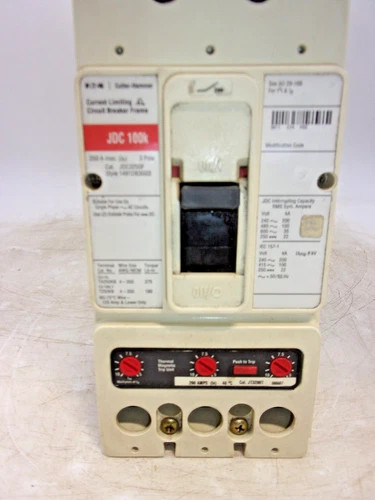

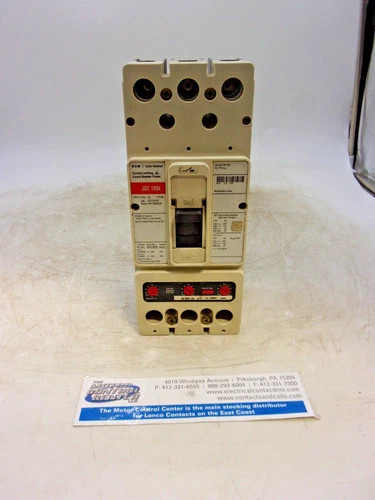

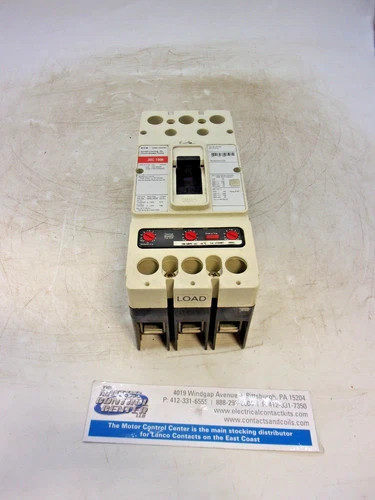

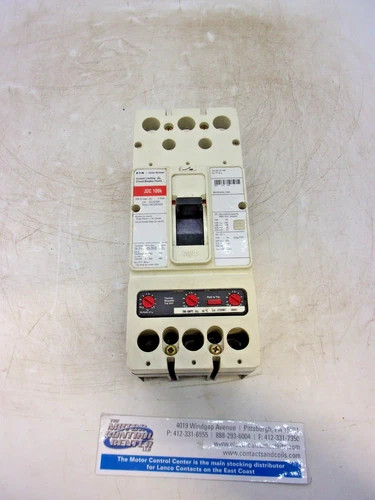

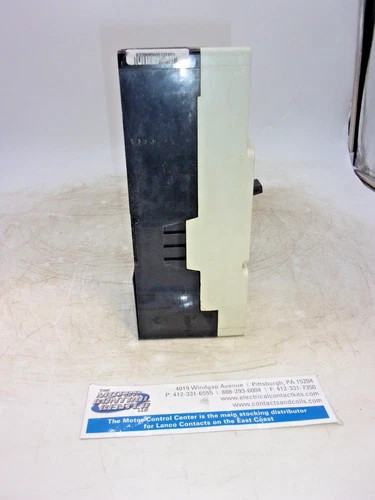

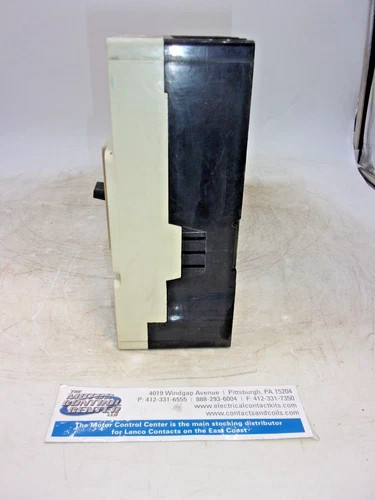

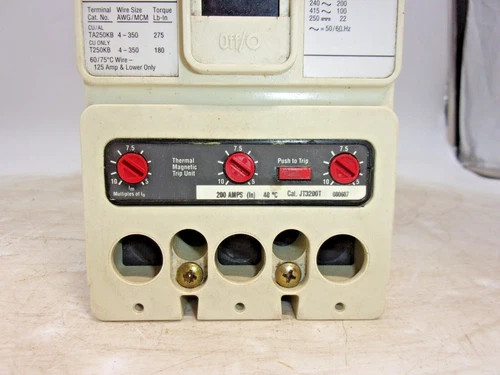

Eaton Cutler-Hammer JDC3250F Molded Case Circuit Breaker Frame with JT3200T Trip Unit, 250A, 600VAC
EatonModel:JDC3250F
Location unavailable
Instrument Enclosure
Qty:1
Condition: New
At a glance
- Product
- Eaton Cutler-Hammer JDC3250F Molded Case Circuit Breaker Frame with JT3200T Trip Unit, 250A, 600VAC
- Manufacturer
- Eaton
- Model
- JDC3250F
- Category
- Instrument Enclosure
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Motor Control Center
- Listed on
Key specifications
- Ampere Rating
- 250A
- Compliance Standards
- UL 489, CSA C22.2
- Interrupting Capacity at 240V
- 100kA
- Magnetic Trip Adjustment Max
- 2000A
- Magnetic Trip Adjustment Min
- 1000A
- Number of Poles
- 3
- Operating Temperature Maximum
- 50°C
- Operating Temperature Minimum
- -20°C
- Trip Current Rating
- 200A
- Trip Type
- Thermal-Magnetic, Adjustable
- Voltage Rating AC
- 600V
Supporting evidence
No supporting documents or certifications provided.
Description
The Eaton Cutler-Hammer JDC3250F is a high-performance molded case circuit breaker frame designed for industrial and commercial electrical distribution systems. This 3-pole breaker frame supports up to 250A at 600VAC, paired with the JT3200T thermal-magnetic trip unit rated for 200A, providing adjustable protection against overloads and short circuits. Key features include high interrupting capacity (up to 100kA at 240VAC), compact design for easy installation in panelboards or switchgear, and robust construction for reliable operation in demanding environments. Applications include motor control centers, power distribution panels, and heavy-duty machinery protection. Advantages over similar products include superior arc flash mitigation, interchangeable trip units for flexibility, and compliance with UL 489 standards for safety. Drawbacks may include higher cost compared to basic breakers and the need for professional installation. This unit offers excellent durability, with adjustable magnetic trip settings from 1000-2000A for customized protection, making it ideal for variable load conditions. Overall, it provides enhanced reliability and reduced downtime in critical power systems.
