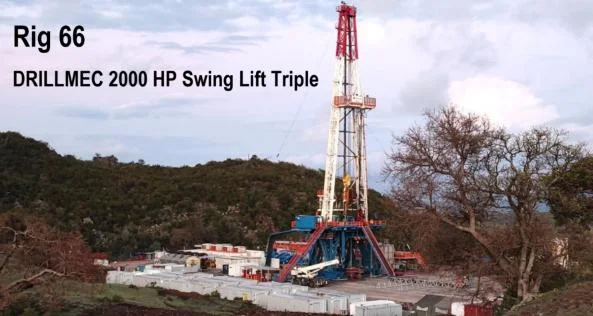

Drillmec 2000 HP Land Rig 66
DrillmecModel:Rig 66
Houston, TX
Oilfield Drilling Equipment
Qty:1
Condition: Used
At a glance
- Product
- Drillmec 2000 HP Land Rig 66
- Manufacturer
- Drillmec
- Model
- Rig 66
- Category
- Oilfield Drilling Equipment
- Condition
- USED
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Houston, TX
- Fulfillment
- Pickup and shipping available
- Listed on
Key specifications
- BOP / Well Control Accumulator
- CAD 14-station 3M 572 gal
- BOP / Well Control Annular
- 21¼ in 2M · 13â in 5M
- BOP / Well Control Choke Manifold
- Weir 3 1/16 in 10M
- BOP / Well Control Iron Roughneck
- WFT Torq Wrench 1-0-100 IR · 100,000 ft-lbs
- BOP / Well Control RAM (double)
- 13â in 5M
- BOP / Well Control RAM (single)
- 21¼ in 2M · 13â in 5M
- Camp & Handling Casing Handling
- Eckel STND 4â13â in · WFT 24-50 UHT 10¾â20 in
- Camp & Handling Data Systems
- Drillmec Data Acquisition & PVT Systems
- Camp & Handling Forklift / Crane
- Manitou MHT10120 (12 MT) · Terex TRT60 (60 MT)
- Camp & Handling Main Camp
- 132 people (24 sleeper + welfare + clinic)
- Camp & Handling Mini Camp
- 12 people
- Camp & Handling Slickline
- LC Surveyor by Millenium, 20,000 ft à 0.108 in
- Camp Capacity
- 132
- Camp Main Camp
- 132 people (24 sleeper, 9 welfare, 3 recreational, clinic, galley)
- Camp Mini Camp
- 12 people (5 offices, 2 welfare, 1 change, 6 sleep)
- Casing & Pipe Handling Eckel Tong
- STND 4â13â in, 25,000 ft-lbs
- Casing & Pipe Handling WFT Tong
- 24-50 UHT 10¾â20 in, 50,000 ft-lbs
- Cranes & Material Handling Crane
- Terex TRT60 · 60 MT
- Cranes & Material Handling Forklift
- Manitou MHT10120 · 12 MT
- Draw Works / Hoisting Auxiliary Brake
- Aker Wirth WN72 eddy current
- Draw Works / Hoisting Draw Works
- MS-7000-AC Electric 2000HP
- Draw Works / Hoisting Drilling Line
- 1½ in (38 mm)
- Draw Works / Hoisting Lines
- 14
- Draw Works / Hoisting Primary Brake
- x12 hydraulic discs (positive & negative)
- Draw Works & Top Drive Draw Works
- MS-7000-AC Electric 2000HP
- Draw Works & Top Drive Drilling Line
- 1½ in (38 mm) · 14 lines
- Draw Works & Top Drive Max Torque
- 72,000 ft-lbs (97,618 Nm)
- Draw Works & Top Drive Rotary Table
- Drillmec two-speed 1500 HP · 37½ in
- Draw Works & Top Drive TD Capacity
- 1,102,310 lbs (500 MT)
- Draw Works & Top Drive Top Drive
- Tesco 500 ESI 1350 HP
- Drawworks Model
- MS-7000-AC Electric 2000HP
- Generator Model
- CAT C-3512B, 1,200 kW, 600V
- Hook Load Capacity
- 1300000ST
- Mast & Substructure Clear Working Height
- 30 ft (9.3 m)
- Mast & Substructure Height
- 156 ft (47.55 m)
- Mast & Substructure Hook Load
- 1,300,000 lbs (590 MT)
- Mast & Substructure Mast Type
- Cantilever Swing Lift Triple 2000 HP
- Mast & Substructure Max Combined Load
- 2,100,000 lbs (952 MT)
- Mast & Substructure RKB Height
- 35 ft (10.7 m)
- Mast & Substructure Setback Capacity
- 800,000 lbs (362 MT)
- Mast & Substructure Substructure Setback
- 800,000 lbs (362 MT)
- Mast & Substructure Type
- Cantilever Swing Lift Triple
- Mast Height
- 156ft
- Max Combined Load
- 2100000lb
- Mud Pump Model
- Drillmec 12T1600, 5,000 psi
- Mud Pumps Drive
- 6 Ã GE B22 AC Electric 1,150 HP
- Mud Pumps Make / Qty
- 3 Ã Drillmec 12T1600
- Mud Pumps Pressure Rating
- 5,000 psi
- Mud System Active
- 484 bbl (77 m³)
- Mud System Active System
- 484 bbl (77 m³)
- Mud System Charging Pumps
- 9 Ã Forum CP12, 100 HP
- Mud System Degasser
- Mi-Swaco CD-1400, 400V
- Mud System Mixing
- 283 bbl (45 m³)
- Mud System Mud Cleaner
- Mi-Swaco 2-12 desander + 6T4 desilter
- Mud System Reserve
- 509 bbl (81 m³)
- Mud System Sand Trap
- 440 bbl (70 m³)
- Mud System Settling
- 566 bbl (90 m³)
- Mud System Shale Shakers
- 3 Ã Mi-Swaco Mongoose PT-1
- Mud System Total Volume
- 2,282 bbl (441 m³)
- Mud System Trip Tank
- 42 bbl (6.6 m³)
- Number of Generators
- 5
- Number of Mud Pumps
- 3
- Power Generation Compressors
- 4 Ã Ingersoll Rand UP5-37-10
- Power Generation Generator Sets
- 5 Ã CAT C-3512B, 1,200 kW, 600V
- Power Generation Generators
- 5 Ã CAT C-3512B, 1,200 kW, 600V
- Power Generation Mud Pumps
- 3 Ã Drillmec 12T1600, 5,000 psi
- Power Generation Pump Drives
- 6 Ã GE B22 AC Electric 1,150 HP
- Power Generation VFD / PCR
- Drillmec VFD, 6,500 kW, 12 bays
- Power Generation VFD PCR
- Drillmec VFD, 6,500 kW, 12 bays
- Rated Power
- 2000kW
- RKB Height
- 35ft
- Rotary & Iron Roughneck Break-out Torque
- 100,000 ft-lbs
- Rotary & Iron Roughneck Iron Roughneck
- WFT Torq Wrench 1-0-100 IR
- Rotary & Iron Roughneck Make-up Torque
- 100,000 ft-lbs
- Rotary & Iron Roughneck Operating Diameter
- 2â in to 10 in
- Rotary & Iron Roughneck Rotary Table
- Drillmec two-speed, 1500 HP, 37½ in (953 mm)
- Rotary Table
- Drillmec two-speed 1500 HP 37½ in
- Slickline Capacity
- 20,000 ft à 0.108 in
- Slickline Type
- LC Surveyor by Millenium
- Substructure Setback Capacity
- 800000lb
- Top Drive Capacity
- 1,102,310 lbs (500 MT)
- Top Drive Hookload Capacity
- 1102310lb
- Top Drive Max Torque
- 72,000 ft-lbs (97,618 Nm)
- Top Drive Model
- Tesco 500 ESI
- Top Drive Power
- 1350HP
- Top Drive Pressure
- 5,000 psi
- Top Drive Speed
- 218 RPM
- Top Drive Type
- Tesco 500 ESI 1350 HP
- Total Mud System Volume
- 2282BBLS
Supporting evidence
No supporting documents or certifications provided.
Description
A fully-equipped Drillmec 2,000 HP cantilever triple land rig featuring a Tesco 500 ESI top drive, five CAT C-3512B generators with Drillmec VFD controls, three Drillmec 12T1600 mud pumps, complete BOP stack, and a 132-person main camp. Full pipe-racking, slickline, and casing-handling packages included.
