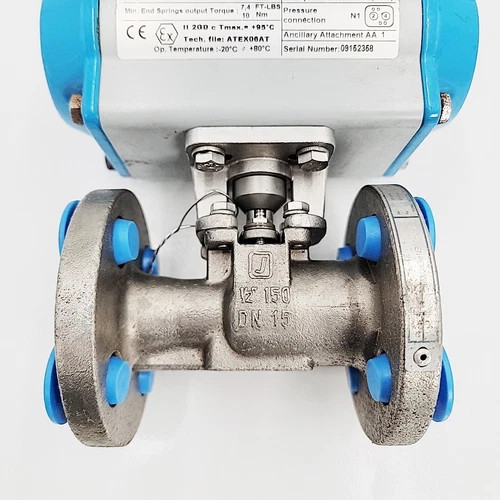

Jamesbury 1/2" CL150 Ball Valve 7150P11136001112 with VPVL100 SR Actuator and Quartz Position Monitor
JamesburyModel:7150P11136001112
Brooklyn Park, MN
Ball Valve
Qty:1
Condition: New
At a glance
- Product
- Jamesbury 1/2" CL150 Ball Valve 7150P11136001112 with VPVL100 SR Actuator and Quartz Position Monitor
- Manufacturer
- Jamesbury
- Model
- 7150P11136001112
- Category
- Ball Valve
- Condition
- NEW
- Availability
- In stock
- Price or process
- $350.00 USD
- Quantity
- 1
- Lead time
- Not provided
- Location
- Brooklyn Park, MN
- Fulfillment
- Pickup and shipping available
- Seller
- DWP Industrial Sales
- Listed on
Key specifications
- Actuator Torque
- 7.4in-lbs
- Actuator Type
- Pneumatic Spring-Return (VPVL100 SR4/5 B/C)
- End Connection Type
- Raised Face Flanged
- Indicator Type
- StoneL Quartz QN2502QSRA (ATEX-rated)
- Material
- Stainless Steel (CF8M/316SS Body and Ball)
- Maximum Working Pressure
- 275psi
- Pressure Rating
- CL150
- Seat Material
- PTFE (Xtreme)
- Temperature Max
- 200°F
- Temperature Min
- -20°F
- Valve Size
- 0.5in
Supporting evidence
No supporting documents or certifications provided.
Description

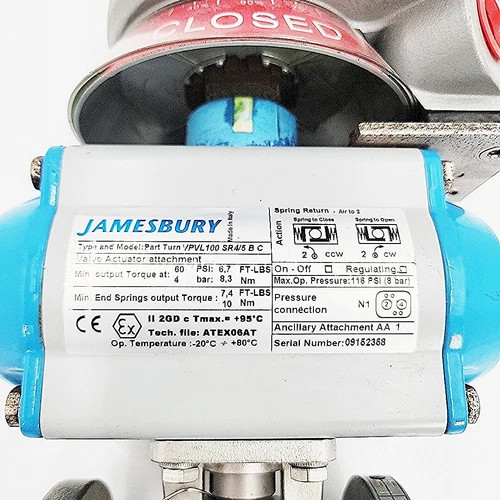

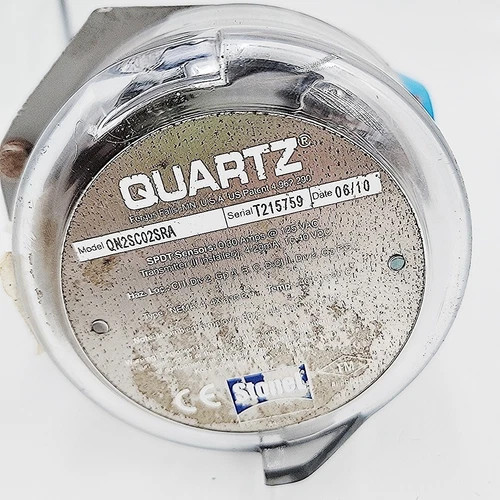

The Jamesbury 7150P11136001112 is a high-performance 1/2-inch Class 150 flanged ball valve designed for reliable shut-off and control in industrial applications such as chemical processing, oil and gas, and water treatment. Featuring a full-bore design for minimal pressure drop and optimal flow, it is constructed from durable stainless steel (body and ball likely CF8M/316SS based on model decoding) with PTFE seats for excellent chemical resistance and tight sealing. The valve is equipped with a Jamesbury VPVL100 SR4/5 B/C pneumatic spring-return actuator, providing fail-safe operation with 7.4 ft-lbs output torque at 4 bar minimum air supply, suitable for automated systems. A StoneL Quartz QN2502QSRA position monitor with visual indicator and switches enhances monitoring in hazardous environments (ATEX-rated). Advantages include superior leak-tightness, low maintenance, and compatibility with high-pressure/temperature conditions up to 200°C and 19 bar. Drawbacks may include higher initial cost compared to manual valves and the need for compressed air for actuation. This assembly offers robust performance over competitors like Apollo or Velan valves due to Jamesbury's Xtreme seat technology for extended cycle life in demanding services.
