IXYS M150C120BIL High Power Stud Rectifier Diode

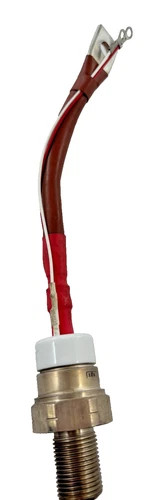

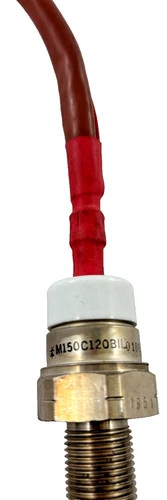

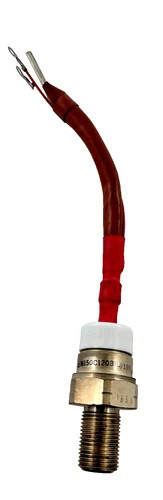

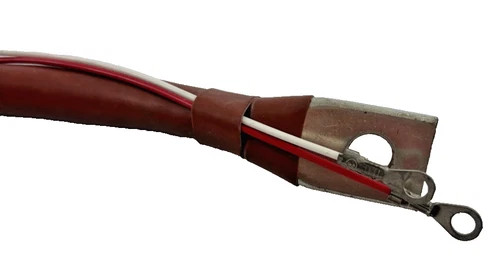

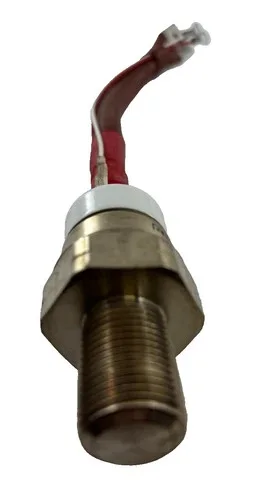

The IXYS M150C120BIL is a high-power stud-mount rectifier diode designed for industrial applications requiring robust rectification in power supplies, inverters, and motor drives. This device features a threaded stud base for easy mounting and heat sinking, with a flexible lead for connection. It offers high current handling up to 150A and reverse voltage rating of 1200V, making it suitable for medium to high voltage rectification tasks. Key benefits include excellent surge current capability, low forward voltage drop for efficient operation, and reliable performance in harsh environments. Compared to similar products like Vishay or Semikron diodes, the IXYS model provides superior thermal management and longevity due to its advanced silicon technology. Drawbacks may include the need for proper heat sinking to prevent overheating and potential sensitivity to reverse recovery times in high-frequency applications. Based on attached images, the unit appears to be in used condition with minor wear on the threads and insulation, but no visible damage. The faceplate shows model 'M150C120BIL' and possible date code '0108'. No parent/child assets are evident. Applications include welding equipment, battery chargers, and renewable energy systems. For detailed specs, refer to IXYS datasheets (e.g., similar to CS series). Estimated market price for used units: $50-100 USD.
