Barge Rig 20 - 1500 HP Inland Barge
UnknownModel:Barge Rig 20
Houston, TX
Oilfield Drilling Equipment
Qty:1
Condition: Used
At a glance
- Product
- Barge Rig 20 - 1500 HP Inland Barge
- Manufacturer
- Not provided
- Model
- Barge Rig 20
- Category
- Oilfield Drilling Equipment
- Condition
- USED
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Houston, TX
- Fulfillment
- Pickup and shipping available
- Listed on
Key specifications
- Barge & Structure Barge Dimensions
- 195' x 54' x 12'
- Barge & Structure Date in Service
- 2002
- Barge & Structure Draft
- 7 feet
- Barge & Structure Mast
- DSI/National 142 ft, 1,000,000 lb
- Barge & Structure Rig Type
- 24-Hour Inland Bay Barge
- Barge & Structure Substructure
- 30" diameter legs, 1,500,000 lb rated
- Barge Overview Barge Dimensions
- 195' x 54' x 12'
- Barge Overview Date in Service
- 2002
- Barge Overview Depth Rating
- 18,000 ft
- Barge Overview Draft
- 7 feet
- Barge Overview Horse Power
- 1,500 HP
- Barge Overview Pricing
- Contact for Pricing
- Circulation System Degasser
- G-10 mud degasser
- Circulation System Desilter/Desander
- 16-2 mud cleaner
- Circulation System Mud Capacity
- 1,000 bbl total with mixing manifold and hopper
- Circulation System Mud Pumps
- 2x Gardner-Denver PZ-11 1,640 HP, 3516 CAT Engines, 11" stroke
- Circulation System Shakers
- Brandt dual King Cobra separators
- Draft
- 7ft
- Drawworks Model
- National 110M
- Drilling Depth Rating
- 18000ft
- Drilling Equipment Drawworks
- National 110M, 2,280 HP input
- Drilling Equipment Hook/Block
- National/650G500, 500-ton
- Drilling Equipment Mud Capacity
- 1,000 barrels
- Drilling Equipment Mud Pumps
- 2x Gardner Denver PZ-11 1,600 HP (3516 CAT)
- Drilling Equipment Rotary
- National C275, 27" split, 500-ton
- Drilling Equipment Top Drive
- VARCO TDS-11, 500 ton
- Generator Capacity
- 3x 600 kW Caterpillar SR4B + 1x 210 kW standbykVA
- Hoisting System Drawworks
- National 110M, 2,280 HP input
- Hoisting System Drawworks Power
- 3x D-398 Cat engines 760 HP each, National C-300-64-FH torque converters
- Hoisting System Hook/Block
- National/650G500, 500-ton
- Hoisting System Mast
- DSI/National Angle Leg, 142 ft x 25 ft base, 1,000,000 lb static / 12 lines
- Hoisting System Rotary
- National C275, 27" split bushing, 500-ton
- Hoisting System Swivel
- National P-500, 500-ton
- Hoisting System Top Drive
- VARCO TDS-11, 500 ton
- Hook Load Capacity
- 500ST
- Horsepower Rating (440-480V, 3-Phase)
- 1500HP
- Input Horsepower
- 2280HP
- Mud Pumps
- 2x Gardner Denver PZ-11, 1,640 HP each (CAT 3516)
- Mud System Capacity
- 1000BBLS
- Power & Utilities Drill Water
- 98,024 gallons
- Power & Utilities Generators
- (3) 600 KW Caterpillar SR4B + (1) 210 KW standby
- Power & Utilities Instrumentation
- MD Totco Rig Sense System (full parameter)
- Power & Utilities Main Fuel Tank
- 39,737 gallons
- Power & Utilities Solids Control
- Brandt dual King Cobra shakers, degasser, desilter
- Power System Auxiliary Fuel
- 4,000 gallons (day tanks)
- Power System Drill Water
- 98,024 gallons
- Power System Generators
- (3) 600 KW Caterpillar SR4B + (1) 210 KW Caterpillar SR4 standby
- Power System Main Fuel
- 39,737 gallons
- Power System Potable Water
- 30,000 gallons
- Static Hook Load
- DSI/National 142 ft, 1,000,000 lb static (12 lines)lb
- Top Drive
- Varco TDS-11, 500 ton
- Upgrade Options Complete 2,000 HP Barge Package
- Contact for Pricing
- Upgrade Options Complete 3,000 HP Barge Package
- Contact for Pricing
- Upgrade Options Lease Rate (2,000 HP)
- Contact for Pricing
- Upgrade Options Lease Rate (3,000 HP)
- Contact for Pricing
- Upgrade Options Rig 20 Purchase
- Contact for Pricing
- Upgrade Options Shipyard Update (120 accommodations)
- Contact for Pricing
- Upgrade Options Upgrade to 2,000 HP AC Ultra
- Contact for Pricing
- Upgrade Options Upgrade to 3,000 HP (15K)
- Contact for Pricing
Supporting evidence
No supporting documents or certifications provided.
Description

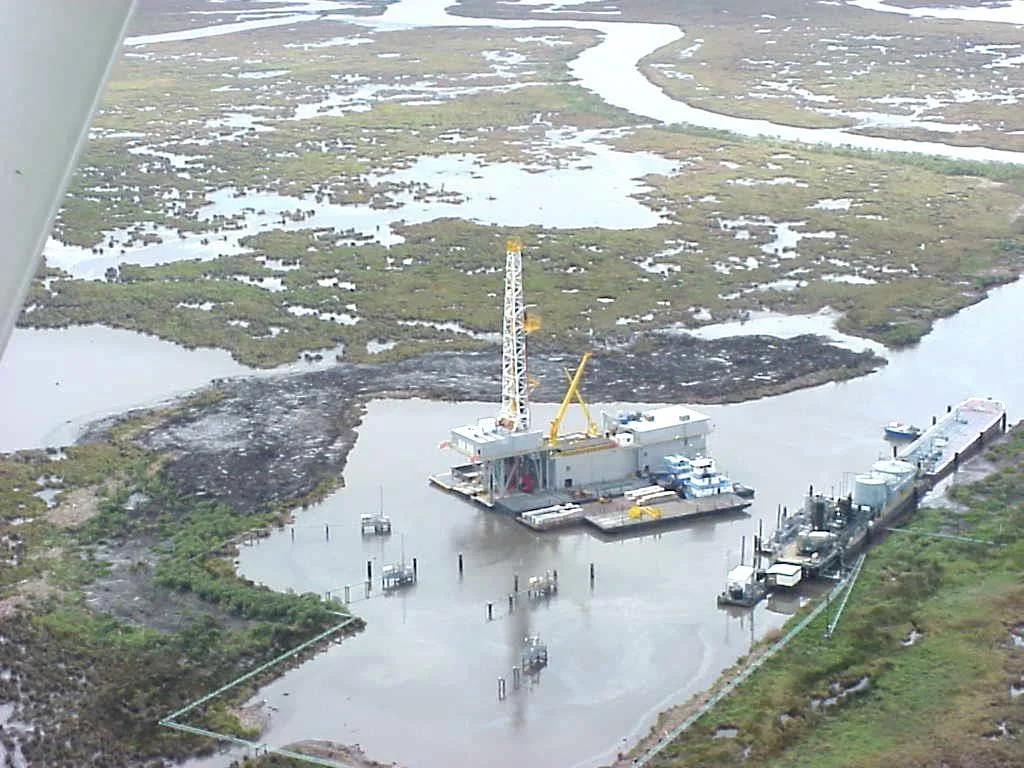

24-hour inland bay barge rig constructed in 2002 and actively worked in Louisiana through 2021. Features National 110M drawworks (2,280 HP input), Varco TDS-11 500-ton top drive, dual Gardner Denver PZ-11 mud pumps powered by 3516 CAT engines, and 1,000 bbl mud system. Barge dimensions 195' x 54' x 12'. Available for purchase as-is or with an upgrade package to 2,000 or 3,000 HP.
