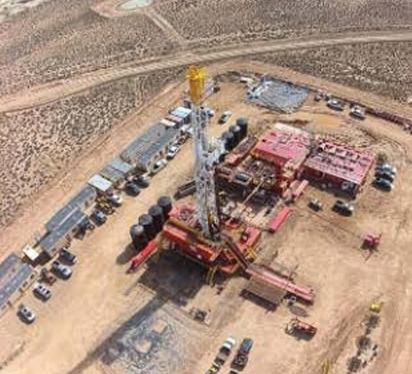

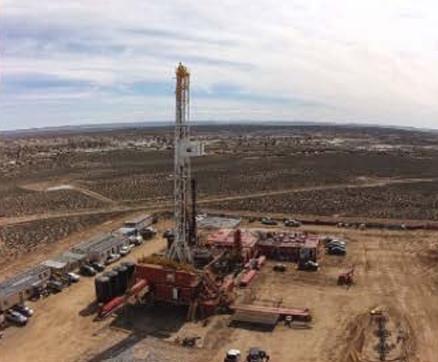

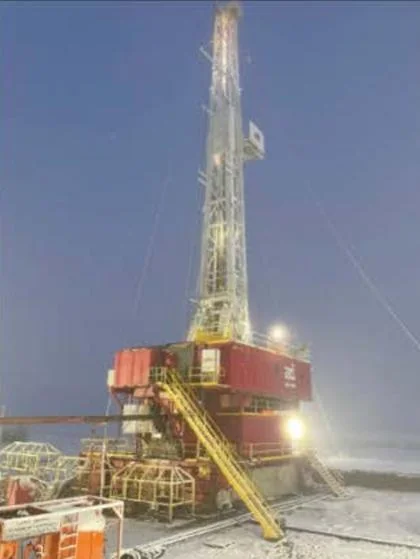

Drilling Rig 1000 - 1500HP AC 600K Cantilever Triple with Walking Package
UnknownModel:P1604008
Houston, TX
Oilfield Drilling Equipment
Qty:1
Condition: Used
At a glance
- Product
- Drilling Rig 1000 - 1500HP AC 600K Cantilever Triple with Walking Package
- Manufacturer
- Not provided
- Model
- P1604008
- Category
- Oilfield Drilling Equipment
- Condition
- USED
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Houston, TX
- Fulfillment
- Pickup and shipping available
- Listed on
Key specifications
- Drawworks & Power Aux Generator
- 1Ã 200kW C-18 for cold starts
- Drawworks & Power Brake System
- Triple braking + Eaton 14VC1000 dynamic disc
- Drawworks & Power Depth Rating
- 20,000 ft (4-1/2" 16.6ppf DP)
- Drawworks & Power Drawworks
- E80 AC, 2 clutches, 1-1/4" cable
- Drawworks & Power Generators
- 4Ã GE Jenbacher 1,000kW 480/240V nat. gas
- Drawworks & Power Main Motor
- GE 1,500HP AC Drilling Motor
- Drawworks Power
- 1500HP
- Drill Line Diameter
- 1.25in
- General Depth Rating
- 20,000 ft (4-1/2" 16.6ppf DP)
- General Move Loads
- ~35
- General Rig Designation
- Rig 1000
- General Type
- 1500HP AC 600K Cantilever Triple with Walking Package
- General Year Built
- 2011
- Hoisting & Rotating Iron Roughneck
- Hyduke ST100C
- Hoisting & Rotating M/U & B/O Torque
- 65,000 ft-lbs
- Hoisting & Rotating Max Drill Torque
- 37,000 ft-lbs continuous
- Hoisting & Rotating Rotary Table
- Hacker 27.5", 0â50 RPM
- Hoisting & Rotating Top Drive
- NOV IDS-350PE, 350 tons, 1,000HP @ 143 RPM
- Hoisting & Rotating Traveling Block
- NOV 350-ton, 10 lines
- Mast & Substructure Capacity
- 600,000 lbs, max 10 lines
- Mast & Substructure Mast
- 136' Hyduke derrick
- Mast & Substructure Rotary Capacity
- 600,000 lbs
- Mast & Substructure Setback Capacity
- 400,000 lbs
- Mast & Substructure Substructure Height
- 25.2 ft (22 ft to rotary beams)
- Mast & Substructure Windbreak
- Included
- Mast Clear Height
- 142m
- Mast Type
- Cantilever Triple
- Mast, Substructure & Walking Mast
- 136' Hyduke, 600,000 lbs, 10 lines max
- Mast, Substructure & Walking Substructure
- 25.2 ft height, 600K rotary / 400K setback
- Mast, Substructure & Walking Walk Lift Capacity
- 900 tons
- Mast, Substructure & Walking Walk Rollers
- 6Ã 150-ton Hillman on lifting jacks
- Mast, Substructure & Walking Walking System
- Hyduke/Hodgson
- Mud Pump Power per Unit
- 1600HP
- Mud Pump Pressure Rating
- 7500psi
- Mud System Centrifuge
- DE-7200 (rental available)
- Mud System Degasser
- 48" NACE gas buster
- Mud System Liner
- 6.5" Ã 12"
- Mud System Liner Size
- 6.5" Ã 12"
- Mud System Max Operating Pres.
- 6,370 PSI @ 115 SPM
- Mud System Mud Pits
- 2Ã 1,080 BBL (8' Ã 11.6' Ã 43', 7 compartments)
- Mud System Mud Pumps
- 2Ã RS F-1600, 7,500 PSI
- Mud System Operating Pressure
- 6,370 PSI @ 115 SPM
- Mud System Shakers
- 2Ã Derrick 504
- Number of Drilling Lines
- 12
- Power & Drawworks Aux Generator
- 200kW C-18 (cold start)
- Power & Drawworks Brake
- Triple braking + Eaton 14VC1000 dynamic disc
- Power & Drawworks Drawworks
- E80 AC, 2 clutches, 1-1/4" cable
- Power & Drawworks Generators
- 4Ã GE Jenbacher 1,000kW (natural gas)
- Power & Drawworks Main Motor
- GE 1,500HP AC Drilling Motor
- Rotary Table Capacity
- 350ton
- Rotary Table Size
- 37.5in
- Rotating Equipment Hydraulic Catwalk
- 62' Hyduke with V-door & power skate
- Rotating Equipment Iron Roughneck
- Hyduke ST100C
- Rotating Equipment M/U B/O Torque
- 65,000 ft-lbs
- Rotating Equipment Max Drill Torque
- 37,000 ft-lbs
- Rotating Equipment Rotary Table
- Hacker 27.5"
- Rotating Equipment Top Drive
- NOV IDS-350PE, 350 tons, 1,000HP
- Rotating Equipment Traveling Block
- NOV 350-ton, 10 lines
- Static Hook Load
- 750000lb
- Substructure Floor Height
- 20ft
- Top Drive Makeup Torque
- 47000ft-lb
- Traveling Block Capacity
- 375ton
- Walking System Lift Capacity
- 900 tons (9,000,000 lbs)
- Walking System Linear Movement
- 6" push / 5' pull per stroke
- Walking System Move Loads
- ~35 loads
- Walking System Rollers
- 6Ã 150-ton Hillman rollers on lifting jacks
- Walking System System
- Hyduke/Hodgson walking system
- Well Control Accumulator
- Burnsco Bison, 250-gal, 5-station, 6 pressure bottles
- Well Control BOP
- Cameron 13-5/8", 5,000 PSI
- Well Control Choke Manifold
- Cameron 10,000 PSI (3-1/8")
- Well Control Hydraulic Source
- 650 Triplex CAT Pump, 40HP TEXP motor
- Well Control Rotating Head
- Washington
Supporting evidence
No supporting documents or certifications provided.
Description
A well-specified 2011-built 1500HP AC land rig featuring a 136-foot Hyduke mast rated 600,000 lbs, E80 AC drawworks, GE natural gas generators, and a Hyduke/Hodgson walking system with 900-ton lifting capacity. Equipped with NOV IDS-350PE top drive, RS F-1600 mud pumps, and Cameron BOP â rated to 20,000 feet depth.
