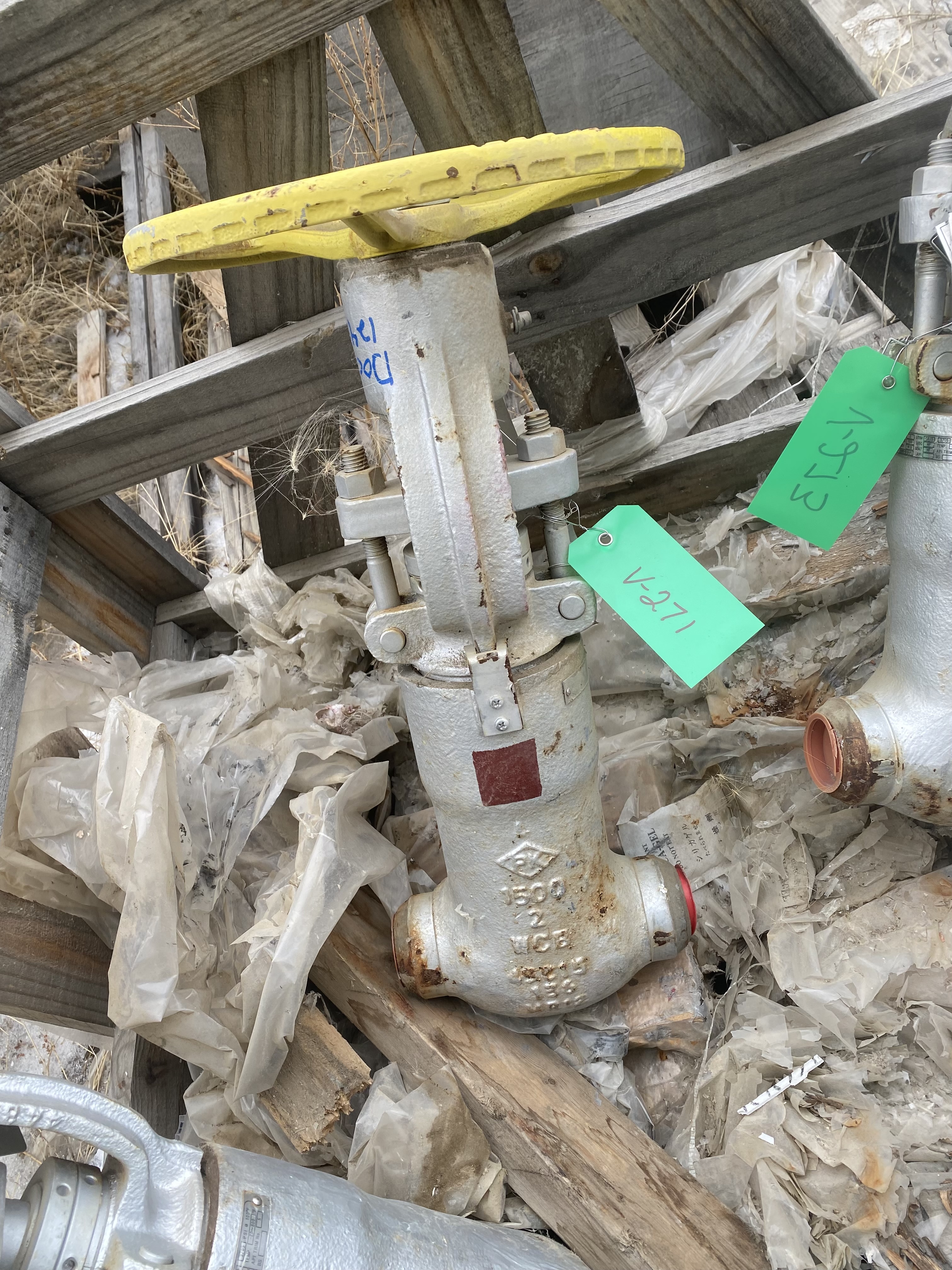

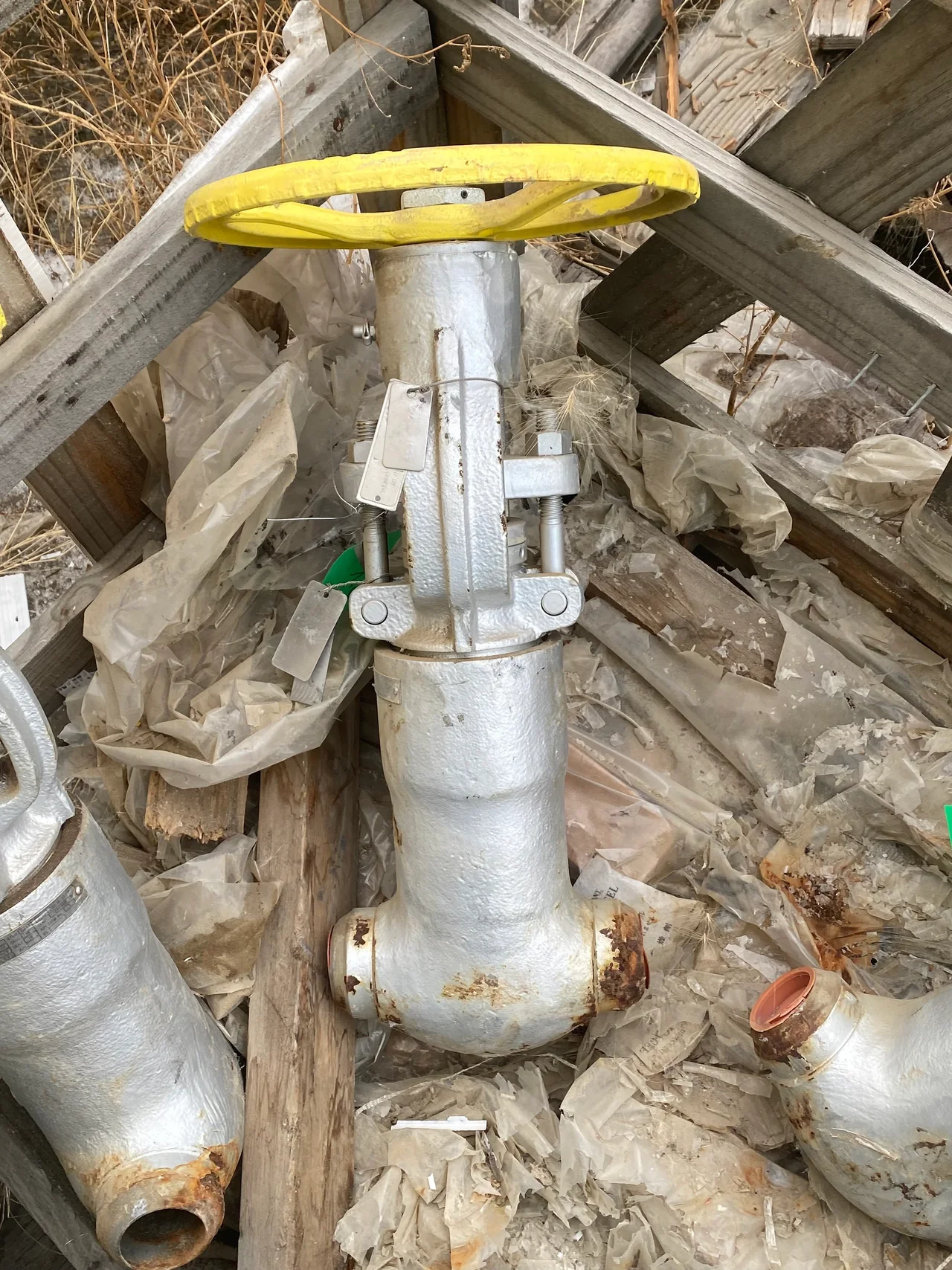

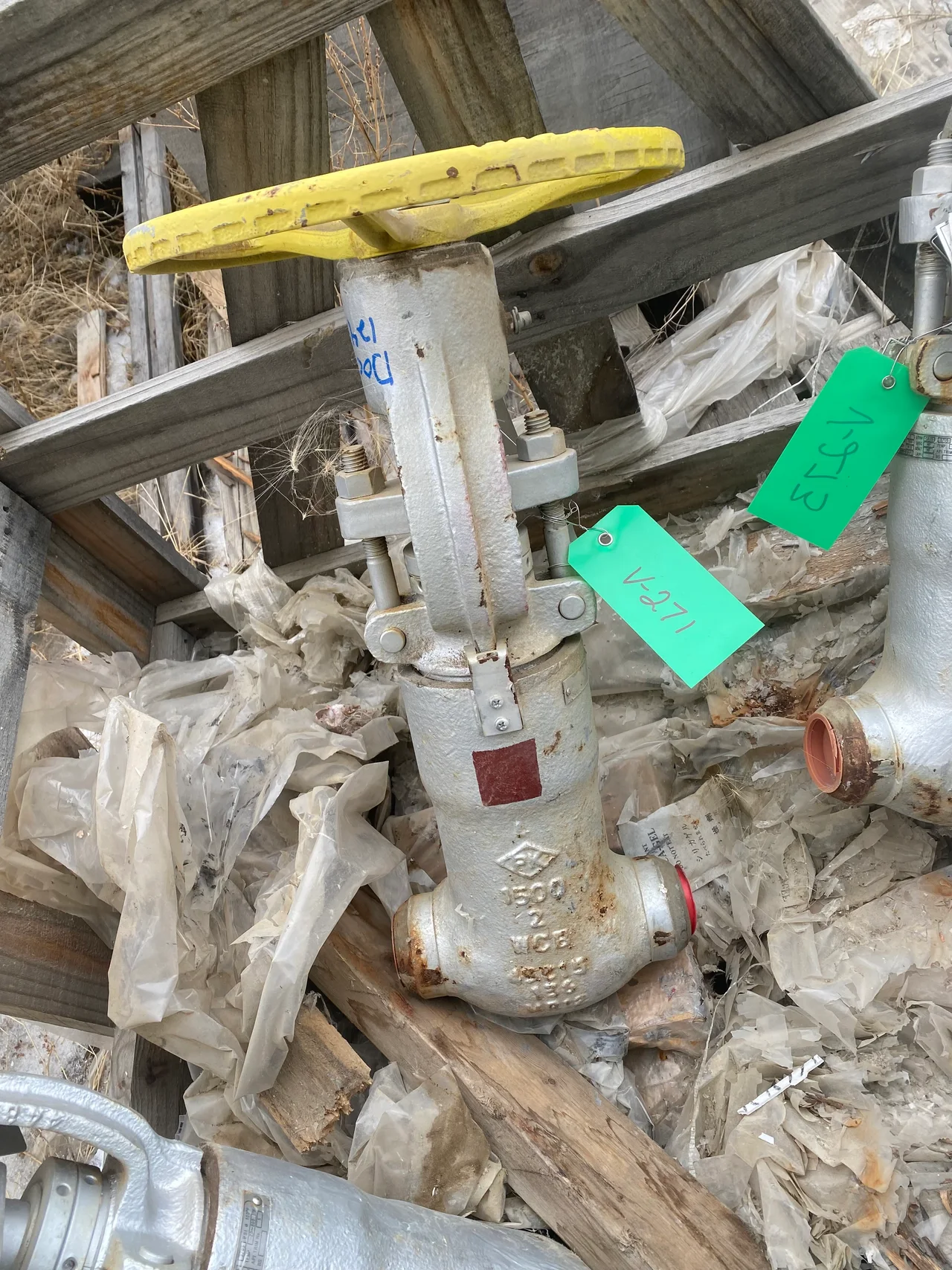

PK Valve 2-inch Class 1500 Gate Valve 1500BWS-PSB-160 SPL CL
PK Valve Co., Ltd.Model:1500BWS-PSB-160 SPL CL
Red Deer, AB
Gate Valve
Qty:1
Condition: New
At a glance
- Product
- PK Valve 2-inch Class 1500 Gate Valve 1500BWS-PSB-160 SPL CL
- Manufacturer
- PK Valve Co., Ltd.
- Model
- 1500BWS-PSB-160 SPL CL
- Category
- Gate Valve
- Condition
- NEW
- Availability
- In stock
- Price or process
- Make an offer
- Quantity
- 1
- Lead time
- Not provided
- Location
- Red Deer, AB
- Fulfillment
- Pickup and shipping available
- Seller
- OTG
- Listed on

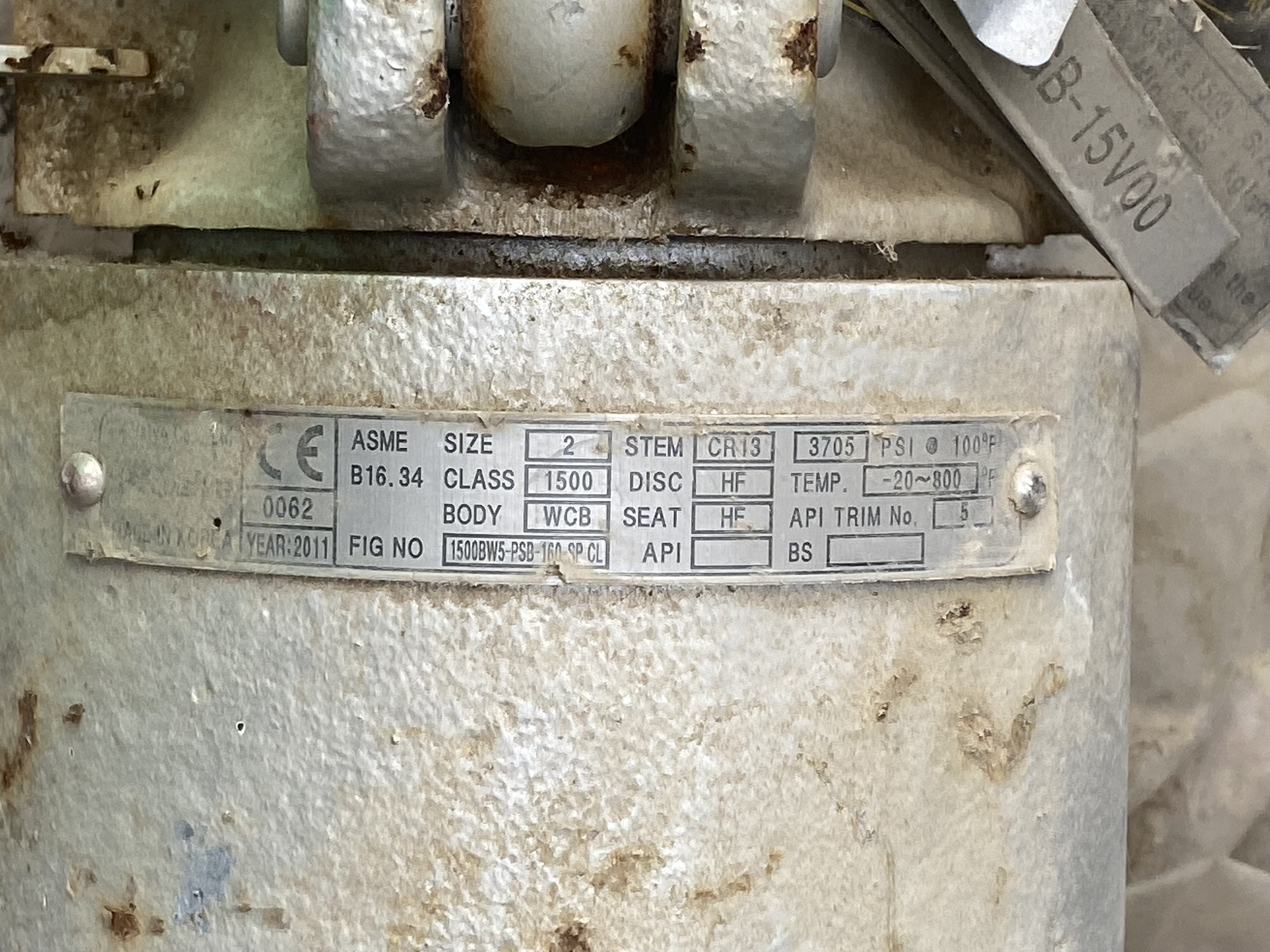

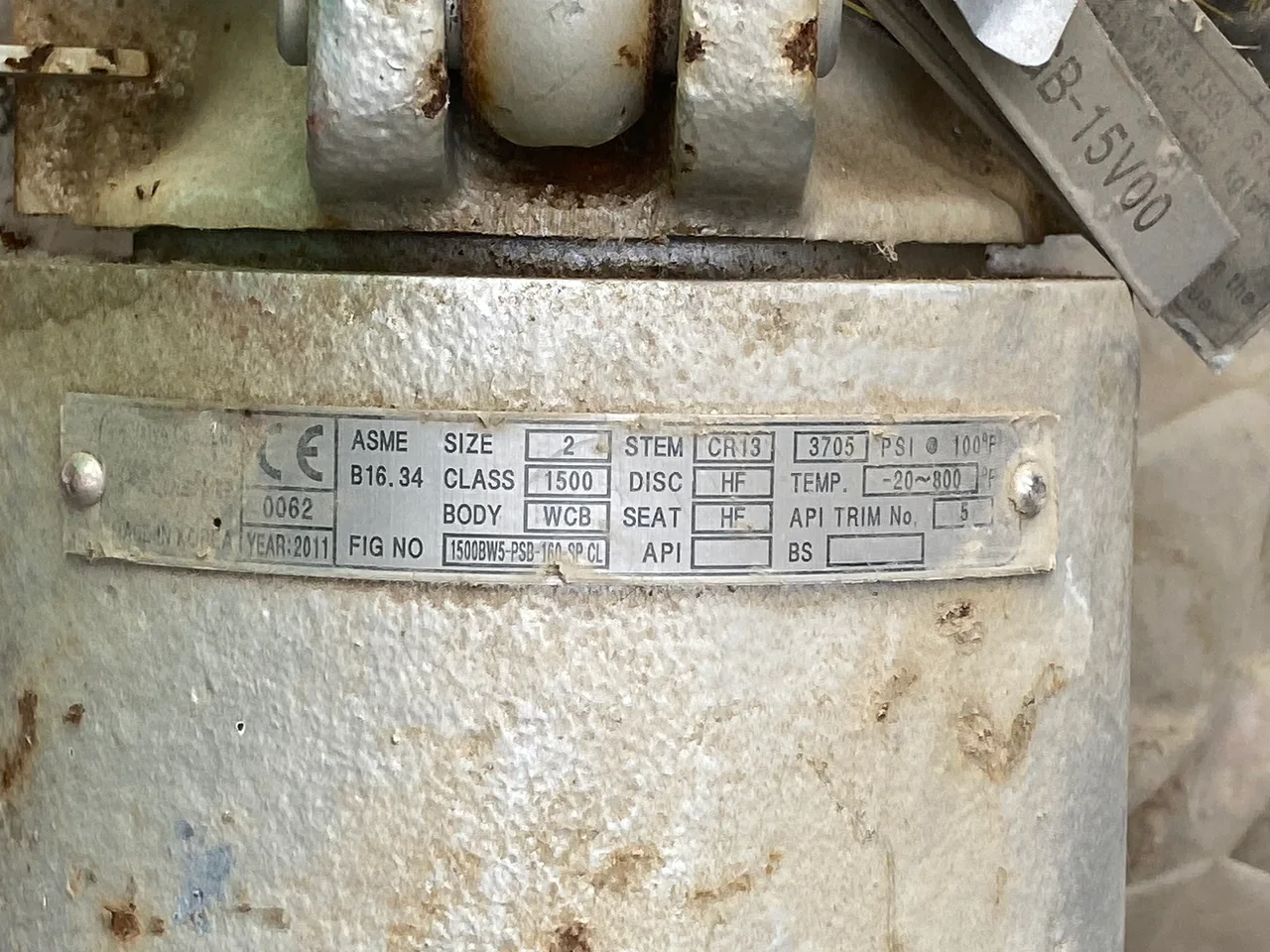

Key specifications
- API Trim Number
- 5
- Body Material
- WCB (Cast Carbon Steel)
- Bonnet Type
- Pressure Seal Bonnet (PSB)
- Connection Type
- Butt Weld (BWS)
- Disc Material
- HF (Hard Faced)
- Maximum Pressure
- 3705bar
- Pressure Class
- 1500
- Seat Material
- HF (Hard Faced)
- SKU
- V-271
- Stem Material
- CR13 (13% Chromium Stainless Steel)
- Temperature Max
- 800°F
- Temperature Min
- -20°F
- Valve Size
- 2in
Supporting evidence
No supporting documents or certifications provided.
Description
The PK Valve 2-inch Class 1500 Gate Valve is a robust, high-pressure valve designed for demanding industrial applications such as oil and gas, petrochemical, and power generation sectors. Manufactured in 2011 by PK Valve Co., Ltd., this bolted bonnet gate valve features a pressure seal design suitable for high-temperature and high-pressure environments. Key benefits include reliable shut-off capabilities, durability in corrosive conditions due to its carbon steel body (WCB) and hard-faced trim (HF), and compliance with ASME B16.34 and API standards. It offers a temperature range of -20°F to 800°F and a pressure rating of 3705 PSI at 100°F, making it ideal for steam, water, and hydrocarbon services. Advantages over similar products include its pressure seal bonnet for reduced leakage and ease of maintenance, though drawbacks may include higher weight and the need for periodic gland packing adjustments.
