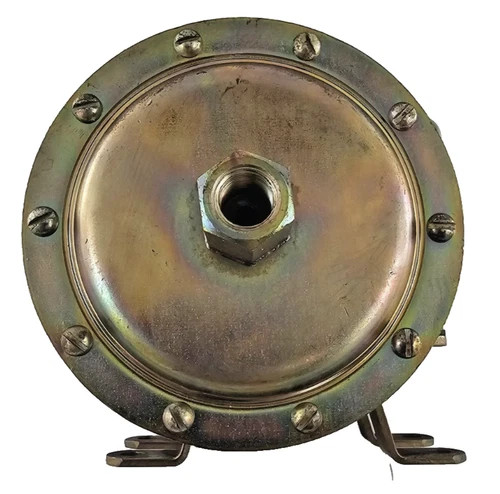

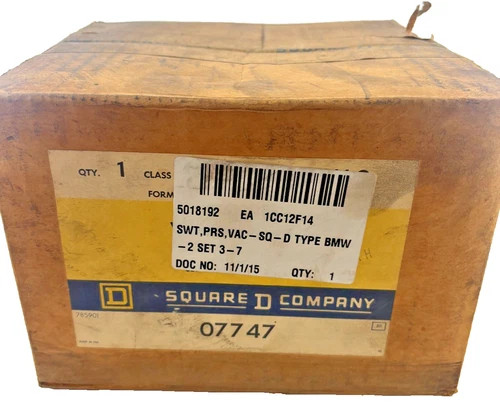

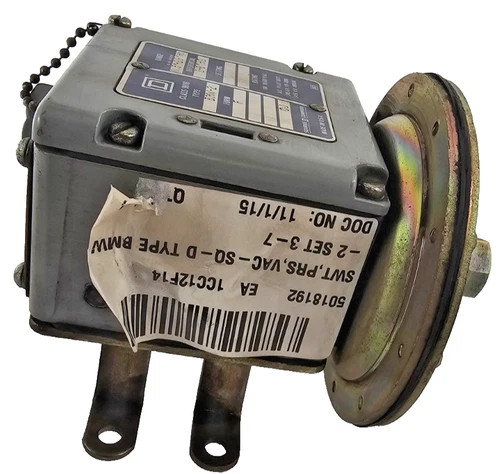

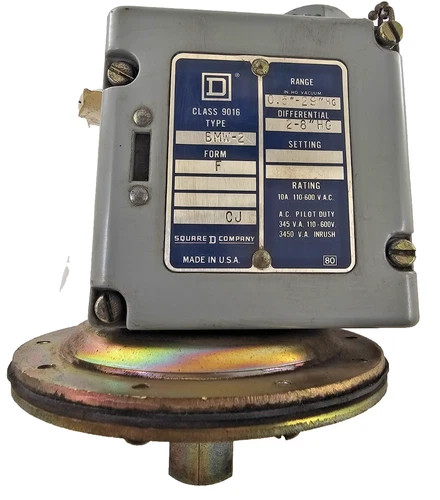

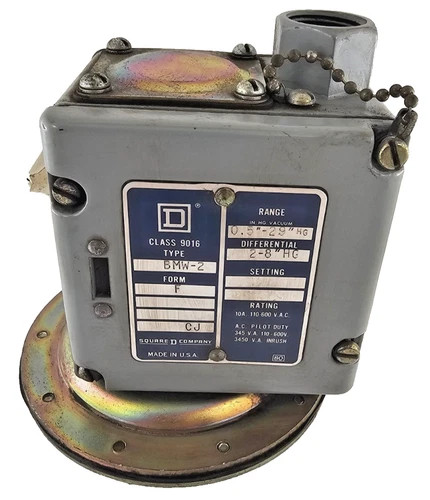

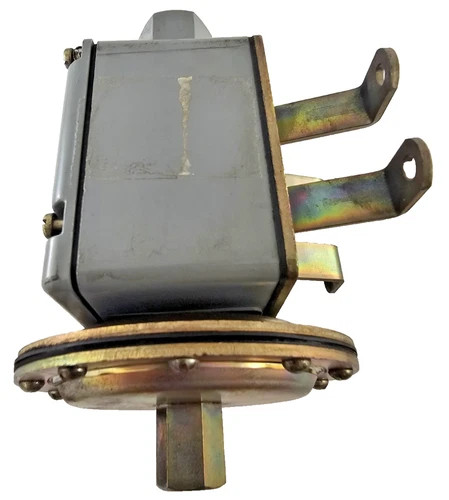

Square D Class 9016 Type BMW-2 Adjustable Vacuum Switch SPDT
Square DModel:9016 BMW-2
Location unavailable
Pressure Switch
Qty:1
Condition: New
At a glance
- Product
- Square D Class 9016 Type BMW-2 Adjustable Vacuum Switch SPDT
- Manufacturer
- Square D
- Model
- 9016 BMW-2
- Category
- Pressure Switch
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Motor Control Center
- Listed on
Key specifications
- Adjustable Differential Max
- 8psi
- Differential Min
- 2°F
- Electrical Rating
- 10A at 110-600 VAC; Pilot Duty A.C. 345 VA 110-600V; 360 VA 110-600V
- Enclosure Rating
- NEMA 1
- Operating Temperature Max
- 185°F
- Operating Temperature Min
- -10°F
- Process Connection
- 1/4 inch NPT female
- Switch Type
- SPDT (Single Pole Double Throw)
- Vacuum Max
- 25inHg
- Vacuum Min
- 0.5inHg
Supporting evidence
No supporting documents or certifications provided.
Description
The Square D Class 9016 Type BMW-2 is a robust, adjustable vacuum switch designed for industrial control applications, particularly in systems requiring precise vacuum level monitoring and switching, such as vacuum pumps, filtration systems, and pneumatic controls. This SPDT (Single Pole Double Throw) switch offers reliable performance with an adjustable range of 0.5 to 25 inches Hg vacuum and a differential setting of 2 to 8 inches Hg, allowing for customizable trip points to maintain optimal system pressure. Key features include a durable NEMA 1 enclosure for protection against dust and light splashing, a diaphragm actuator for sensitive vacuum detection, and electrical ratings up to 10A at 110-600 VAC, making it suitable for controlling motors or alarms. Advantages over similar products include its proven reliability from Square D (now Schneider Electric), easy adjustability via external knobs, and compatibility with harsh industrial environments. Drawbacks may include its age (older model) potentially lacking modern digital interfaces, and it requires periodic calibration for accuracy. Ideal for manufacturing, HVAC, and process industries, this switch enhances system efficiency by preventing over-vacuum conditions and automating controls.
