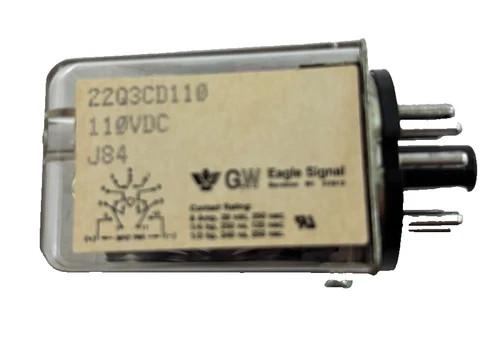

Eagle Signal 22Q3CD110 110VDC Plug-in Control Relay
Eagle SignalModel:22Q3CD110
Location unavailable
Relays
Qty:1
Condition: New
At a glance
- Product
- Eagle Signal 22Q3CD110 110VDC Plug-in Control Relay
- Manufacturer
- Eagle Signal
- Model
- 22Q3CD110
- Category
- Relays
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Motor Control Center
- Listed on
Key specifications
- Coil Resistance
- 10000Ω
- Coil Voltage
- 110V
- Contact Configuration
- 3PDT (3 Pole Double Throw)
- Contact Rating
- 10A at 120VAC / 28VDC (resistive load)
- Mechanical Life
- 10000000
- Operating Temperature Max
- 55°F
- Operating Temperature Min
- -10°F
- Socket Type

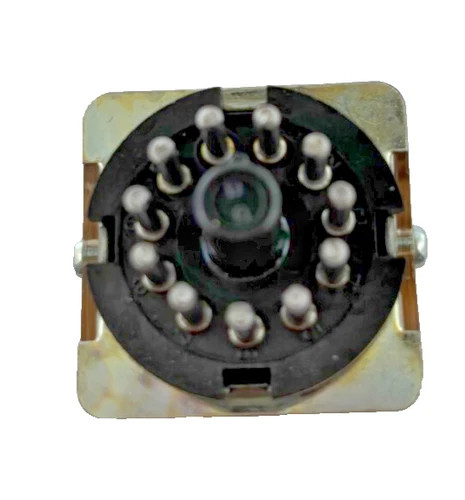

- 11-pin round plug-in
Supporting evidence
No supporting documents or certifications provided.
Description

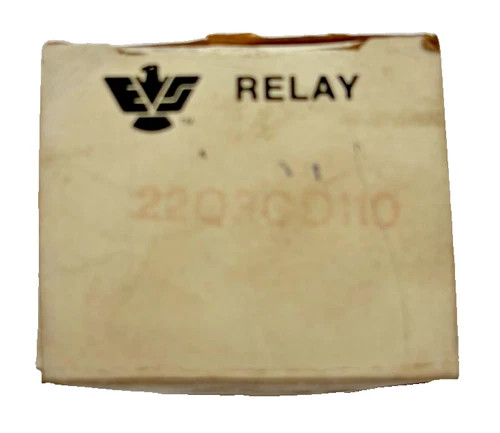

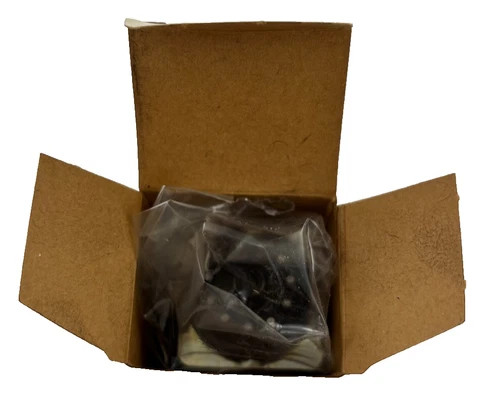

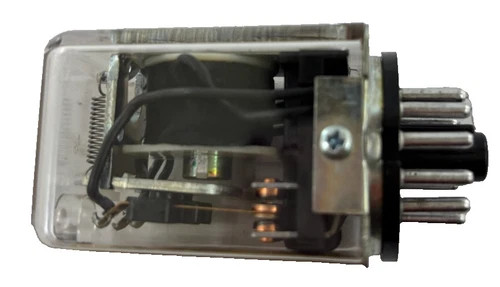

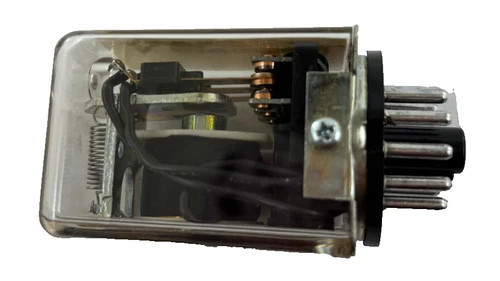

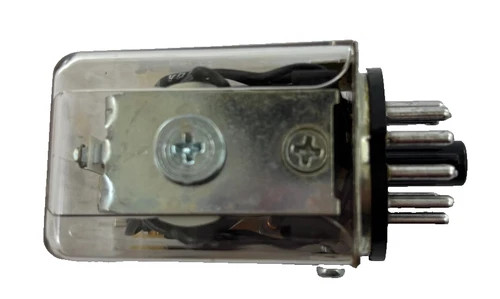

The Eagle Signal 22Q3CD110 is a robust plug-in control relay designed for industrial automation and control applications. Operating on a 110VDC coil voltage, this relay features a 3PDT (3 Pole Double Throw) contact configuration, making it suitable for switching multiple circuits in control panels, machinery, and process control systems. It offers reliable performance in demanding environments, with high contact ratings for handling moderate loads. Key benefits include easy plug-in installation for quick replacement, transparent housing for visual inspection of internal components, and compatibility with standard 11-pin sockets. Compared to similar relays from competitors like Omron or Potter & Brumfield, the Eagle Signal model provides superior durability in high-vibration settings and a compact form factor. Drawbacks may include limited availability of parts due to the brand's legacy status (now part of Veeder-Root/Danaher) and potential incompatibility with modern digital control systems without adapters. Applications span manufacturing, HVAC controls, and elevator systems. The unit appears new or unused based on images, housed in original but worn packaging, with no visible damage. Includes an 11-pin socket as a companion asset for mounting.
