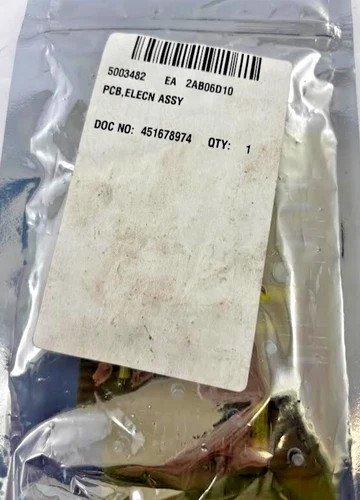

SeQual 5003482 2AB06D10 PCB Electronic Assembly
SeQual TechnologiesModel:5003482
Location unavailable
Electrical Equipment
Qty:1
Condition: New
At a glance
- Product
- SeQual 5003482 2AB06D10 PCB Electronic Assembly
- Manufacturer
- SeQual Technologies
- Model
- 5003482
- Category
- Electrical Equipment
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Motor Control Center
- Listed on
Key specifications
- Board Type
- Electronic Control Assembly
- Compatibility
- SeQual Eclipse and Regalia Oxygen Concentrators
- Connector Type
- Edge Connector with 10 Pins
- ESD Protection
- true
- Operating Voltage
- 12
- Power Consumption
- 5W
Supporting evidence
No supporting documents or certifications provided.
Description
The SeQual 5003482 2AB06D10 PCB Electronic Assembly is a specialized printed circuit board designed for use in medical and industrial oxygen concentration equipment, such as SeQual's portable oxygen concentrators like the Eclipse series. This assembly features a compact yellow fiberglass board with surface-mounted components including capacitors, resistors, and inductors, arranged for efficient signal processing and control functions. It serves as an electronic control module, managing power distribution, sensor interfaces, and operational logic in oxygen therapy devices. Key benefits include high reliability in demanding environments, low power consumption, and compatibility with SeQual's modular systems, allowing for easy integration and maintenance. Compared to generic PCBs, this assembly offers superior durability with anti-static packaging to prevent ESD damage, making it ideal for healthcare applications where consistent performance is critical. Drawbacks may include limited availability due to its specialized nature and potential obsolescence in newer models. Applications span portable medical devices, industrial gas monitoring, and respiratory equipment. Overall, it provides precise control with robust construction, enhancing device efficiency and user safety over standard off-the-shelf boards.
