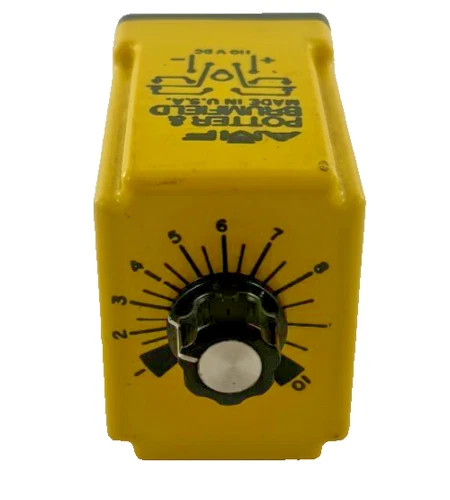

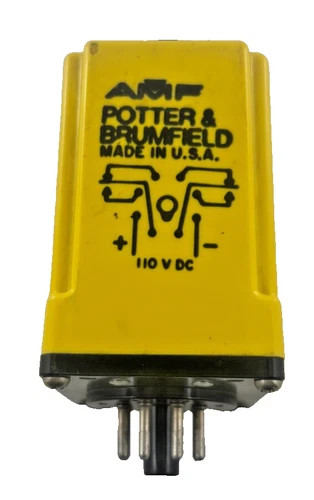

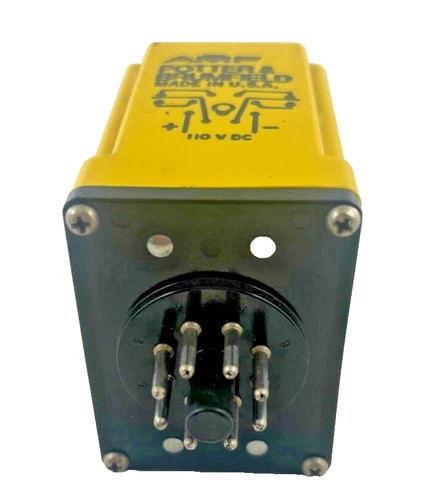

Potter & Brumfield CGD-38-69010S Time Delay Relay
Potter & Brumfield (now TE Connectivity)Model:CGD-38-69010S
Location unavailable
Relays
Qty:1
Condition: New
At a glance
- Product
- Potter & Brumfield CGD-38-69010S Time Delay Relay
- Manufacturer
- Potter & Brumfield (now TE Connectivity)
- Model
- CGD-38-69010S
- Category
- Relays
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Motor Control Center
- Listed on
Key specifications
- Certifications
- UL Recognized
- Coil Voltage
- 110V
- Contact Configuration
- DPDT (Double Pole Double Throw)
- Contact Rating
- 10 A at 120 VAC resistive
- Mounting Type
- Octal Plug-In
- Operating Mode
- Interval On (Delay on Make)
- Operating Temperature Range Max
- 55°C
- Operating Temperature Range Min
- -10°C
- Timing Range Max
- 10s
- Timing Range Min
- 1s
Supporting evidence
No supporting documents or certifications provided.
Description
The Potter & Brumfield CGD-38-69010S is a compact, adjustable time delay relay designed for interval-on operation, providing precise timing control in industrial automation and control systems. This relay features a knob-adjustable delay ranging from 1.0 to 10 seconds, making it ideal for applications requiring delayed activation, such as motor startups, process sequencing, or safety interlocks in manufacturing environments. Powered by a 110 VDC coil, it offers DPDT (Double Pole Double Throw) contacts rated at 10 amps for 120 VAC resistive loads, ensuring reliable switching of moderate power circuits. Key benefits include its plug-in design for easy installation and replacement, robust construction for durability in harsh industrial settings, and UL recognition for safety compliance. Compared to similar products like those from Omron or Schneider Electric, the CGD-38-69010S stands out for its vintage reliability and cost-effectiveness in legacy systems, though it may lack modern digital interfaces or extended timing ranges found in newer models. Drawbacks include potential obsolescence for parts and limited compatibility with AC-only systems. Overall, it's well-suited for HVAC controls, conveyor systems, and equipment timing where simplicity and adjustability are prioritized.
