Ohmite Custom 80M/75K/100 Kilovolt Divider Assembly
Ohmite Manufacturing CompanyModel:80M/75K/100 (Custom)
Location unavailable
Electrical Equipment
Qty:1
Condition: New
At a glance
- Product
- Ohmite Custom 80M/75K/100 Kilovolt Divider Assembly
- Manufacturer
- Ohmite Manufacturing Company
- Model
- 80M/75K/100 (Custom)
- Category
- Electrical Equipment
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Motor Control Center
- Listed on
Key specifications
- Accuracy
- 5
- Connection Type
- TB3 and TB4 screw terminals
- Maximum Voltage Rating
- 100V
- Operating Temperature Max
- 150°F
- Operating Temperature Min
- -55°F
- Resistance Value (Primary)
- 100MΩ
- Resistance Value (Secondary)
- 80M / 75KΩ
- Surge Protection
- MOV1 and MOV2 (Metal Oxide Varistors)
Supporting evidence
No supporting documents or certifications provided.
Description

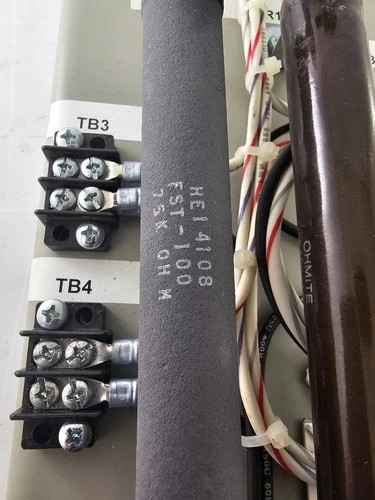

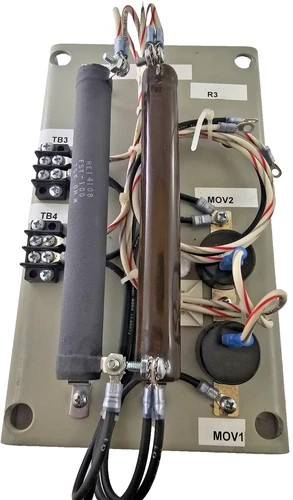

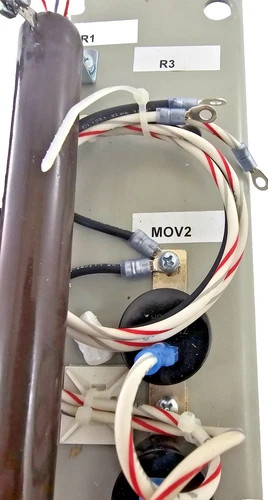

The Ohmite Custom 80M/75K/100 Kilovolt Divider Assembly is a specialized high-voltage resistive divider designed for precise voltage measurement and division in industrial and laboratory applications. This custom assembly features high-resistance components, including large cylindrical resistors labeled with values such as 75K ohms and 100M ohms, integrated with metal oxide varistors (MOVs) for surge protection and terminal blocks for secure connections. It is rated for up to 100 kV, making it suitable for high-voltage testing, power distribution systems, and electrical research environments where accurate voltage scaling is critical. Key benefits include robust construction for durability in harsh conditions, high accuracy in voltage division, and protection against transient overvoltages via MOV1 and MOV2. Compared to standard dividers, this custom unit offers tailored resistance ratios (e.g., 80M/75K) for specific applications, potentially improving measurement precision in custom setups. Drawbacks may include its custom nature limiting off-the-shelf availability and potential higher costs for maintenance. The assembly appears used based on image analysis, with visible wiring and labels indicating prior installation, but remains in functional condition without significant damage. Applications include HV testing equipment, capacitor banks, and power grid monitoring. For detailed specs, refer to Ohmite's high-voltage resistor datasheets.
