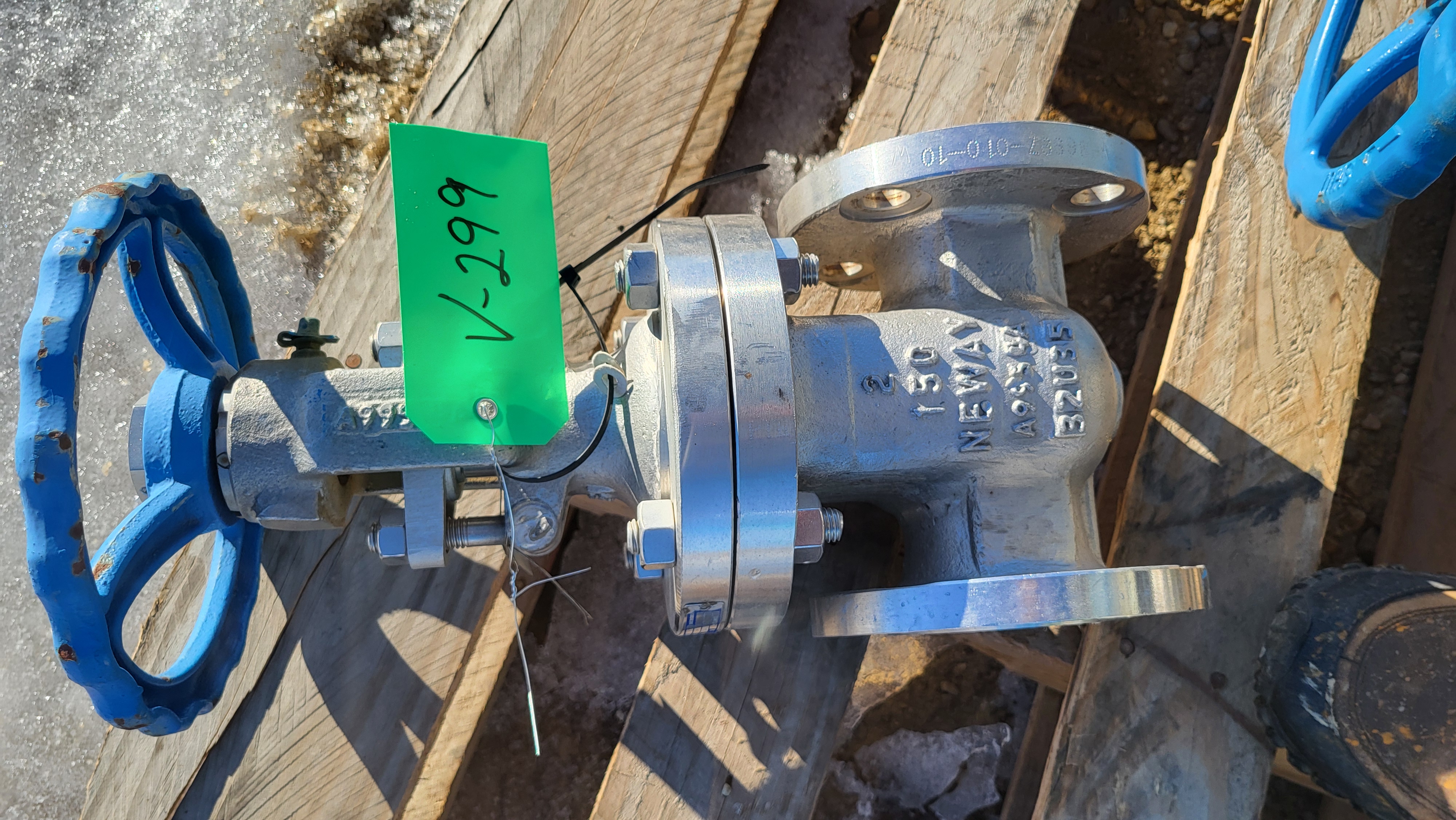

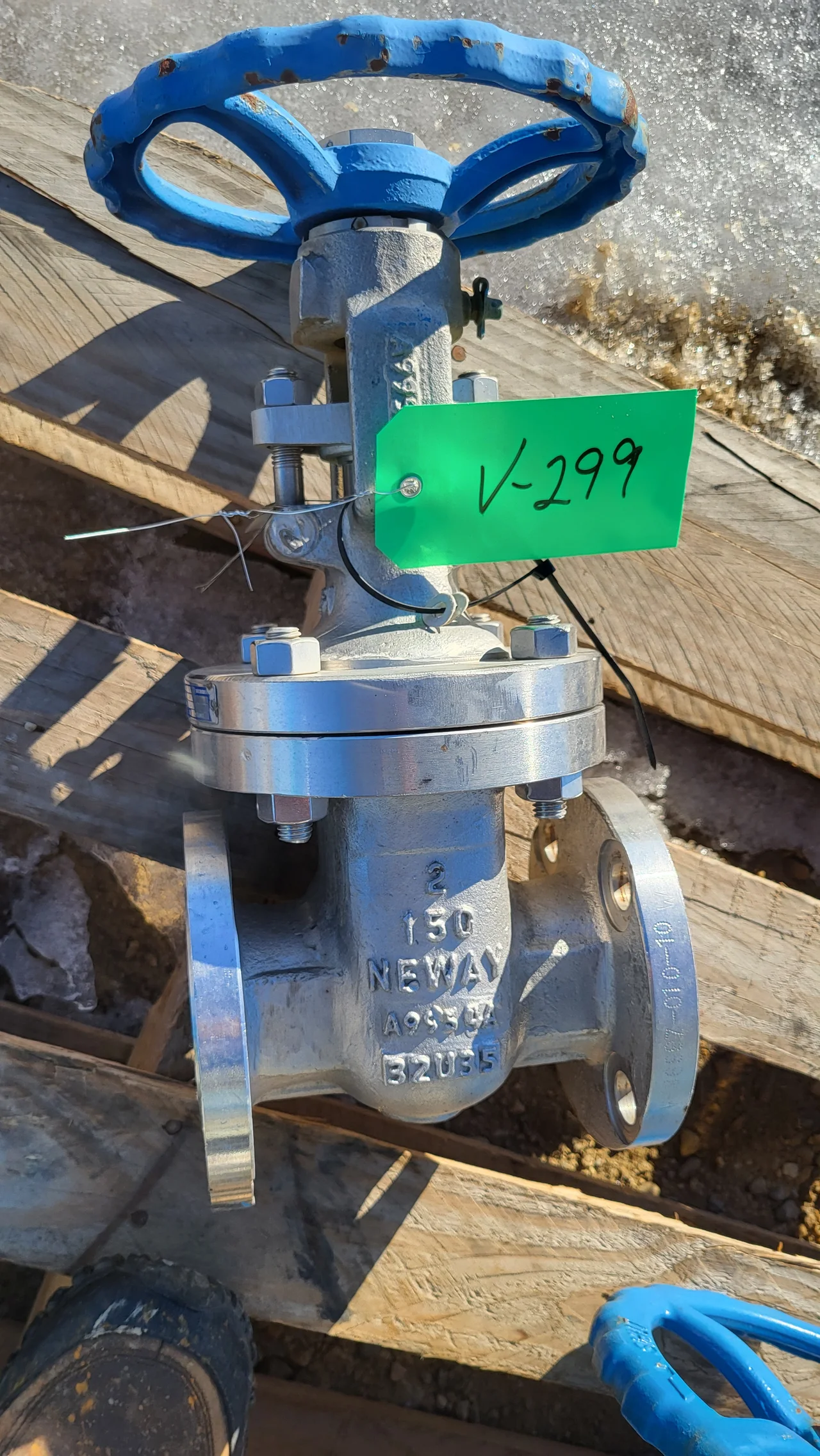

Neway 2-Inch Class 150 Stainless Steel Gate Valve Fig. No. G1RNF51/HFW-T-600
Neway Valve (Suzhou) Co., Ltd.Model:G1RNF51/HFW-T-600
Red Deer, AB
Gate Valve
Qty:1
Condition: New
At a glance
- Product
- Neway 2-Inch Class 150 Stainless Steel Gate Valve Fig. No. G1RNF51/HFW-T-600
- Manufacturer
- Neway Valve (Suzhou) Co., Ltd.
- Model
- G1RNF51/HFW-T-600
- Category
- Gate Valve
- Condition
- NEW
- Availability
- In stock
- Price or process
- Make an offer
- Quantity
- 1
- Lead time
- Not provided
- Location
- Red Deer, AB
- Fulfillment
- Pickup and shipping available
- Seller
- OTG
- Listed on
Key specifications
- Body Material
- A351 CF8M Stainless Steel
- Design Standard
- API 600, ASME B16.34
- Disc Material
- 316 Stainless Steel
- End Connection
- Raised Face Flanged (RF) per ANSI B16.5
- Maximum Operating Pressure
- 285bar
- Nominal Size
- 2in
- Pressure Class
- 150
- Seat Material
- 316 Stainless Steel + Hard Facing
- Stem Material
- 316 Stainless Steel
- Temperature Max
- 1000°F
- Temperature Min
- -20°F
Supporting evidence
No supporting documents or certifications provided.
Description
The Neway 2-Inch Class 150 Gate Valve, model Fig. No. G1RNF51/HFW-T-600, is a robust, stainless steel valve designed for reliable flow control in industrial applications such as oil and gas, petrochemical, water treatment, and power generation. Constructed with a body of A351 CF8M stainless steel, it offers excellent corrosion resistance and durability in harsh environments. Key features include a non-rising stem, handwheel operation, and raised face flanged connections compliant with ANSI B16.5 standards. This valve provides tight shutoff with its 316 stainless steel disc and hard-faced seat (316+HF), ensuring minimal leakage and long service life. Advantages over similar products include superior material quality for extended lifespan, easy maintenance with bolted bonnet design, and compliance with API 600 and ISO 9001 standards for quality assurance. Benefits include high pressure and temperature tolerance, reducing downtime in critical systems. Drawbacks may include higher initial cost compared to carbon steel alternatives and the need for periodic lubrication of the stem.
