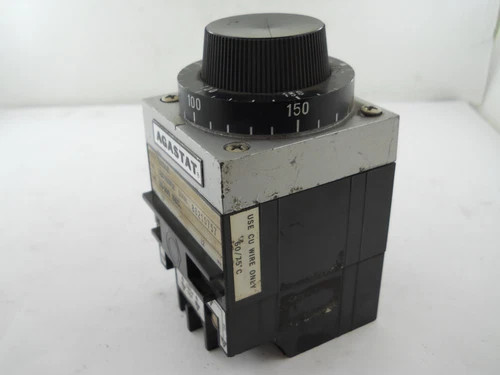

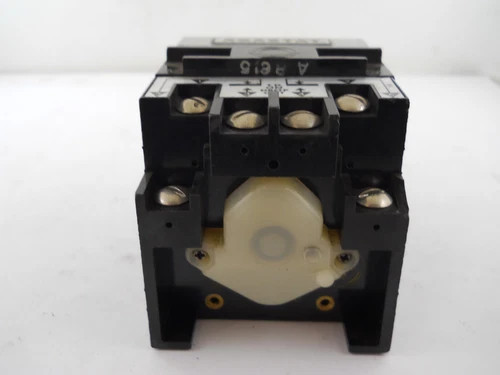

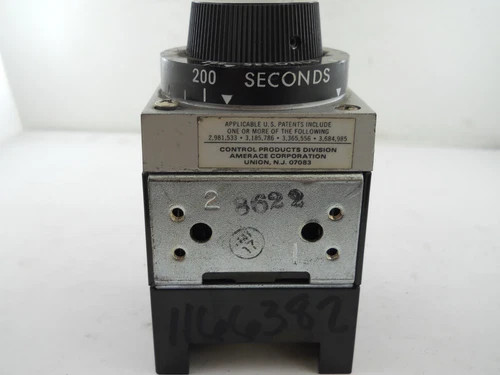

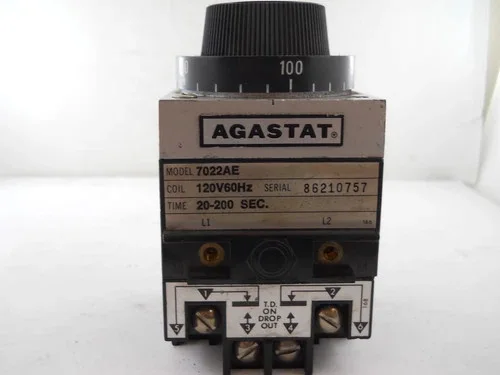

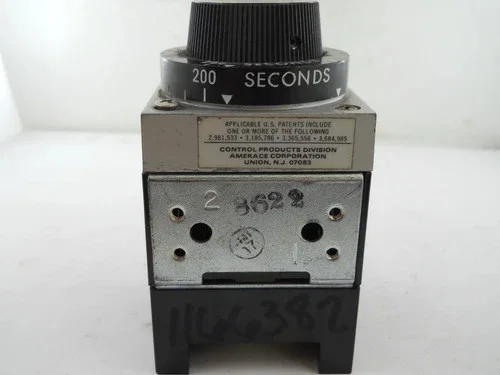

AGASTAT 7022AE Electropneumatic Timing Relay
Agastat (TE Connectivity)Model:7022AE
Location unavailable
Relays
Qty:1
Condition: New
At a glance
- Product
- AGASTAT 7022AE Electropneumatic Timing Relay
- Manufacturer
- Agastat (TE Connectivity)
- Model
- 7022AE
- Category
- Relays
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Motor Control Center
- Listed on
Key specifications
- Coil Voltage
- 120V
- Contact Configuration
- DPDT (Double Pole Double Throw)
- Contact Rating
- 10A at 120/240 VAC
- Frequency
- 60Hz
- Operating Temperature Max (°F)
- 150°F
- Operating Temperature Min (°F)
- 0°F
- Repeatability
- ±10%
- Reset Time
- 75s
- Timing Range Max
- 200s
- Timing Range Min
- 20s
Supporting evidence
No supporting documents or certifications provided.
Description
The AGASTAT 7022AE is a reliable electropneumatic off-delay timing relay designed for industrial control applications requiring precise timing functions. It features an adjustable timing range from 20 to 200 seconds, making it ideal for automation processes such as motor control, conveyor systems, and machine sequencing where delayed de-energization is needed. Powered by a 120 VAC, 60 Hz coil, it offers DPDT (Double Pole Double Throw) contact configuration for versatile switching. Key benefits include high repeatability with ±10% accuracy, robust construction for harsh environments, and easy dial adjustment for timing settings. Compared to solid-state timers, it provides superior resistance to electrical noise and surges, though it may require more maintenance due to its pneumatic mechanism. Drawbacks include larger size and mechanical wear over time. This model is commonly used in manufacturing, HVAC, and process control industries, ensuring safe and efficient operation by preventing premature equipment restarts.
