AGASTAT 7012BD Electropneumatic On-Delay Timing Relay

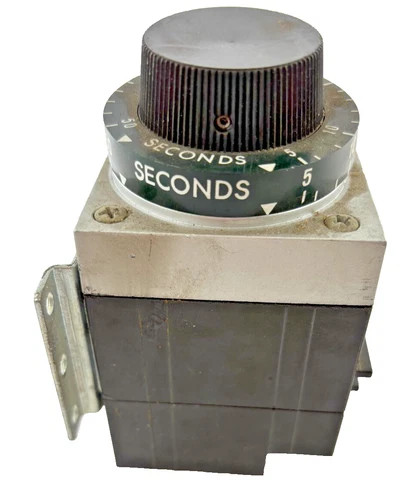

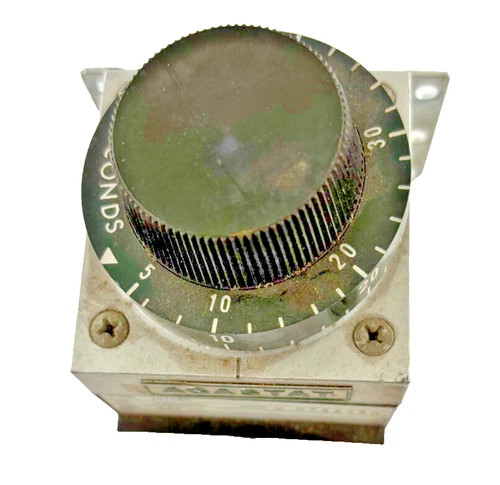

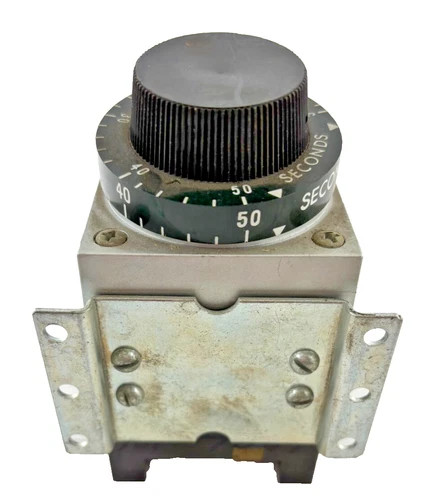

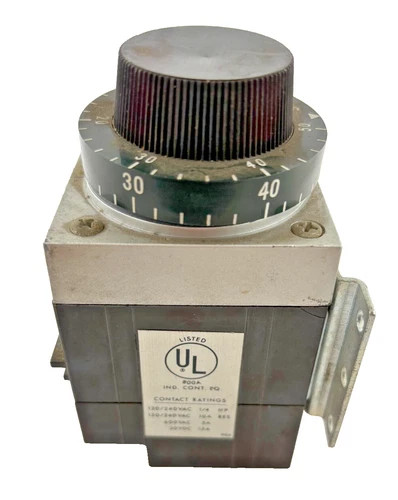

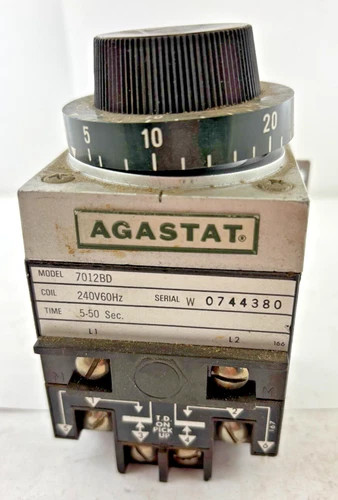

The AGASTAT 7012BD is a reliable electropneumatic on-delay timing relay designed for industrial control applications requiring precise timing functions. Manufactured by AGASTAT, a brand under TE Connectivity, this model features a adjustable timing range from 5 to 50 seconds, making it ideal for automation processes such as motor control, conveyor systems, and process timing in manufacturing environments. It operates on a 240V AC, 60Hz coil, providing robust performance with DPDT (Double Pole Double Throw) contacts rated for up to 10A at 240VAC. Key benefits include high repeatability and accuracy in timing, resistance to shock and vibration, and a compact design for easy panel mounting. Compared to electronic timers, the electropneumatic mechanism offers superior durability in harsh environments with electrical noise, though it may require more maintenance due to pneumatic components. Drawbacks include a limited timing range compared to programmable digital alternatives and higher power consumption. This unit appears used based on visible wear and dirt in images, with no attached accessories or child assets noted. Serial number W 07444380 is visible on the faceplate, along with UL listing for industrial control equipment. For detailed specs, refer to the AGASTAT 7000 Series datasheet available on TE Connectivity's website.
