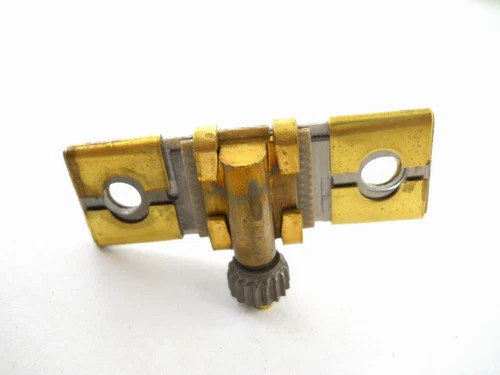

Square D B15.5 Overload Relay Thermal Unit
Square DModel:B15.5
Location unavailable
Electrical Equipment
Qty:1
Condition: New
At a glance
- Product
- Square D B15.5 Overload Relay Thermal Unit
- Manufacturer
- Square D
- Model
- B15.5
- Category
- Electrical Equipment
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Motor Control Center
- Listed on
Key specifications
- Ambient Temperature Max
- 60°F
- Ambient Temperature Min
- -40°F
- Full Load Amps (FLA) Max
- 9.59A
- Full Load Amps (FLA) Min
- 8.45A
- NEMA Size Compatibility
- Square D Class 9065 Overload Relays, NEMA Sizes 00, 0, 1, 2
- Trip Class
- 20
Supporting evidence
No supporting documents or certifications provided.
Description

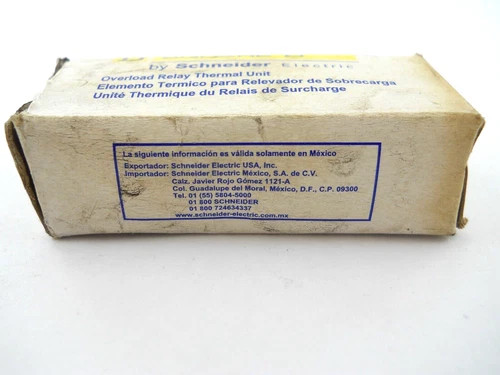

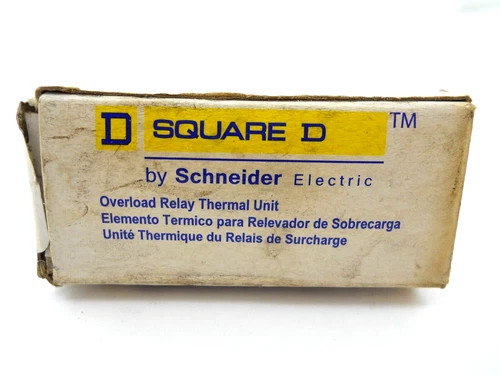

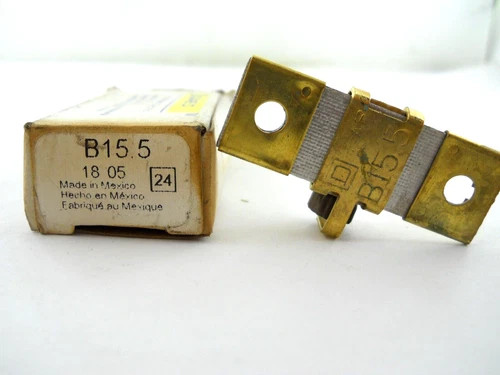

The Square D B15.5 Overload Relay Thermal Unit is a critical component designed for use in motor protection systems, specifically compatible with Square D Class 9065 overload relays. This thermal unit provides reliable overload protection by sensing excessive current and heat in motor circuits, preventing damage from prolonged overloads. It features a bimetallic element that bends under heat to trip the relay, offering precise protection tailored to motor full load amperage (FLA) ranges. Key applications include industrial motor starters in manufacturing, HVAC systems, and conveyor belts, where it ensures safe operation and extends equipment life. Advantages over similar products include Square D's reputation for durability, easy installation via plug-in design, and compatibility with a wide range of NEMA-sized starters. Benefits include cost-effective protection, quick response times, and reduced downtime. Drawbacks may include the need for exact sizing to motor FLA to avoid nuisance trips and limited reusability after tripping. This unit is brand new, as indicated by the packaging and condition in images, with no visible wear. The faceplate shows 'B15.5' markings, and it's made in Mexico with a possible date code of 18 05. No parent/child assets are attached. For resources, refer to Schneider Electric's official site: Thermal Unit Selection Guide (https://www.se.com/us/en/download/document/9065CT9801/) and Overload Relay Catalog (https://download.schneider-electric.com/files?p_enDocType=Catalog&p_File_Name=8536CT9701.pdf).
